Eagle Column Protectors

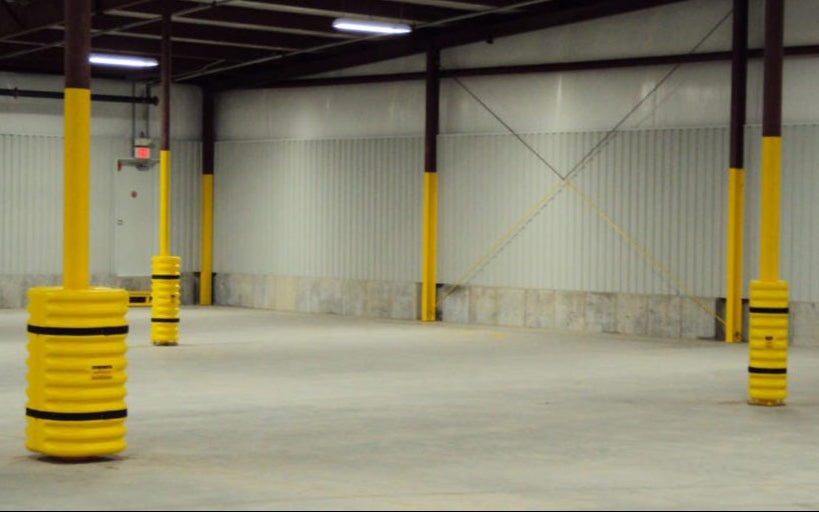

Blow-molded HDPE column guards that wrap around a building column in two halves and strap together with no tools, putting a highly visible barrier at the base of the column where forklifts and material handling equipment strike. They are sold as a lightweight, easy-to-install alternative to steel guarding, and because they strap on, they can be repositioned or replaced as the layout changes. The standard model is 42″ tall with a 24″ outside diameter, with square openings for 6″ to 12″ columns (which also fit round columns) and a 9″ round opening. A 24″ Short, a 6″ Slim and a Bolt Together model for 14″ to 18″ columns complete the range.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Order by the column the protector has to fit: the column width is the opening, and the square-opening models also fit round columns. Diameter is the outside of the protector, which is the floor space it takes. Yellow in every size; red is offered on the 24″ Short and orange on the 42″ standard.
| Type | Fits Column Width | Diameter (OD) | Height | Price | Qty | |
|---|---|---|---|---|---|---|
| Short | 6″ | 24″ | 24″ | Quote | ||
| Short | 8″ | 24″ | 24″ | Quote | ||
| Short | 10″ | 24″ | 24″ | Quote | ||
| Short | 12″ | 24″ | 24″ | Quote | ||
| Standard, square opening | 6″ | 24″ | 42″ | Quote | ||
| Standard, square opening | 8″ | 24″ | 42″ | Quote | ||
| Standard, square opening | 10″ | 24″ | 42″ | Quote | ||
| Standard, square opening | 12″ | 24″ | 42″ | Quote | ||
| Standard, round opening | 9″ | 24″ | 42″ | Quote | ||
| Slim | 6″ | 12″ | 42″ | Quote | ||
| Bolt Together | 14″ | 30″ | 42.75″ | Quote | ||
| Bolt Together | 16″ | 30″ | 42.75″ | Quote | ||
| Bolt Together | 18″ | 30″ | 42.75″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
Related products
A curved steel guard, 16-1/2″ high, that bolts to the floor against a building column, drain pipe or other fixed equipment. It comes prefabricated, so there is no welding or cutting on site, and the anchors sit inside the curve out of the way of traffic. The maker recommends a set of four to cover all sides of a column.
- Height: 16-1/2″
- Mounting: Two 5/8″ internal holes · 1/2″ anchors, not included
- Coverage: Set of four recommended for all sides of a column
- Construction: Prefabricated steel, no on-site welding or cutting
A tight-fit polymer column guard for square and rectangular building columns. Interlocking corner sections and expansion panels close onto all four sides of the column with a minimal footprint, and a step at the base encloses the column’s base plate to shield its fixings. Each guard covers an impact height of 0 to 20-1/2″, and guards stack to reach any height. The maker positions it for light impacts and glancing blows, and rates it at 1,600 J at a 90° approach, which it equates to a 2 US ton vehicle at 3 mph.
- Fits: Square and rectangular columns · built to size from corner sections and expansion panels
- Impact height: 0–20-1/2″ per guard; stack guards for more height
- Maker rating: 1,600 J at 90° · equivalent to 2 US ton at 3 mph
- Compression: 4″ at maximum energy
A polymer guardrail built around a column rather than onto it. The rails are set apart from the column, so a strike is absorbed by the barrier and kept away from the structure. It fits columns of any size and section, square, rectangular, round or irregular, and can be supplied as a two- or three-sided unit for corner columns or columns against a wall. Rails and posts can be replaced in place without taking the rest of the guard apart. The maker rates the rail at 5,800 J at 90° on 59″ post centres, which it equates to a 2.5 US ton vehicle at 5 mph.
- Fits: Any column shape or size · full, two- or three-sided
- Rails: 4″ diameter polymer rails, stood off from the column
- Posts: 44-4/7″ high on a 7″ × 7″ base
- Maker rating: 5,800 J at 90° on 59″ post centres · equivalent to 2.5 US ton at 5 mph
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
