Product Catalog

A patented longitudinal flue space divider that maintains consistent flue spacing and prevents pallet push-through.

• Sizes: 12″ · 18″ · 24″
• Install: Tek screws included

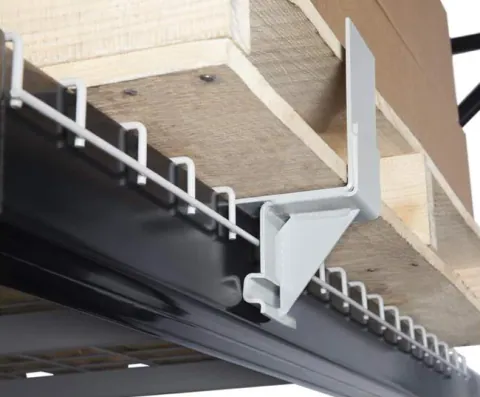

The single-stop version of Flue Guard™. It mounts on one pallet rack beam instead of spanning a back-to-back pair, and stops pallets before they can be pushed through into the flue space. Stocked with a 3″ base flange in standard gray powder coat.

• Configuration: Single stop, mounts on one beam
• Stock size: 3″ base flange

The original transverse flue space keeper, designed to keep boxes from encroaching into the transverse flue space so sprinkler water can penetrate the pallet rack. The brackets also act as pallet safety stops at various elevations and install quickly on all major rack brands (US Patent #7,857,152).

• Standard size: 42″ × 3″
• Flue space: 3″ on each side of the post (6″ total)
• Members: Heavy-duty tube for frames up to 48″ (custom available)
• Function: Pallet safety stop at pallet or product levels

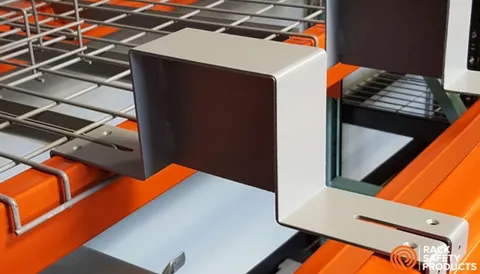

The heavy-duty version of the back-to-back Flue Guard™: the same double stop that holds the longitudinal flue open between rows, with an angle-iron brace along the bottom for heavier pallet loads than the standard stop is built for. Made to order to your flue width and beam.

• Configuration: Double stop, spans a back-to-back pair of beams
• Reinforcement: Angle-iron brace along the bottom
• Sizing: Made to order to your flue width and row spacer

The heavy-duty version of the single-sided Flue Guard™. It mounts on one beam like the standard single stop, with a perpendicular brace down the side for heavier pallets and harder pushes than the standard unit is built for. Made to order; base flange to suit your beam.

• Configuration: Single stop, mounts on one beam
• Reinforcement: Perpendicular brace down the side
• Sizing: Made to order; base flange to suit your beam

A single-sided Flue Guard™ built for structural pallet rack: a heavy steel plate stop rather than the formed standard unit, for the loads and beam sections structural rack carries. Made to order to your beam.

• Configuration: Single stop, mounts on one beam
• Construction: Heavy steel plate
• For: Structural pallet rack

A pallet rack flue-space protector that we hold in stock. Details, sizes and photos are being added; ask us and we will send what we have.

• Availability: In stock
• Details: Ask us for the current spec sheet

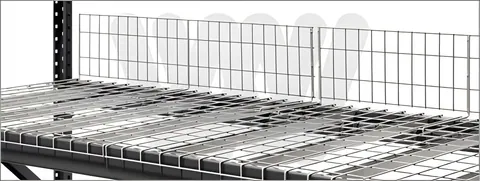

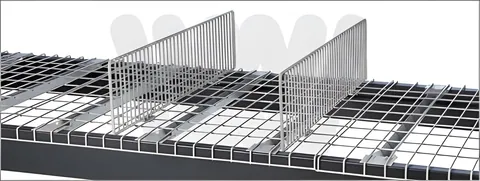

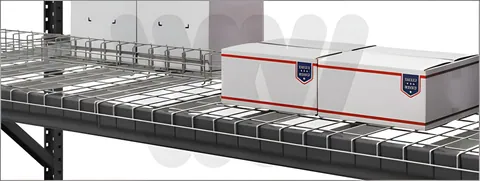

A wire mesh divider that stands up from a wire deck along the flue line, holding the transverse flue open between hand-stacked loads the way a flue keeper does at the post, and splitting the deck down the center so it can be picked from both aisles. Adds to new or existing wire mesh decking; custom sizes available.

• Type: Wire mesh divider
• Holds: Transverse flue line across a wire deck
• Also does: Divides the deck for two-aisle picking
• Application: New or existing wire mesh decking

Waterfall wire mesh decking with a flared channel, the flared end is welded to the wire for a clean, snag-free fit. Drops onto rack beams with no hardware, lets light and sprinkler water through, and far outperforms wood for strength and fire-code compliance.

• Mesh pattern: 2-1/2″ × 4″ × 6 ga.
• Mesh options: 1″ × 4″ and 2″ × 4″ also available
• Support channel: 14 or 16 ga.
• Fits: Most pallet rack beams

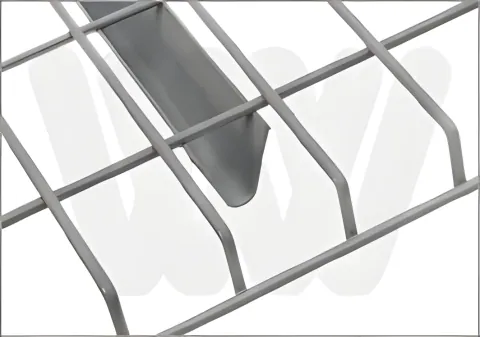

Waterfall wire mesh decking with a step channel sized to fit a 1-5/8″ step beam (other step heights available). No-hardware install, open mesh for light and sprinkler flow, and the strength and fire-code benefits of steel over wood.

• Mesh pattern: 2-1/2″ × 4″ × 6 ga.
• Mesh options: 1″ × 4″ and 2″ × 4″ also available
• Support channel: 14 or 16 ga.
• Fits step beam: 1-5/8″ (others avail.)

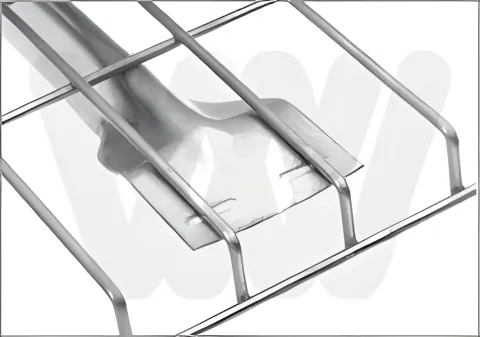

Waterfall wire decking with the flared channel inverted so it faces down, designed for food-grade storage by keeping debris from collecting in the channel. Flared end welded to wire; drops onto beams with no hardware.

• Mesh pattern: 2-1/2″ × 4″ × 6 ga.
• Mesh options: 1″ × 4″ and 2″ × 4″ also available
• Support channel: 14 or 16 ga.
• Food-grade: Inverted channel, designed for food-grade storage

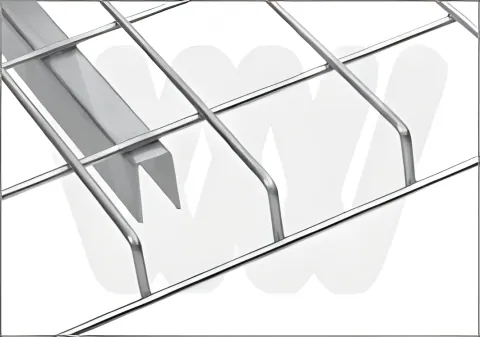

Waterfall wire decking with the step channel inverted for food-grade storage, the inverted channel prevents collection of food or debris, making it ideal for food and beverage racking. No-hardware install on step beams.

• Mesh pattern: 2-1/2″ × 4″ × 6 ga.
• Mesh options: 1″ × 4″ and 2″ × 4″ also available
• Support channel: 14 or 16 ga.
• Food-grade: Inverted channel, designed for food-grade storage

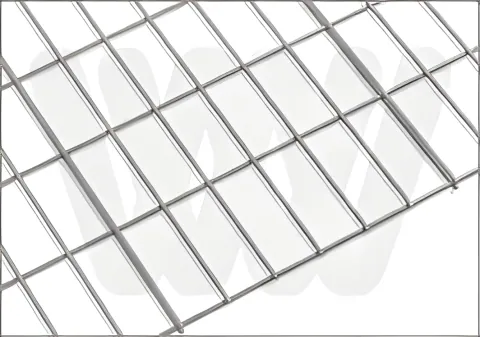

Waterfall wire decking sized for bulk and boltless rack with hand-loading applications. The open welded-wire surface supports small cartons and loose items while keeping light and sprinkler flow open, with the strength and fire-code edge of steel over particleboard.

• Mesh pattern: 2-1/2″ × 4″ × 6 ga.
• Mesh options: 1″ × 4″ and 2″ × 4″ also available
• Support channel: 14 or 16 ga.
• Best for: Hand-loading / bulk rack

A patented single-piece punched steel deck that is smoother, flatter and stronger than wire mesh. The flat surface won't snag or tear items, the flush design keeps the beam face clear for labeling, and the punched open area lets sprinkler water, air and light pass to lower levels.

• Open surface area: 50% open
• Load capacity: Up to 250 lbs./sq. ft. (UDL) — varies with profile, length and gauge
• Patents: U.S. 8,919,585 · U.S. 9,376,809
• Construction: Punched-style steel, single piece

A patented punched steel deck that drops onto step beams flush, with no waterfall edge to block labeling or bar codes on the beam face. Repeating corrugations give uniform strength across the shelf while the punched openings let sprinkler water, air and light pass to lower levels. The manufacturer holds an FM Approvals certificate for Punch Deck under Class 6914, which tests a deck as equivalent to 70% open area for sprinkler design.

• Open surface area: 50% open for common rack sizes; FM-tested as equal to 70%
• Construction: Punched corrugated steel panels, overlapped at joints · galvanized
• Load capacity: 250 lbs./sq. ft. (Model 301 at 36″) down to 50 lbs./sq. ft. at 72″
• Load basis: UDL · span/180 max deflection · 24 KSI max steel stress

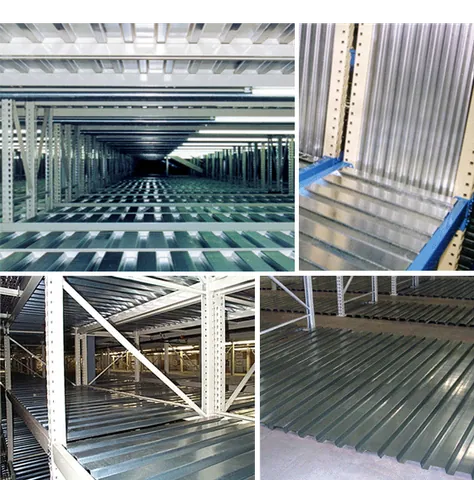

A solid corrugated steel deck with a 1-1/2″ box-rib profile that sits flush with the beam top for a smooth, seamless surface product slides on and off cleanly. Stronger than wood and less costly than both wood and wire, it spans front-to-back in one piece for long or heavy hand-stack loads. Galvanized or painted, sized to fit any standard rack.

• Construction: Solid corrugated steel · 1-1/2″ box rib (B deck)
• Gauge: 18, 20 or 22 gauge
• Load capacity: Up to 666 lbs./sq. ft. (UDL), 18 ga at 36″ depth
• Load basis: UDL at 20,000 PSI steel stress; no deflection limit published

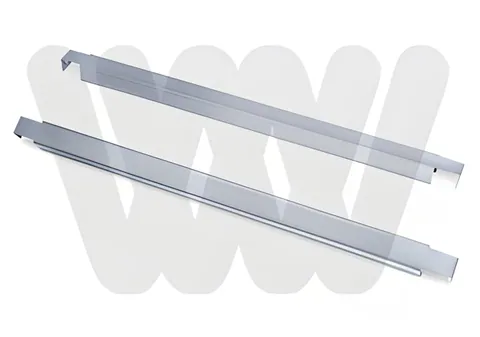

A World XBar pallet support bar, also called a pallet rack cross bar, whose double-flanged design lays on top of the rack beam — which the manufacturer says helps reduce beam spread. Drops in place for easy installation and adds support under full-pallet loads where full wire-deck coverage isn't required. The manufacturer publishes no load rating for the World XBar range, so if the bar is carrying load in your calculation, get the figure on the quote.

• Style: Double flanged, lays on top of beam
• Material: 16 ga. steel, four-corner roll-formed
• Fits: All 1-5/8″ step beams
• Finish: Galvanized standard (optional powder coat)

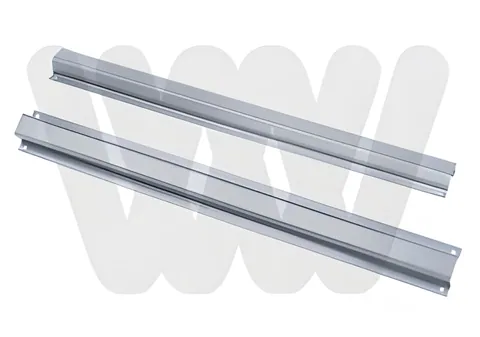

A flush-fit World XBar pallet support bar (cross bar) for 1-5/8″ step beams, and the most cost-effective World XBar option. The flush design keeps the beam face clear for labels, with Tek screw installation recommended.

• Style: Hat / flush fit
• Material: 16 ga. steel, four-corner roll-formed
• Fits: 1-5/8″ step beams
• Finish: Galvanized standard (optional powder coat)

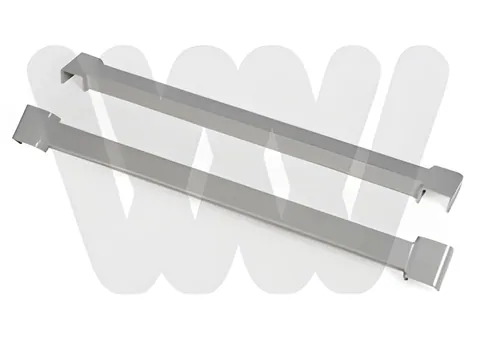

A heavy-duty World XBar pallet support bar (cross bar) designed for structural-style beams, built with a 1/4″-thick welded cuff design. Drops in place for easy installation and ships standard with a durable powder coat finish.

• Style: Structural, welded cuff
• Cuff thickness: 1/4″ thick
• Material: 16 ga. steel, four-corner roll-formed
• Fits: Structural-style beams

The manufacturer's most popular post protector for reach-truck applications, shielding rack uprights from forklift impacts. The 4″-high V-nose is built from 5/16″-thick steel to absorb outrigger impact and mounts above the footplate with a 3/4″-diameter floor anchor.

• Height: 4″ high (fits under low beam levels)
• Construction: 5/16″-thick steel
• Fits: 3″-wide rack columns (others available)
• Mounting: 3/4″-dia. floor anchor (sold separately)

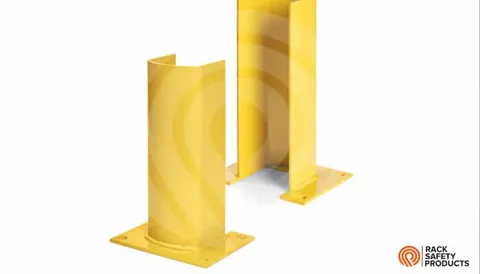

A floor-mounted pallet rack column guard that protects the bottom portion of the frame where most outrigger and forklift damage occurs. Built from 3/16″-thick steel and available in 12″, 18″ or 24″ heights to suit different exposure levels.

• Mount: Floor-mounted
• Construction: 3/16″-thick steel
• Footplate: 6″ × 7-3/4″ with (4) 5/8″-dia. anchor holes
• Heights: 12″ · 18″ · 24″

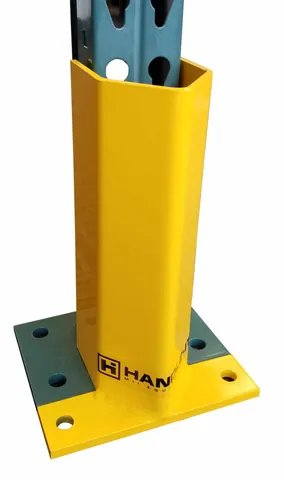

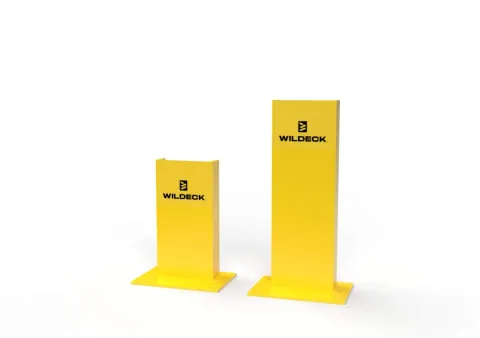

A floor-mounted steel upright protector that shields the base of the rack frame where forklift and pallet-jack strikes concentrate. Built from heavy 5-gauge steel with a V-face and anchored to the slab on a four-hole plate. Available in 12″, 18″ and 24″ heights across a range of column widths, powder-coated safety yellow.

• Mount: Floor-mounted · (4) 1/2″-dia. wedge anchors
• Construction: 5-gauge steel, V-face
• Heights: 12″ · 18″ · 24″
• Fits: 4.5″–8.5″ inside width (all uprights & baseplates)

A low-profile upright protector engineered to fit over oversized seismic baseplates, installing over the top of the baseplate rather than surrounding it — which keeps it from eating aisle floor space. Steel V-face on a heavy two-anchor mounting plate, powder-coated safety yellow.

• Mount: Floor-mounted · 2-anchor mounting plate
• Construction: Steel, V-face
• Height: 12″
• Inside width: 3-1/4″ or 4-1/4″

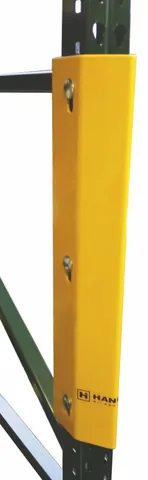

A slim steel deflector that bolts directly into the accessory holes on the rack upright, so no floor anchoring or drilling is required. It adds steel exactly where impacts land, and comes off again without leaving anchor holes in your slab. Powder-coated safety yellow.

• Mount: Bolt-on to upright accessory holes (no floor anchors)
• Construction: Slim-profile steel
• Heights: 12″ · 24″
• Models: BP-12 (8 lb) · BP-24 (16 lb)

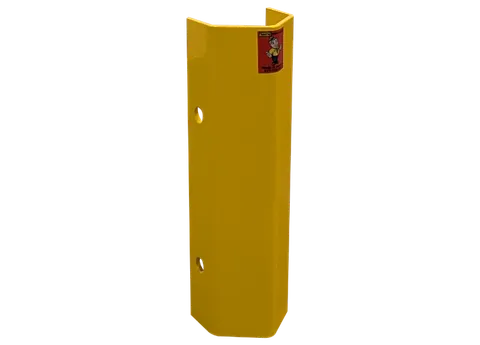

A post protector that bolts to the sides of the upright rather than the floor, so it can be fitted at any beam level instead of only at the base. Formed from 3/16″ steel in 12″ and 24″ heights, it suits bays where a floor-anchored guard would foul pallet placement or where damage is occurring above the first beam. Clearances cover standard 3-1/8″ and 4.1″ columns plus a Mecalux-specific 3.25″ option.

• Height: 12″ or 24″
• Construction: 3/16″-thick steel
• Clearances: 3-1/8″ · 3.25″ (Mecalux) · 4.1″
• Mounting: Bolts to upright sides, no floor anchor

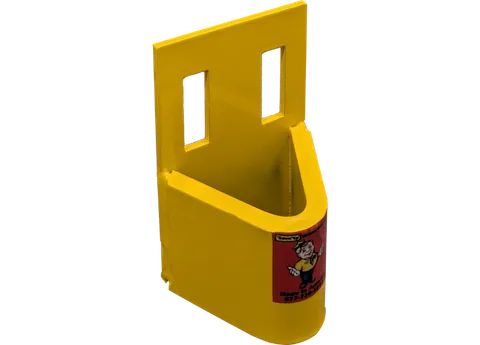

A low 4″-high guard sized for the outrigger legs of a reach truck, which strike the column far below the first beam. Available in 1/4″ or 3/8″ steel and fixed with a single floor anchor, it stays under low beam levels where a taller protector will not fit. An optional plastic cap closes the top for food-grade and sanitary environments where an open section would trap debris.

• Height: 4″ (fits under low beam levels)
• Construction: 1/4″ or 3/8″ steel
• Clearances: 3.25″ or 5.5″
• Mounting: Single floor anchor (sold separately)

A 5″-high outrigger guard in heavy 3/8″ steel that bolts straight to the rack face and needs no floor anchoring at all. Skipping the concrete work makes it the fastest option to retrofit across a large number of bays, and the only one that can be moved later without leaving anchor holes in the slab. The trade-off is that impact loads transfer into the upright rather than the floor.

• Height: 5″
• Construction: 3/8″-thick steel
• Clearance: 3″
• Mounting: Bolts to rack face, no floor anchoring

A 12″-high, 9″-deep guard that anchors both in front of and behind the upright, leaving no baseplate projecting into the aisle. Because nothing protrudes past the frame line, it avoids the trip hazard and pallet-jack snag that a conventional footplate creates in a busy pick aisle. Built from 3/16″ steel with a 5″ clear opening.

• Height: 12″
• Depth: 9″
• Clear opening: 5″
• Construction: 3/16″-thick steel

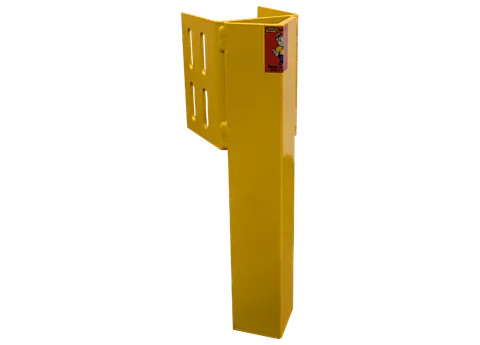

A side-bolting protector slotted to clear rack hardware where the first beam level is set high off the floor. In that configuration the exposed run of column is longer than a standard base guard covers, so the protector mounts higher up the upright instead. Formed from 3/16″ steel with a 4.25″ clear opening; an optional plastic cap suits food-grade areas.

• Height: 12″
• Clear opening: 4.25″
• Clearance: 3″
• Construction: 3/16″-thick steel

A 16″-high guard in 1/4″ steel with a closed top, sized for narrow-aisle bays where a wide footplate would eat into the working aisle. The closed top is the reason it is specified in food and pharmaceutical facilities: there is no open section for dust, water or product debris to collect in, so it washes down cleanly. Fits structural and open-back frames, and mounts to the rack face or the floor.

• Height: 16″
• Construction: 1/4″-thick steel, closed top
• Clearance: 3″
• Frame fit: Structural · Open Back

A curved 3/16″ steel plate welded to a heavy base, shaped so a glancing forklift hit is deflected around the column instead of stopping against it. The 8-1/4″ × 6″ × 1/4″ baseplate is punched at all four corners for 1/2″ anchors, and the 5-1/4″ × 4″ inset clears rack posts up to 5″ wide. Supplied in 12″, 18″ and 24″ heights, powder-coated safety yellow.

• Heights: 12″ · 18″ · 24″ (custom on request)
• Construction: 3/16″ curved steel plate, welded base
• Base plate: 8-1/4″ × 6″ × 1/4″ steel
• Fits: Rack posts up to 5″ wide

The wide-inset version of the crescent protector, built identically in 3/16″ steel on the same 8-1/4″ × 6″ × 1/4″ base but opened out to an 8-1/4″ × 4″ inset. That extra width is what lets it fit heavy structural uprights and deep-column frames up to 8″ wide, which the standard crescent will not clear. Same 12″, 18″ and 24″ heights and the same anchor pattern.

• Heights: 12″ · 18″ · 24″ (custom on request)
• Construction: 3/16″ curved steel plate, welded base
• Base plate: 8-1/4″ × 6″ × 1/4″ steel
• Fits: Rack posts up to 8″ wide

A structural steel channel on a four-hole base plate that sits in front of an in-aisle rack upright and takes the forklift, hand-truck or cart strike instead. Made for 3″ and 4″ uprights in 12″, 18″, 24″ and 36″ heights. The manufacturer recommends its optional flush-head anchors so the bolt heads don't catch truck tires.

• Fits: 3″ or 4″ wide rack uprights
• Heights: 12″ · 18″ · 24″ · 36″
• Base plate: 8″ × 6″ (3″ model) · 9″ × 6″ (4″ model)
• Construction: Structural steel channel

A heavy end-of-aisle rack protector for severe environments and high-traffic intersecting aisles, protecting the entire depth of the upright where most damage occurs. Built with 5/16″-thick construction on a pre-punched angle base and available in right, left or double-end designs.

• Height: 12″ tall
• Construction: 5/16″-thick steel
• Base: 5″ × 3″ × 7/16″-thick steel angle, pre-punched
• Mounting: 3/4″-dia. anchors (sold separately)

A 5 mm steel guard that wraps the exposed corner of an end-of-row upright, doorway or wall corner to take the brunt of forklift strikes. Floor-mounted on an 8″ × 8″ base plate with three 1/2″ wedge anchors, it leaves a 6″ × 6″ clearance around the column. Available in 12″, 18″, 24″ and 42″ heights, powder-coated safety yellow.

• Mount: Floor-mounted · (3) 1/2″-dia. wedge anchors
• Construction: 5 mm (1/5″) thick steel
• Heights: 12″ · 18″ · 24″ · 42″
• Base plate: 8″ × 8″ (6″ × 6″ inside clearance)

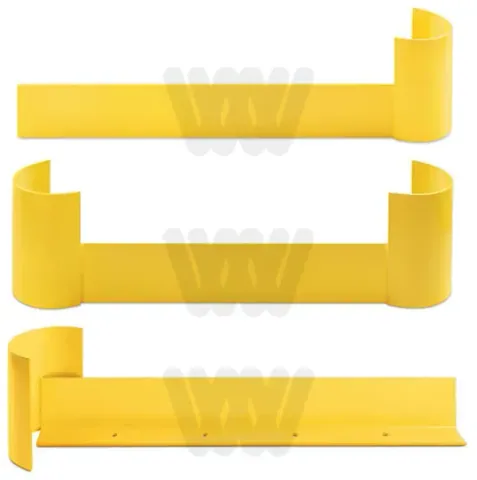

A floor-mounted guard that runs the depth of the end frame and curves outward into the aisle, taking the hit before a truck reaches the upright. Standard duty is an 8″ upright on 5″ × 3″ angle in 1/4″ steel; heavy duty steps up to a 12″ upright on 6″ × 4″ angle in 1/2″ steel for intersecting aisles and high-traffic ends. Ordered left, right or double-sided in 42″ and 48″ lengths.

• Lengths: 42″ · 48″
• Configurations: Left · Right · Double
• Standard duty: 8″ upright · 5″ × 3″ angle · 1/4″ steel
• Heavy duty: 12″ upright · 6″ × 4″ angle · 1/2″ steel

A low-profile end guard built from 4.5″ OD Schedule 40 pipe with welded end caps, standing only 5″ tall. The round face turns a square-on strike into a deflection, and the low height keeps it clear of pallet overhang at the first beam level. Bolted to the floor in 36″, 42″ and 48″ lengths.

• Height: 5″ (low profile)
• Construction: Schedule 40 pipe, 4.5″ OD, welded caps
• Lengths: 36″ · 42″ · 48″
• Mounting: Floor-bolted

The heaviest end guard in the range, formed from 3/8″ steel for very narrow aisle operations, where wire-guided trucks, order pickers and AGVs run within inches of the frame at speed and an end-of-row strike carries far more energy than in a conventional aisle. Its square-end profile saves up to 5″ of aisle space against a conventional end guard. Left, right or double-ended, in 42″ and 48″ lengths, anchored with 3/4″ wedge anchors.

• Construction: 3/8″ steel
• Lengths: 42″ · 48″
• Configurations: Left · Right · Double-ended
• Aisle saving: Up to 5″ against a conventional end guard

An end-of-aisle guard with a notched profile that nests in close to the rack frame, so it protects the row end without taking the floor space a conventional end guard needs. At 12″ high it stays below the first beam and does not block the first pallet position. Heavy-duty 3/8″ steel, installed around the rack legs at the end of the aisle.

• Construction: Heavy-duty 3/8″ steel
• Profile: Notched to nest close to the frame
• Height: 12″ low profile; does not block the first pallet bay
• Install: Around the rack legs at the end of the aisle

A row-end protector with a 12″-high, 3/8″ steel crescent welded to an L5″ × 3″ × 1/4″ structural floor angle, wrapping the end frame from the aisle side. Single-sided suits a row end against a wall or flue; double-sided is used where aisles intersect and impact can come from either direction. Note that right- and left-hand crescents must be ordered as pairs.

• Crescent: 12″ high, 3/8″ steel
• Floor angle: L5″ × 3″ × 1/4″ structural steel
• Single-sided: 24″ · 42″ · 48″ · 54″
• Double-sided: 42″ · 48″

A bolt-together end-of-aisle protector: a 1/4″ steel floor angle with an 8″ protector head on one or both ends, sized for 42″ or 48″ rack bays. Because the heads bolt on rather than being welded, the same angle makes a left, right or double-head unit, and heads and angles are sold separately as replacement parts. It is the medium-duty, lower-cost option to the XT, built in Wisconsin and shipped with anchors.

• Protector head: 8″ H × 1/4″ thick, bolted (1/2″ × 1-1/2″ bolts included)
• Floor angle: 3.5″ W × 6″ H × 1/4″ thick
• Anchors: 1/2″ × 5″, included (3 per kit)
• Rack bays: 42″ or 48″ wide; custom sizes available

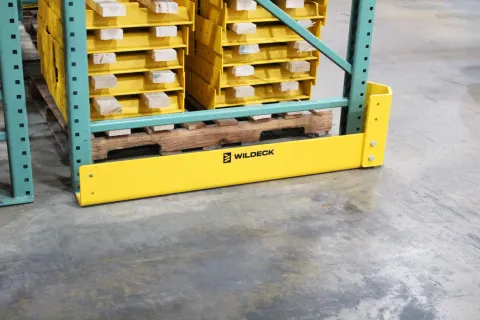

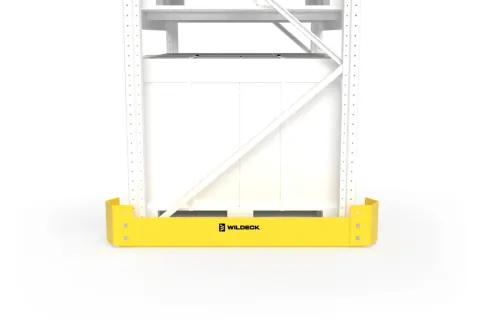

The heavy version of the Wilgard bolt-together end-of-aisle protector: 1/2″-thick structural steel throughout, with a 12″ head on a 4″ × 6″ floor angle, for high-traffic row ends. Bolt the head to either end, or both, for left, right or double-head protection on 42″ or 48″ bays; heads and angles are also sold separately as replacement parts. Built in Wisconsin and shipped with anchors.

• Protector head: 12″ H × 1/2″ thick, bolted (1/2″ × 2″ bolts included)
• Floor angle: 4″ W × 6″ H × 1/2″ thick
• Anchors: 3/4″ × 6″ screw anchors, included (3 per kit)
• Rack bays: 42″ or 48″ wide; custom sizes available

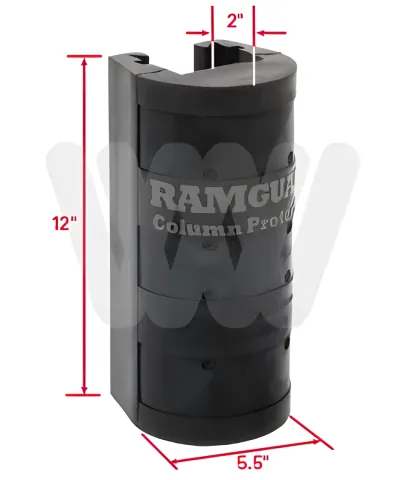

A column protection guard with a patented hybrid design of rubber elastomers and steel, combining the impact absorption of rubber with the durability of steel. The manufacturer's own frontal-impact data claims the elastic compound and U-shaped steel insert cut peak column stress by as much as 72%, and the 12″-tall guard installs with no hardware over the footplate to protect both front and side impacts.

• Size: 12″ tall × 5-1/2″ wide (5″ tall version available)
• Design: Hybrid rubber elastomer + U-shaped steel insert
• Performance: Up to 72% lower peak column stress in frontal impact (manufacturer-stated)
• Fits: Roll-formed or structural columns, 3″ wide and up to 3″ deep

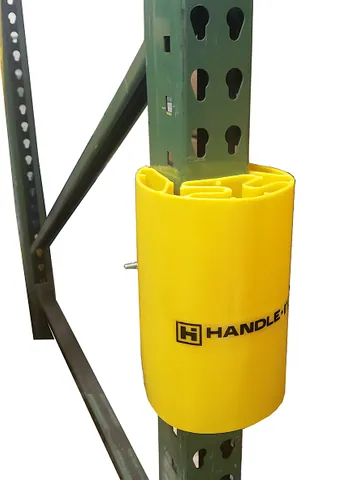

A molded high-density-polyethylene guard that snaps onto the upright, for bays where a steel guard is more than the traffic warrants. The color runs through the plastic, so there is no paint to flake or chip, and a backside bolt tightens it to the column to stop it sliding. Stands 9″ tall to fit 3″×3″ posts in safety yellow.

• Material: HDPE / high-density polyethylene
• Mount: Snap-on · backside bolt to secure
• Height: 9″
• Fits: 3″×3″ upright posts

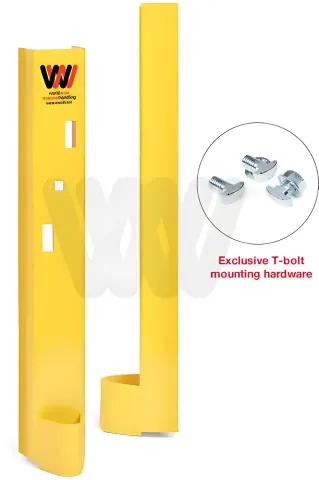

WorldGuard is a pallet rack frame protector that reinforces and protects the column at the same time. The 24″-tall, 3/16″-thick channel mounts tightly around the column with a bull-nose deflector that pushes forklifts away from the frame; it installs from the front of the rack using the manufacturer's exclusive T-bolt hardware.

• Size: 24″ tall × 3-1/2″ wide
• Thickness: 3/16″ steel
• Deflector: 3″ high × 5/16″ bull-nose
• Fit: Universally punched for all rack brands (3″ cols; 4″ avail.)

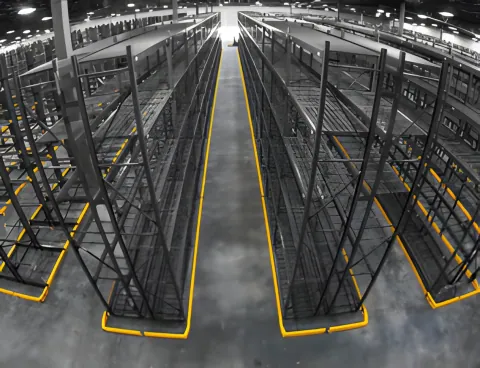

A continuous run of 5″ × 3″ × 1/4″ structural angle bolted to the slab along the base of a rack row, wall or partition. Rather than guarding a single upright, it takes glancing contact along the whole length and steers the truck back into the aisle, which is what makes it useful in front of pallet flow rails and in-plant offices. Supplied in lengths up to 20 feet.

• Material: 5″ × 3″ × 1/4″ structural angle steel
• Lengths: Up to 20 ft standard
• Protects: Rack supports · pallet flow rails · walls · offices · partitions
• Function: Continuous deflection along a run, not a single post

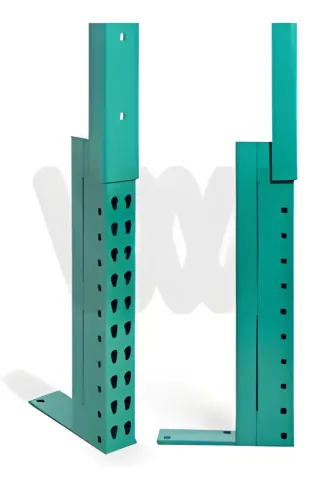

The standard single-column repair kit for the most common forklift damage at the front column. Built from 10 ga. steel with all-bolted Grade 5 installation that eliminates welding, and 1/4″-thick connection channels for a rigid repair.

• Construction: 10 ga. steel
• Stock seat heights: 24″ to 84″ in 12″ increments (overall = seat + 9″)
• Connection: 1/4″-thick channels, all-bolted Grade 5 hardware (no welding)
• Footplate: 4″ × 12″ × 5/16″-thick, two 3/4″-dia. anchors

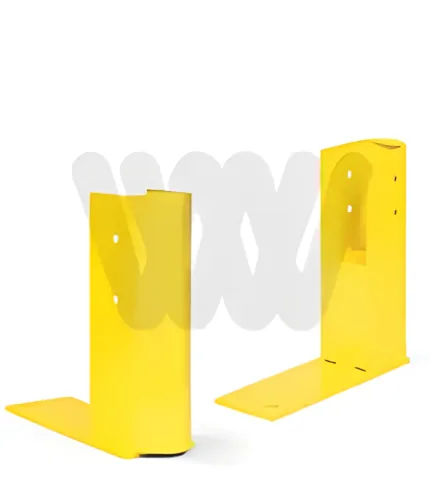

The S repair kit upgraded with a 1/4″-thick × 12″-high V-nose deflector for increased defense against future forklift damage. Shares all the features of the S kit, 10 ga. steel, all-bolted Grade 5 installation and rigid 1/4″ connection channels.

• Base kit: All S features
• Deflector: 1/4″-thick × 12″ high V-nose
• Construction: 10 ga. steel
• Connection: 1/4″-thick channels, all-bolted Grade 5 (no welding)

A compact 6″ repair kit fitted with a 12″ deflector to repair damage and prevent future impact. Built from 1/4″-thick steel with all-bolted installation, making it a quick fix for lower front-column damage.

• Design: 6″ repair kit with 12″ deflector
• Construction: 1/4″-thick steel
• Footplate: 4″ × 12″
• Mounting: Two 3/4″ × 4″ anchors, all-bolted

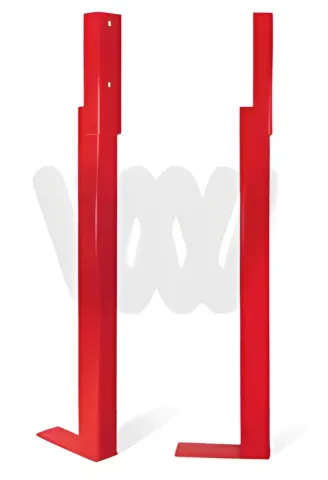

The strongest single-column repair kit in the range, using a structural 1/4″-thick closed-tube design. Available in 3″ or 4″ column widths with an optional V-nose deflector for added forklift defense.

• Design: Structural 1/4″-thick closed-tube
• Strength: Strongest single-column repair kit
• Column widths: 3″ or 4″
• Footplate: 4″ × 12″ × 5/16″-thick (custom/seismic available)

A fully engineered modular frame repair kit that includes a factory-welded bracing panel to repair a single damaged column along with its horizontal and diagonal struts. Available in structural C-channel, tube or roll-formed column designs and fully customizable for the application.

• Type: Modular single-leg frame repair
• Bracing: Includes factory-welded bracing panel
• Column designs: Structural C-channel, tube or roll-formed
• Customization: Fully customizable for specific applications

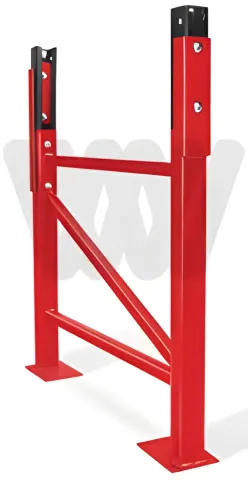

A factory-welded, engineered frame repair kit for pallet rack where both the front and rear columns are damaged, installed with bolted hardware. Available in structural C-channel, tube or roll-formed column designs.

• Type: Double-leg frame repair (front & rear columns)
• Build: Factory-welded and engineered, bolted installation
• Column designs: Structural C-channel, tube or roll-formed
• Footplate: 4″ × 12″ × 5/16″-thick (custom/seismic available)

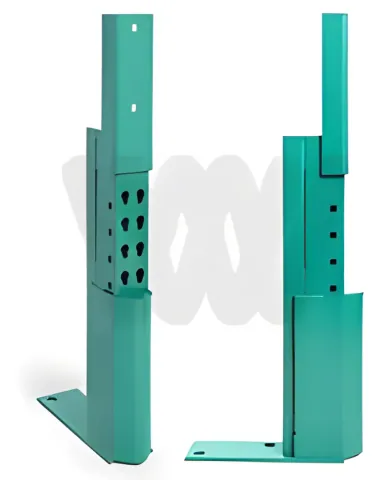

An engineered single-column repair kit, built around a 1/4″-thick hollow structural steel (HSS) closed-tube post that splices in below the damage. It bolts on with no on-site welding and installs in under an hour, typically without unloading the rack. The maker is clear that a repair does not raise the rack's manufacturer-specified capacity — it restores the damaged column so the frame can go back into service, with beams re-seated using the hook-over accessory or bolted connections.

• Design: 1/4″-thick HSS closed-tube front post
• Install: Bolt-on, no welding, under 1 hr, typically no unloading
• Engineering: Engineered kit; restores original rated load capacity
• Heights: Cut to damage height, up to 24 ft column

The double-leg Pro kit repairs both the front and rear columns of a frame at once with two 1/4″-thick HSS closed-tube posts tied together by a C3-channel horizontal brace. It bolts to the existing rack with no welding and installs in under an hour, typically without unloading. Because it replaces the full base of the upright on both columns, it puts a heavier closed-tube section where the forklift strikes land — the maker does not claim a repair raises the rack's specified capacity, and neither do we.

• Design: Two 1/4″-thick HSS posts + C3-channel brace
• Install: Bolt-on, no welding, under 1 hr, typically no unloading
• Engineering: Engineered with braces; restores original load capacity
• Heights: Cut to damage height, up to 24 ft column

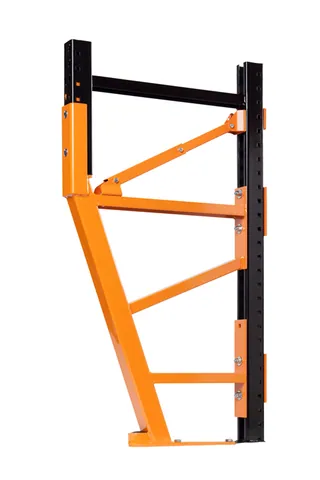

The slant configuration of the Pro kit repairs sloped or specialty frames, with an angled base cut to match the existing pitched upright in single- or double-leg form. It uses the same 1/4″-thick HSS closed-tube construction and bolts on with no welding, installing in under an hour and typically without unloading the rack. Each kit is engineered and made-to-measure to restore the sloped frame's original rated load capacity.

• Design: 1/4″-thick HSS closed-tube post with angled base
• Fits: Slanted/sloped racks, structural & cold-formed · single or double leg
• Install: Bolt-on, no welding, under 1 hr, typically no unloading
• Engineering: Made-to-measure; restores original load capacity

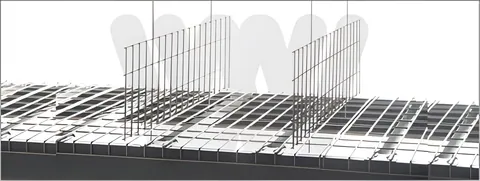

A “candy cane” style wire mesh pallet rack divider that securely attaches between beam levels. One of the maker's four divider styles, it can be added to new or existing wire mesh decking for added organization, with custom sizes available.

• Style: “Candy cane” hanging style
• Mounting: Attaches securely between beam levels
• Application: Adds to new or existing wire mesh decking
• Sizing: Custom sizes and styles available

A wire mesh divider with a durable perimeter wire and heavy-duty clips that snaps securely onto the deck surface. Easy to install and removable, it maintains versatility by allowing beam-level changes, and can be added to new or existing wire mesh decking.

• Build: Durable perimeter wire with heavy-duty clips
• Mounting: Snaps onto deck surface
• Versatility: Allows beam-level changes
• Application: Adds to new or existing wire mesh decking

A wire mesh divider that converts new or existing decking into a removable reverse-waterfall (backstop) application, keeping product from being pushed off the rear of the rack. One of the maker's four divider styles, with custom sizes available.

• Function: Creates a removable reverse-waterfall backstop
• Type: Wire mesh divider
• Application: Converts new or existing decking
• Sizing: Custom sizes and styles available

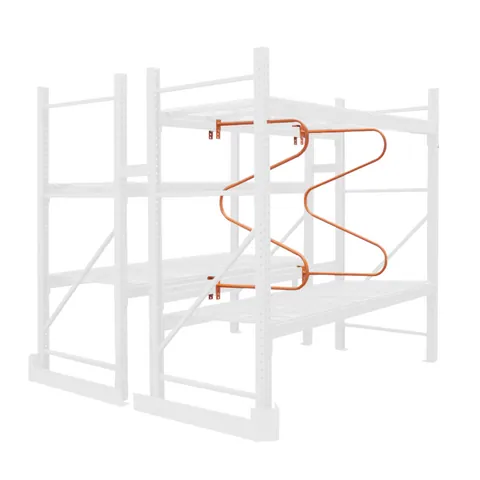

An “M”-profile wire divider that seats over the deck to create fixed vertical bays for organizing and separating loads. The M-shape lets you store irregular or narrow items upright rather than laid flat, connecting to the beam at the back of the rack. Adds to new or existing wire mesh decking, with custom sizes available.

• Type: M-profile wire mesh divider
• Function: Creates fixed bays; enables vertical storage of irregular items
• Mounting: Seats over the deck · connects to the rear beam
• Application: Adds to new or existing wire mesh decking

A “V”-profile wire divider whose inverted-V wires straddle the deck mesh below to lock it in place while splitting the bay. It seats between load levels to keep product separated and the deck aligned. Adds to new or existing wire mesh decking, with custom sizes available.

• Type: V-profile wire mesh divider
• Function: Splits the bay and keeps deck mesh seated via inverted-V wires
• Mounting: Inverted-V base fits over the wire deck below
• Application: Adds to new or existing wire mesh decking

A single vertical wire arm that attaches to the step beam and extends up from the deck to separate loads within a bay. Items hang by the handle or lean against the arm, keeping picks organized without permanent hardware. Adds to new or existing wire mesh decking, with custom sizes available.

• Type: Single-arm wire divider
• Function: One vertical arm separates loads on a single deck
• Mounting: Attaches to the step beam · extends up from the deck
• Application: Adds to new or existing wire mesh decking

Warehouse safety netting for pallet rack: woven mesh that spans the back or ends of a bay to catch product and debris before it falls into aisles or onto pedestrians, which is the secure-storage duty OSHA 1910.176(b) puts on you. It hooks to standard teardrop or slotted uprights and keeps the longitudinal flue space clear for sprinklers. Standard bay sizes stock from 8′ to 13′ wide, with custom and offset versions for overhanging loads.

• Type: Woven-mesh rack guard / debris net
• Function: Catches falling product/debris off the back or ends of a bay
• Mounting: Hooks to standard teardrop or slotted uprights
• Sizing: Standard bay widths, with custom and offset versions

Heavy 2″ polyester webbing straps that span the back or side of a bay as a rear stop, keeping palletized and shrink-wrapped loads from pushing through into the flue space or falling into aisles — a tool-free alternative to a backstop beam, and one way of meeting the secure-storage duty OSHA 1910.176(b) puts on you. They mount flush to standard rear uprights with teardrop, slotted, structural, or J-hook hardware and remove for access in seconds. Standard lengths fit 4–13 ft bays, with custom sizes available.

• Type: Polyester webbing rear/side-stop strap
• Material: 2″ polyester webbing · ~2,400 lb assembly burst strength
• Function: Rear stop against pallet push-through into flue or aisle
• Mounting: Flush to rear uprights · teardrop, slotted, structural or J-hook

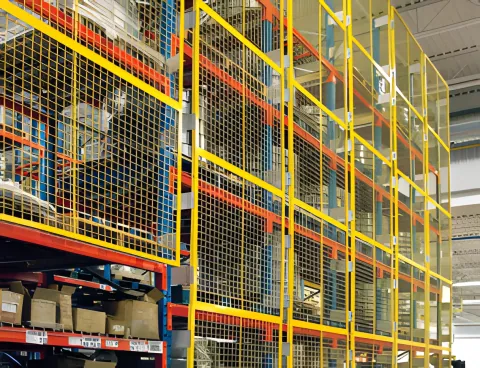

Welded-wire back-guard panels that bolt to the rear uprights of standard pallet rack to stop product push-through into aisles and protect pedestrians below — the secure-storage duty OSHA 1910.176(b) puts on you. Built from 10-gauge steel wire welded into 2″ × 2″ mesh on a steel angle frame, panels stack to any height and start at the floor or any level where protection is required. Stocked in 1-ft width increments in 4′ and 5′ heights, with flush or offset mounting for overhanging loads.

• Type: Welded-wire back-guard panel
• Material: 10-ga wire · 2″ × 2″ mesh · steel angle frame
• Function: Stops product push-through into aisles / protects pedestrians
• Mounting: Bolts to rear uprights · flush or offset for overhang

All-welded panels of 2″ × 2″ × 10 GA mesh in a 1-1/4″ × 1-1/4″ × 12 GA angle frame, fixed to the back or ends of a bay as a rigid alternative to netting. Where a net stretches and needs periodic inspection for cuts and broken webbing, a welded panel either is intact or is visibly damaged, which is why it is often specified over pick faces and pedestrian routes. Flush, offset and special-angle brackets cover pallet overhang and panels extending above the top beam.

• Mesh: 2″ × 2″ × 10 GA welded wire
• Frame: 1-1/4″ × 1-1/4″ × 12 GA structural angle, all-welded
• Heights: 3 ft to 5 ft
• Widths: 8 ft to 16 ft

A steel stop that slides onto the rear beam and physically limits how far a pallet can be pushed into the bay. It stops the two failures that follow over-travel: product pushed off the back of the rack, and pallets driven into the flue space where they block sprinkler penetration. Flush, 3″ and 6″ overhang versions suit different load depths, and it also holds waterfall wire deck in place on a 1-3/4″ × 1-3/4″ mesh grid.

• Fits beam: 2-3/4″ deep × 4-3/4″ or 6-1/2″ face
• Versions: Flush · 3″ overhang · 6″ overhang
• Install: Slides over the rear beam; bolt-through or Tek screw
• Also: Secures waterfall wire deck on 1-3/4″ × 1-3/4″ mesh spacing

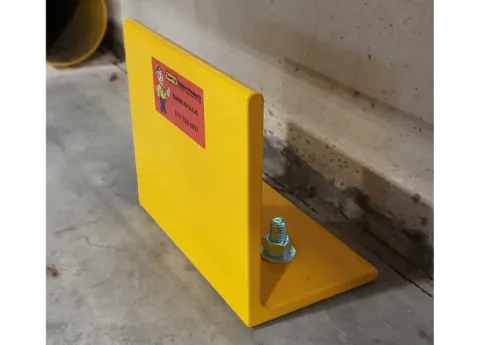

A floor-anchored stop for the ground-level bay, where there is no rear beam to hang a pallet stop from. A 7″ × 6″ × 4″ block in 3/8″ steel, anchored behind the load so a pallet cannot catch on it, fixed with two 1/2″ × 3″ concrete anchors.

• Profile: 7″ W × 6″ H × 4″ D, 3/8″ thick steel
• Anchors: Two 1/2″ × 3″ Tapcon anchors, behind the guard
• Use: Ground-level bays with no rear beam
• Finish: Powder-coated safety yellow

A bolted steel industrial guard rail that protects machinery, walkways, in-plant offices, personnel and inventory from forklift damage. Four-way posts are punched on all sides to build any barrier shape, and the system is powder coated safety yellow for maximum visibility.

• Post: 4-3/4″ × 4-3/4″ × 3/16″-thick, 42″ or 18″ high
• Footplate: 10″ × 10″ × 1/2″-thick with (4) 7/8″-dia. anchor holes
• Rail: 12″ high × 1/8″-thick, double-ribbed; 2′–10′ on post centers
• Impact rating: 12,000 lbs. at 4 mph

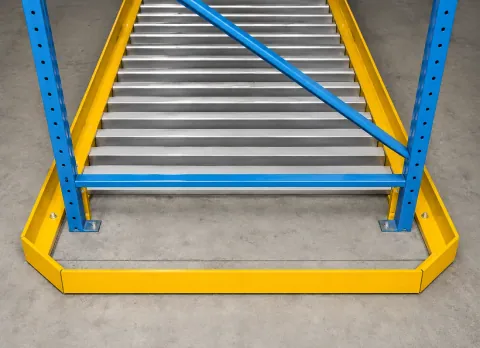

Heavy structural-steel angle rail that bolts flat to the floor to keep forklifts and AGVs on line down aisles and guide them safely into dock approaches, past walls, and along equipment runs. All-welded gussets and radiused entry curves deflect wheel contact and shield rack ends and structural legs from over-steer. Surface-mounted on regular anchor centers with no concrete work · powder-coated safety yellow.

• Rail: 5″-tall structural steel angle (also 3″×4″ / 4″×4″)
• Material: 5/16″-thick steel · ~8.4 lb/ft
• Standard lengths: 9.5 ft and 10 ft sections, coupled for continuous runs
• Install: Floor-anchored, holes on ~24″ centers; entry guide curves

A low barrier that mounts flush to the floor and stands 12″ tall, so forks and pushed product cannot slide under or through it. Use it as a wall guard, around conveyors and machinery, or as a pallet stop where a full-height guard rail is more than the job needs.

• Height: 12″
• Mounting: Flush to the floor
• Use as: Wall guard · conveyor and machine guard · pallet stop

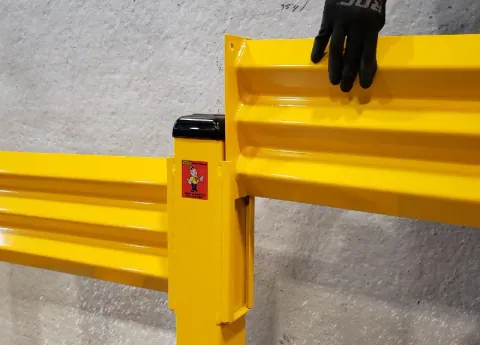

The lightest tier of the drop-in guardrail range, rated by the manufacturer at 5,000 lbs at 5 mph. Built from 14-gauge steel on 4″ × 4″ posts with 8″ × 8″ × 1/2″ base plates, it is sized for electric pallet trucks, powered stackers, manual jacks and push carts rather than counterbalance forklifts. Rails drop into welded post sleeves and lift out again, so a damaged section is swapped without loose hardware.

• Impact rating: 5,000 lbs at 5 mph (manufacturer-stated)
• Rail: 14-gauge ribbed steel, 4 ft–10 ft in 1 ft increments
• Post: 4″ × 4″, 42″ high
• Base plate: 8″ × 8″ × 1/2″

The workhorse tier, rated by the manufacturer at 10,000 lbs at 5 mph, in 10-gauge steel on 4″ × 4″ posts with 10″ × 10″ × 1/2″ base plates. Post heights of 18″, 26″ and 42″ cover everything from low equipment guarding to a full-height barrier at OSHA rail height. All-welded drop-in sleeves mean no brackets or bolts between rail and post.

• Impact rating: 10,000 lbs at 5 mph (manufacturer-stated)
• Rail: 10-gauge ribbed steel, 2 ft–10 ft in 1 ft increments
• Post: 4″ × 4″, 18″ / 26″ / 42″ high
• Base plate: 10″ × 10″ × 1/2″

The heaviest tier, rated by the manufacturer at 12,000 lbs at 5 mph, stepping up to 5″ square posts on 10″ × 10″ × 5/8″ base plates. Specified where a loaded counterbalance truck could reach the barrier at speed — main drive aisles, switchgear and transformer rooms, and the approach to occupied in-plant offices. Rails remain 10-gauge and interchange with the standard tier.

• Impact rating: 12,000 lbs at 5 mph (manufacturer-stated)
• Rail: 10-gauge ribbed steel, 2 ft–10 ft in 1 ft increments
• Post: 5″ square, 18″ or 42″ high
• Base plate: 10″ × 10″ × 5/8″

A bolted structural guardrail in 13-gauge roll-formed steel to ASTM A1011 Grade 45, rated by the manufacturer at 10,000 lbs at 4 mph when properly installed. Unlike the drop-in systems it bolts rail to post through twin 12.5″ × 3″ mounting plates, which makes the joint itself load-bearing rather than relying on a sleeve. Rails span 12″ to 108″ centre-to-centre; double-rail columns are 44″ high on 10″ × 10″ × 1/2″ base plates.

• Impact rating: 10,000 lbs at 4 mph (manufacturer-stated)
• Steel: 13-gauge roll-formed, ASTM A1011 Grade 45
• Rail: 12″ high; 12″–108″ (1 ft–9 ft) centre-to-centre spans
• Column: Double-rail 44″ H · single-rail 18″ H

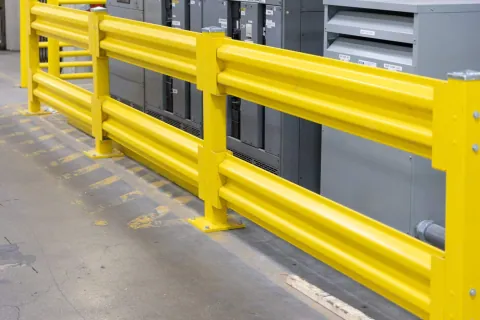

The mid-tier Wilgard bolted steel guard rail for warehouse and DC aisles, rated by its maker at 10,000 lbs at 4 mph on a 10 ft rail. A 4″ × 4″ tube column on a 10″ × 10″ × 5/8″ base plate carries 12″ corrugated 12-gauge rails in single, double or triple runs, and every rail and column ships with its own hardware and wedge anchors. Lift-out rails use the same column, so a section can come out for equipment access.

• Impact rating: 10,000 lbs at 4 mph, 10 ft rail on 1/2″ × 5″ anchors (manufacturer-stated)
• Columns: 4″ × 4″ × 3/16″ tube · 18″ single, 44″ double or triple rail
• Base plate: 10″ × 10″ × 5/8″ steel · (4) 1/2″ × 5″ wedge bolts included
• Rails: 12″-high corrugated 12-ga steel, hemmed edges · 2–10 ft

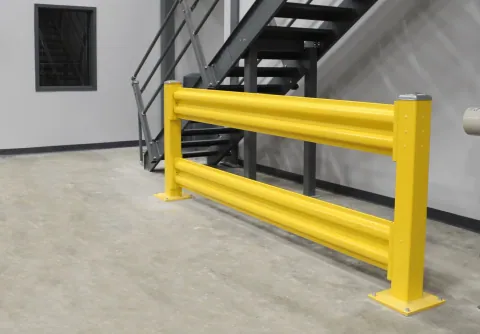

The heaviest Wilgard guard rail, rated by its maker at 13,000 lbs at 4 mph on a 10 ft rail, with a 10″ safe zone behind it. Compared with MT it steps up to 5″ × 5″ columns, 12″ × 12″ × 3/4″ base plates and 11-gauge rails. Single, double or triple runs, bolted or lift-out, with hardware and anchors included.

• Impact rating: 13,000 lbs at 4 mph, 10 ft rail on 1/2″ × 5″ anchors (manufacturer-stated)
• Safe zone: 10″ behind the rail (manufacturer-stated)
• Columns: 5″ × 5″ × 3/16″ tube · 18″ single, 44″ double or triple · zinc-plated snap-on cap
• Base plate: 12″ × 12″ × 3/4″ steel · (4) 1/2″ × 5″ wedge bolts included

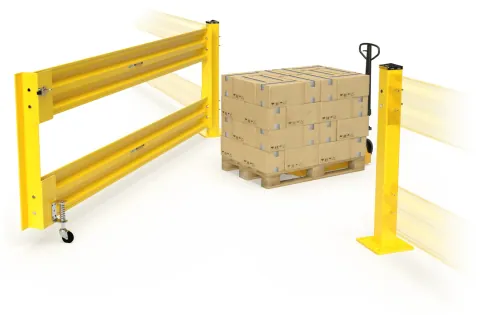

A pass-through gate built from Wilgard MT guard rail, giving a run of rail a forklift or walk-through access point that matches the rest of it, on a new run or an existing MT system. The gate rides on a spring-loaded caster and latches shut when not in use. The maker says the gate has been tested to its 10,000 lb "industry standard" impact rating.

• Impact rating: 10,000 lb "industry standard" rating (manufacturer-stated; no speed or test method given)
• Columns: 4″ × 4″ × 3/16″ tube, 44″ double-rail; 10″ × 10″ × 5/8″ base plate
• Rails: 12 ga corrugated steel, 12″ high, 2 ft–10 ft
• Gate hardware: Spring-loaded caster with shock (125 lb, 3″ wheel); spring latch

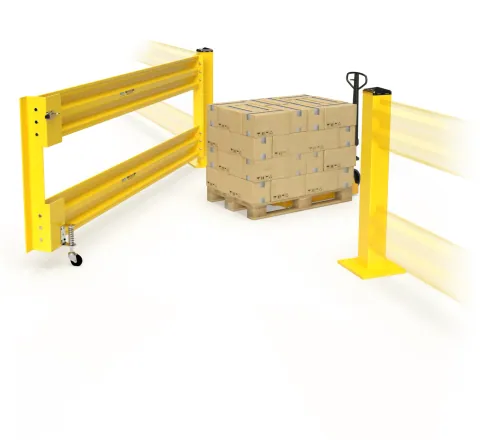

The pass-through gate for the heavy-duty Wilgard XT guard rail, built from the same 11-gauge rail and 5″ columns so the access point matches the run. The gate rolls on a spring-loaded caster and latches shut when not in use. It fits a new XT run or an existing one.

• Columns: 5″ × 5″ × 3/16″ tube, 44″ double-rail; 12″ × 12″ × 3/4″ base plate
• Rails: 11 ga corrugated steel, 12″ high, 2 ft–10 ft
• Gate hardware: Spring-loaded caster with shock (125 lb, 3″ wheel); spring latch
• Anchors: 1/2″ × 5″ wedge bolts, included

A self-closing walk-through gate that replaces one 4 ft section of Wilgard guard rail, bolting to the existing 44″ columns with no changes and leaving a 34-5/8″ clear opening for people or carts. It opens out into the aisle, swings shut on its own and has a safety latch, so pedestrian cross traffic is channelled to one place.

• Fits: Wilgard 44″ double- or triple-rail guard rail (XT, MT, LT)
• Clear opening: 34-5/8″ (replaces one 4 ft centre-to-centre section)
• Gate height: Top approx. 42″ from floor
• Hinges: Self-closing spring hinges, tested to over 100,000 cycles (manufacturer-stated)

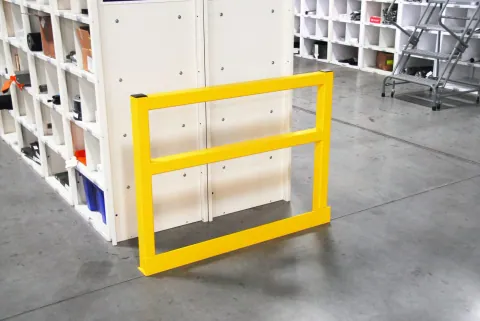

A welded steel guard built to the size of your shelving, that keeps push carts off the shelving in picking operations. Each one is made to match the shelf, so there is no stock size. Send us the shelf width and the cart traffic and we'll get it drawn up.

• Sizing: Made to match your shelving (no stock sizes)
• Frame: 2-1/2″ × 2-1/2″ × 1/8″ steel tube posts and rails, plastic caps
• Base: 4″ × 4″ × 1/4″ steel angle
• Use: Push-cart picking aisles · small footprint

Sturdy, safety-yellow steel posts that absorb and deflect impacts from forklifts and other machinery to protect dock doors, rack ends, electrical panels and pedestrian areas. Designed for easy floor anchoring without concrete work and suitable for indoor or outdoor use.

• Size: 42″ tall, 4.5″-dia. pipe, 0.125″ wall
• Footplate: 10″ × 10″ × 1/2″-thick with four anchor holes (3/4″ or 1/2″ anchors)
• Finish: Powder-coated safety yellow
• Top cap: Black plastic cap included

A polymer bollard that flexes on impact and returns to shape, rather than resisting rigidly like a steel pipe. Because the material absorbs and dissipates the energy, far less of it is transferred into the slab and the anchors, which is what usually turns a hard strike on a steel bollard into concrete repair as well as bollard replacement. Rated to PAS 13, the traffic-management barrier standard, by impact energy rather than a lb-at-mph figure. Yellow and grey as standard, on an electrophoretic-coated base.

• Heights: 32-7/8″ · 47-1/4″ · 78-3/4″
• Material: Impact-absorbing polymer, flexes and rebounds
• Rated to: PAS 13 — 5,800 J, equivalent to 4.7 US ton at 4 mph
• Impact zone: 0–47-1/4″ (90° approach)

An 84″ bollard set into the slab rather than bolted to it, so the concrete itself resists the impact instead of four anchors in shear. That makes it the choice for exterior dock approaches, gate posts and yard traffic where a surface-mounted baseplate would shear off under a hard strike. Available in 5.5″, 6.5″ and 8.5″ outside diameters, in safety yellow or red, with a plastic cap and striped decal.

• Length: 84″ overall (buried depth per site conditions)
• Diameters: 5.5″ · 6.5″ · 8.5″ OD
• Install: Direct bury into slab — no baseplate or anchors
• Colours: Safety yellow or red

High-density polyethylene sleeves that drop over an existing bollard to restore high-visibility colour without repainting, and to stop rust bleeding onto the slab. Because they are plastic they do not chip or need masking off, which is why they are common in food and retail-facing areas where a repaint means downtime. Internal diameters of 4.5″, 7″, 8-7/8″ and 10-7/8″ cover the usual bollard sizes, in heights from 52″ to 72″.

• Material: Heavy-duty high-density polyethylene (HDPE)
• Internal diameters: 4.5″ · 7″ · 8-7/8″ · 10-7/8″
• Heights: 52″ · 60″ · 64″ · 72″
• Install: Slides over existing bollard, no tools

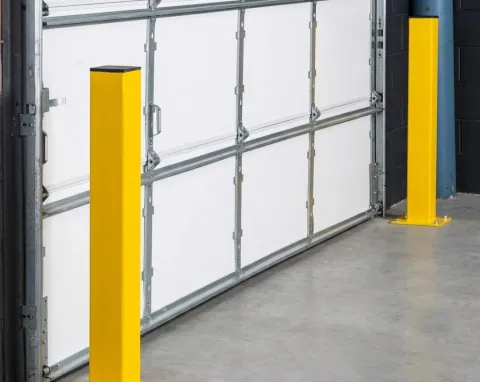

A square steel bollard for dock doors, office corners and equipment: 5″ × 5″ × 3/16″ tube welded to a 10″ × 10″ × 3/8″ base plate and painted safety yellow. Stock heights are 24″, 36″ and 42″, with 60″ made to order. It bolts down to the slab, and the anchors are bought separately.

• Post: 5″ × 5″ × 3/16″ square structural tube
• Base plate: 10″ × 10″ × 3/8″, drilled for 5/8″ holes
• Heights: 24″ · 36″ · 42″ (60″ custom)
• Anchors: 1/2″, 4 recommended, not included

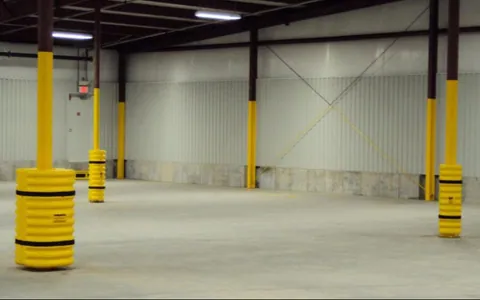

Blow-molded HDPE column guards that wrap around a building column in two halves and strap together with no tools, putting a highly visible barrier at the base of the column where forklifts and material handling equipment strike. They are sold as a lightweight, easy-to-install alternative to steel guarding, and because they strap on, they can be repositioned or replaced as the layout changes. The standard model is 42″ tall with a 24″ outside diameter, with square openings for 6″ to 12″ columns (which also fit round columns) and a 9″ round opening. A 24″ Short, a 6″ Slim and a Bolt Together model for 14″ to 18″ columns complete the range.

• Material: Blow-molded high-density polyethylene (HDPE)
• Fits columns: 6″, 8″, 10″, 12″ square openings (also fit round) · 9″ round · Bolt Together 14″, 16″, 18″
• Heights: 42″ standard and Slim · 24″ Short · 42-3/4″ Bolt Together
• Outside diameter: 24″ standard and Short · 12″ Slim · 30″ Bolt Together

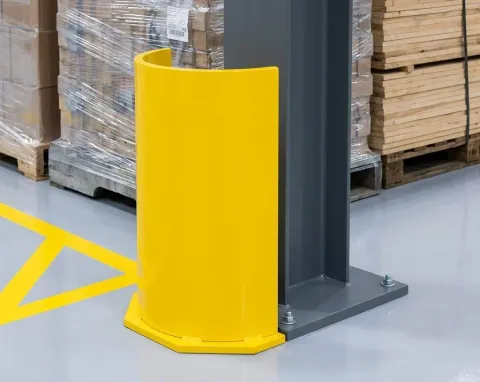

A curved steel guard, 16-1/2″ high, that bolts to the floor against a building column, drain pipe or other fixed equipment. It comes prefabricated, so there is no welding or cutting on site, and the anchors sit inside the curve out of the way of traffic. The maker recommends a set of four to cover all sides of a column.

• Height: 16-1/2″
• Mounting: Two 5/8″ internal holes · 1/2″ anchors, not included
• Coverage: Set of four recommended for all sides of a column
• Construction: Prefabricated steel, no on-site welding or cutting

A tight-fit polymer column guard for square and rectangular building columns. Interlocking corner sections and expansion panels close onto all four sides of the column with a minimal footprint, and a step at the base encloses the column’s base plate to shield its fixings. Each guard covers an impact height of 0 to 20-1/2″, and guards stack to reach any height. The maker positions it for light impacts and glancing blows, and rates it at 1,600 J at a 90° approach, which it equates to a 2 US ton vehicle at 3 mph.

• Fits: Square and rectangular columns · built to size from corner sections and expansion panels
• Impact height: 0–20-1/2″ per guard; stack guards for more height
• Maker rating: 1,600 J at 90° · equivalent to 2 US ton at 3 mph
• Compression: 4″ at maximum energy

A polymer guardrail built around a column rather than onto it. The rails are set apart from the column, so a strike is absorbed by the barrier and kept away from the structure. It fits columns of any size and section, square, rectangular, round or irregular, and can be supplied as a two- or three-sided unit for corner columns or columns against a wall. Rails and posts can be replaced in place without taking the rest of the guard apart. The maker rates the rail at 5,800 J at 90° on 59″ post centres, which it equates to a 2.5 US ton vehicle at 5 mph.

• Fits: Any column shape or size · full, two- or three-sided
• Rails: 4″ diameter polymer rails, stood off from the column
• Posts: 44-4/7″ high on a 7″ × 7″ base
• Maker rating: 5,800 J at 90° on 59″ post centres · equivalent to 2.5 US ton at 5 mph

The iFlexRail Column Guard with an integrated Traffic Rail added at the base, for columns in high-traffic areas. Like the standard guard it stands off from the column and fits any column shape or size. The maker rates it at 13,750 J at 90°, which it equates to a 4.2 US ton vehicle at 6 mph, for vehicles with an impact height of 8″ to 15-5/9″.

• Adds: Integrated Traffic Rail at the base
• Fits: Any column shape or size
• Posts: 44-2/3″ high on a 9″ × 9″ base
• Maker rating: 13,750 J at 90° · equivalent to 4.2 US ton at 6 mph

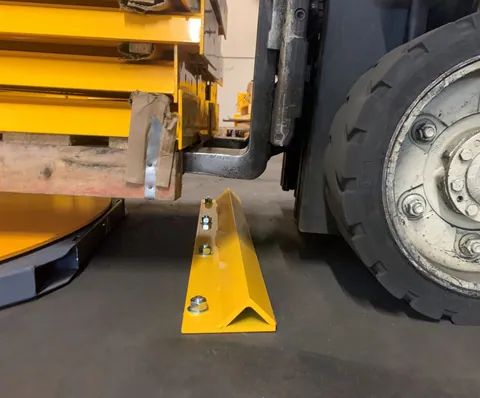

A triangular steel wedge, bolted to the floor and painted safety yellow, that stops a forklift or pallet truck wheel where it should not go: at dock edges, staging bays and aisle ends, before racking, walls or the dock lip. Sized at 2″ high, 6″ wide and 42″ long so it stops the wheel without blocking walkways. Four 3/4″ wedge anchors hold it down; no concrete work.

• Size: 2″ high × 6″ wide × 42″ long
• Material: Heavy-duty steel
• Finish: Powder-coated safety yellow
• Install: Four 3/4″ wedge anchors; surface mount

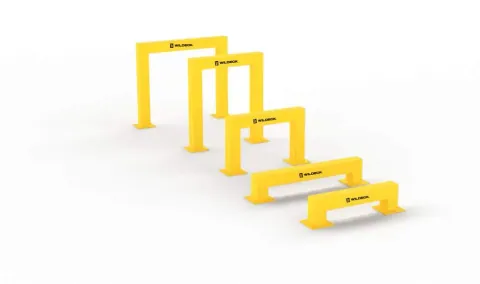

A welded U-shaped steel guard that sits in front of a machine or panel and takes the hit instead of it. Built from 5″ × 5″ × 3/16″ tube on two 9″ × 9″ × 3/8″ base plates, it bolts to the floor or sets in concrete. Three heights and two widths, painted safety yellow.

• Tube: 5″ × 5″ × 3/16″ structural steel
• Base plates: 9″ × 9″ × 3/8″, drilled for 5/8″ holes
• Sizes: 10″, 24″ or 42″ high × 36″ or 48″ wide
• Mounting: Surface-bolted or set in concrete · 1/2″ anchors (8), not included

The Stand Guard rail specified for separating people from truck traffic — the same drop-in ribbed rail sold here as Lite, Standard and Heavy Duty, chosen by the duty the aisle actually sees. Ribbed rails lift out of the posts for fast repairs with no loose hardware, and the 42″ top rail meets OSHA fall-protection height. Floor-anchored for indoor or outdoor use · powder-coated safety yellow. Pick the tier on impact rating: 5,000 lbs at 5 mph for pallet-truck aisles, 10,000 for mixed traffic, 12,000 where a loaded counterbalance truck can reach the barrier at speed.

• Rail height: 42″ top rail (OSHA 1910.29 guardrail height)
• Material: 10-ga ribbed steel; posts up to 5″ (14-ga lite-duty avail.)
• Impact rating: 5,000–12,000 lbs. at 5 mph (duty-dependent)
• Standard lengths: Drop-in rail sections, 2 ft–10 ft on post centres (lite duty from 4 ft)

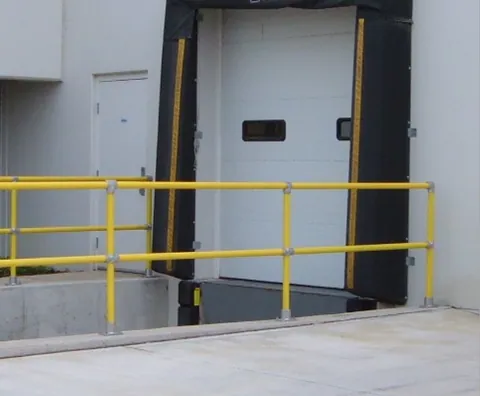

Modular steel handrail that guards stair sides, platform and mezzanine edges, and open floor holes with a 42″ top rail, mid rail, and optional toe board to meet OSHA 1910.29. Interchangeable end, corner, center, and base fittings slot onto standard pipe lengths and can be field-cut for an exact fit. Powder-coated high-visibility yellow · anchors down fast for permanent or reconfigurable runs.

• Rail height: 42″ top rail (OSHA 1910.29) · mid rail at ~21″
• Post / rail: 1.66″ O.D. steel pipe with slip-on fittings
• Standard lengths: 4 ft, 6 ft and 8 ft rail sections; field-cut to fit
• Toe board: 4″-tall kick plate, 48″ lengths (optional)

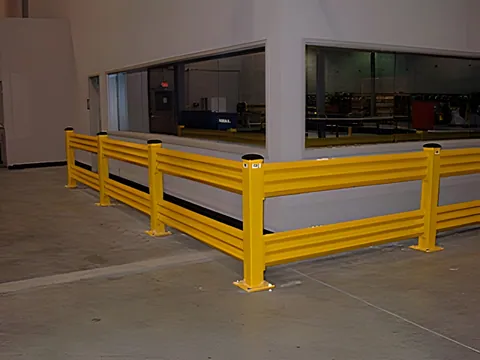

A dual-rail barrier in 11-gauge ribbed steel, rated by the manufacturer at 3,000 lbs at 4 mph — deliberately lighter than vehicle guardrail because its job is separating people from traffic, not stopping a loaded truck. At the 42″ post height the top rail meets OSHA fall-protection height. Post heights of 18″, 26″ and 42″ on 6″ × 6″ × 1/2″ base plates, with the same drop-in, lift-out rails.

• Impact rating: 3,000 lbs at 4 mph (manufacturer-stated)
• Rails: Dual 2″-tall ribbed rails, 11-gauge steel
• Post heights: 18″ · 26″ · 42″
• Base plate: 6″ × 6″ × 1/2″

A 1.9″ tubular steel barrier in 2-rail and 3-rail configurations, assembled from sockets, elbows and flanges so runs can be shaped around corners and columns on site. It is a traffic-control barrier only: the manufacturer states it is not rated for fall protection or crash applications, so it should not be substituted where an impact-rated guardrail is specified. Bolts down through railing flanges with 3/8″ø × 2-3/4″ wedge anchors.

• Tube: 1.9″ diameter tubular steel
• Configurations: 2-rail and 3-rail
• Rail lengths: 2 ft–12 ft, cut to size
• Rating: Pedestrian traffic control only — NOT impact or fall rated

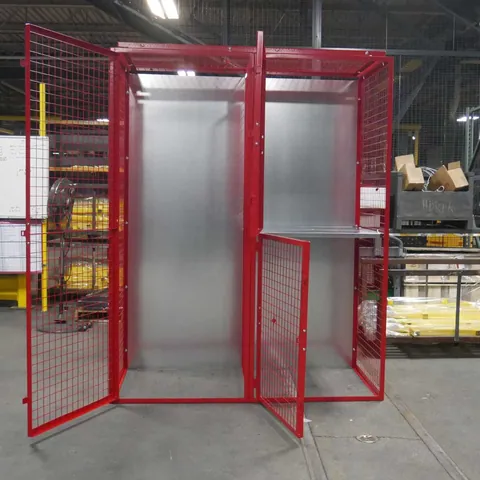

Bolt-together welded wire storage cages that lock up tools, inventory and tenant belongings inside an open warehouse. Each locker is built from 10-gauge, 2″ × 2″ welded wire mesh panels framed in 1-1/4″ steel angle, so light and air pass through while contents stay secured and visible. Single- or double-tier units bolt together on site as wall panels plus a hinged door, with welded wire ceiling panels to close the top.

• Mesh: 10-gauge wire · 2″ × 2″ welded square mesh
• Framework: 1-1/4″ roll-formed steel angle
• Panel sizes: 7′-6″ high · 3′ or 4′ wide · 3′, 4′ or 5′ deep
• Door: Hinged wire door with padlock hasp; single or double tier

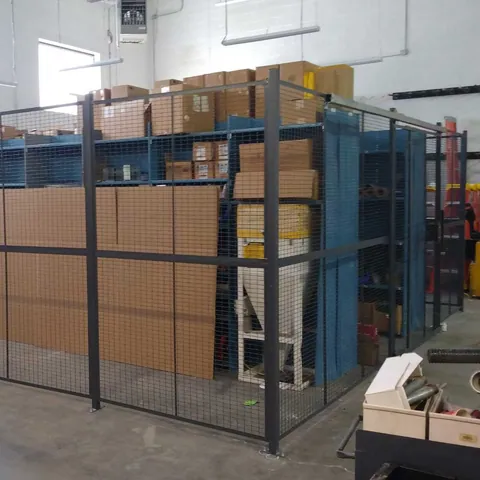

A full-height, lockable wire enclosure that isolates high-value and controlled goods inside a larger facility. Floor-to-ceiling panels of 10-gauge, 2″ × 1″ woven mesh bolt to 2″ square steel posts to build a four-wall cage, and a hinged or sliding wire door with a padlock hasp controls the single point of access. Panels stack to 8′ or 10′ openings and the cage bolts to the floor for a permanent, see-through secure room.

• Mesh: 10-ga wire · 2″ × 1″ woven mesh (3/4″ high-security avail.)
• Framework: 1-1/4″ steel angle welded to the mesh
• Posts: 2″ square, 14-ga steel tube, bolted
• Construction shown: Our primary supplier's; the alternate supplier's panels use 2.5″ 16-ga posts and 8-ga mesh

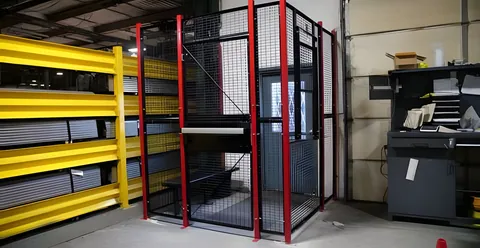

Floor-to-ceiling wire partition walls that divide open warehouse space into secured rooms, tool cribs, and controlled-access areas such as DEA and pharmacy cages. Panels of 10-gauge, 2″ × 1″ woven mesh weld into 1-1/4″ steel angle and bolt to 2″ square, 14-gauge posts, building any run or corner in one-foot increments. Panels ship 4′ and 5′ high and stack to 8′ or 10′ walls, with matching hinged and sliding doors.

• Mesh: 10-gauge wire · 2″ × 1″ woven mesh
• Framework: 1-1/4″ hot-rolled steel angle
• Posts: 2″ square, 14-ga steel tube; bolt-together
• Construction shown: Our primary supplier's; the alternate supplier's panels use 2.5″ 16-ga posts and 8-ga mesh

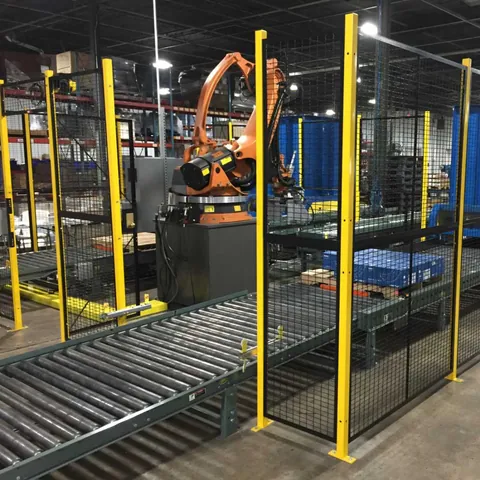

Welded wire safety fencing that guards robotic cells, machinery and plant perimeters from personnel access. Panels of 10-gauge welded wire in a 1-1/4″ square pattern frame into 1-1/4″ roll-formed angle and mount to floor-anchored posts to enclose any cell footprint. A lift-off panel design lets maintenance crews remove guards while the hardware stays attached, meeting RIA/ANSI R15.06 robot-safeguarding practice.

• Mesh: 10-ga welded wire · 1-1/4″ square pattern
• Framework: 1-1/4″ roll-formed steel angle
• Panel heights: 6′-1-1/2″ and 8′ standard (custom available)
• Panel widths: 1′ to 5′ wide

A sensor fitted to the rack upright that registers a forklift strike at the moment it happens and flags which frame was hit. The problem it solves is under-reporting: an operator who clips a frame at the far end of an aisle rarely reports it, and the damage then stays in service until a quarterly inspection finds it or the frame fails under load. Detection turns that into a same-shift notification, so the bay can be unloaded and assessed before it is loaded again.

• Function: Registers forklift impact on a rack upright
• Alerts: Identifies the struck frame at time of impact
• Fitting: Mounts to the upright; retrofit to existing rack
• Purpose: Closes the gap between unreported damage and inspection

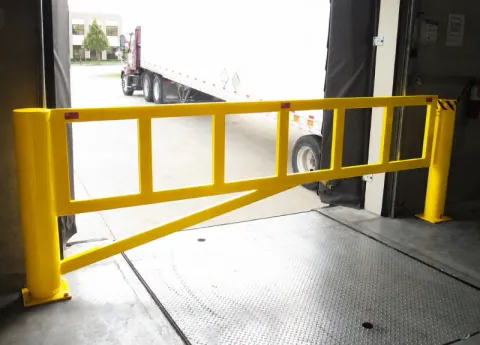

An all-welded steel gate that pivots across the dock opening when no trailer is docked, standing 42″ high so it reads as a barrier rather than a trip rail. It mounts over a 6″ × 42″ bollard, which means the bollard takes any impact instead of the gate hinge. Supplied in 5 ft to 14 ft widths in 1 ft increments, single or paired for wide openings.

• Height: 42″ (OSHA guardrail height)
• Widths: 5 ft to 14 ft in 1 ft increments
• Construction: All-welded steel
• Mounting: Over a 6″ × 42″ bollard

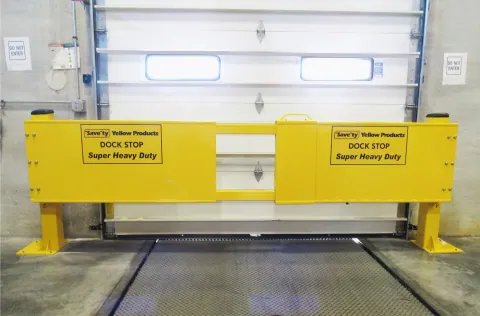

The heaviest barrier in the dock range, rated by the manufacturer at 30,000 lbs at 4 mph — an order of magnitude above interior guardrail, because a loaded truck reversing at a dock edge carries far more energy than an aisle strike. Built on 5″ steel posts with 12″ × 12″ × 5/8″ offset base plates and 1″ pins, with a sliding locking plate and no pinch points. Clearances of 8, 10 and 12 ft.

• Impact rating: 30,000 lbs at 4 mph (manufacturer-stated)
• Height: 42″
• Posts: 5″ steel on 12″ × 12″ × 5/8″ offset base plates
• Clearances: 8 ft · 10 ft · 12 ft

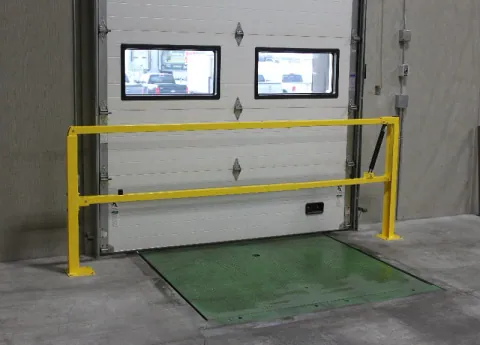

A vertical-lift barrier that rises straight up rather than swinging, for openings where there is no floor space for a gate arc. Air assist takes the weight so it can be raised one-handed, and aluminium rails keep the moving section light while the carbon steel posts carry the load. The 42″ top rail meets OSHA guardrail height when lowered.

• Action: Vertical lift, air-assisted
• Posts: Carbon steel, 4.5″ × 2″
• Rails: Aluminium, 1.5″
• Top rail: 42″ (OSHA guardrail height)

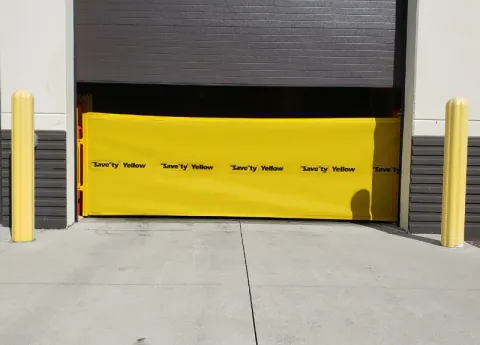

A retractable industrial fabric barrier that pulls across a dock or door opening at about 3 lbs of effort, so it actually gets used on every cycle rather than being left open. At 42″ high it provides a visible stop for pedestrians and pallet trucks while still letting air move through, which keeps a ventilated dock ventilated and blocks birds, insects and blown debris. Widths from 8 ft to 20 ft.

• Height: 42″
• Pull force: ~3 lbs
• Widths: 8 ft · 9–10 ft · 11–12 ft · 13–16 ft · 17–20 ft
• Airflow: Permeable — blocks debris, insects and birds

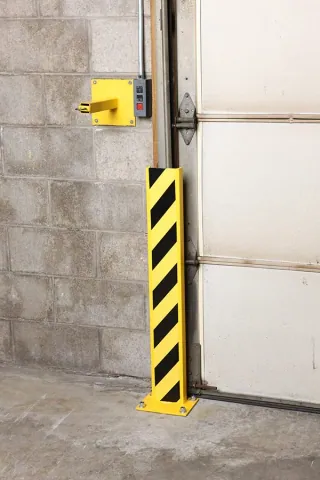

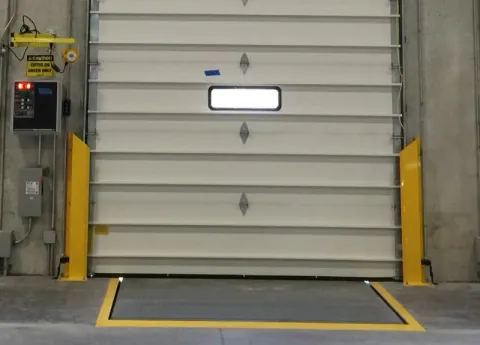

A 48″-high steel guard set in front of the vertical track of an overhead door. A bent track is one of the more expensive dock repairs because the door is out of service until it is fixed, and the damage usually comes from a forklift clipping the track rather than a direct hit. Formed from 3/16″ steel on a 1/4″ baseplate with 7″ standard clearance, up to 14″ on request, in left- and right-hand versions.

• Height: 48″
• Construction: 3/16″ steel, 1/4″ baseplate
• Clearance: 7″ standard, up to 14″
• Handing: Left or right

A short steel channel guard that bolts down in front of an overhead door track, where fork trucks and other moving equipment can damage it. It comes 24″ or 36″ tall on a 6″ × 8″ base plate and is 5″ wide overall. Yellow with black safety stripes, and it takes standard 1/2″ anchors.

• Heights: 24″ or 36″
• Footprint: 6″ × 8″ base plate · 5″ overall width
• Anchors: Standard 1/2″ (optional 1/2″ low-profile)
• Finish: Yellow with black safety stripe

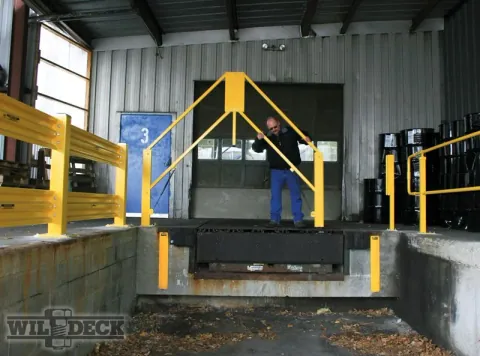

A counterbalanced dock-edge gate whose rail folds as it lifts, so it covers a 10 ft or 12 ft opening without needing the overhead clearance a straight gate does. Closed, it puts a 42″ top rail across an open dock door or truck pit and is rated by its maker for 200 lbs of top-rail pressure; raised, it clears the opening completely. Gas cylinders take the weight, and it can be set up to open either way.

• Clear openings: 10 ft or 12 ft
• Top rail: 42″ above floor when closed
• Top-rail load: 200 lbs; meets the OSHA 1910.23 load force protection requirement when properly anchored (manufacturer-stated)
• Shipping weight: 85 lbs (10 ft) · 91 lbs (12 ft)

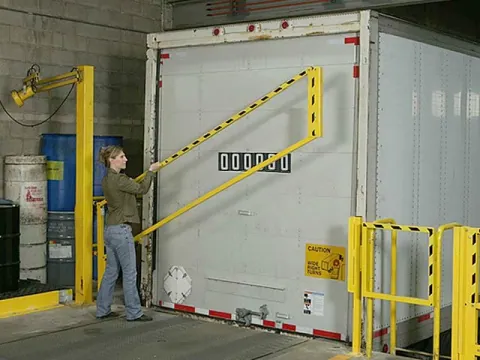

A counterbalanced straight rail that lifts up out of the way of a standard dock door and drops back down to close it off. Closed, the top rail sits 42″ off the floor and its maker rates it for 200 lbs of top-rail pressure. It comes in 8 ft and 10 ft clear widths. Because the rail lifts straight up, check the headroom: the 10 ft gate needs about 167″ when raised.

• Clear openings: 8 ft or 10 ft
• Top rail: 42″ above floor when closed
• Top-rail load: 200 lbs; meets the OSHA 1910.23 load force protection requirement when properly anchored (manufacturer-stated)
• Shipping weight: 62 lbs (8 ft) · 67 lbs (10 ft)

A self-closing pallet gate built from six independent spring-loaded arms on integrated casters, so a strike damages one arm rather than the whole gate — and that arm is replaced individually. The arms close behind the load automatically, keeping a barrier at the edge whether the pallet is in place or not. Widths of 4, 6 and 8 ft at 42″ high, with clearances of 48″, 72″ and 96″ for roll-formed and structural rack.

• Height: 42″
• Widths: 4 ft · 6 ft · 8 ft
• Clearances: 48″ · 72″ · 96″
• Arms: 6 independent spring-loaded arms, individually replaceable

An all-welded tubular steel gate that pivots so one side is always closed: as the loading side opens, the edge side closes, and the worker is never exposed to the drop. The manufacturer cites OSHA fall-protection requirements for elevated work surfaces (29 CFR 1910.28 / 1910.29). Standing 79.5″ high and 66″ deep, in single-pallet (63″ W) and double-pallet (120″ W) versions with clear openings from 55″ to 120″.

• Height: 79.5″ · Depth 66″
• Single pallet: 63″ wide
• Double pallet: 120″ wide
• Clear openings: 55″ · 60″ · 72″ · 96″ · 108″ · 120″

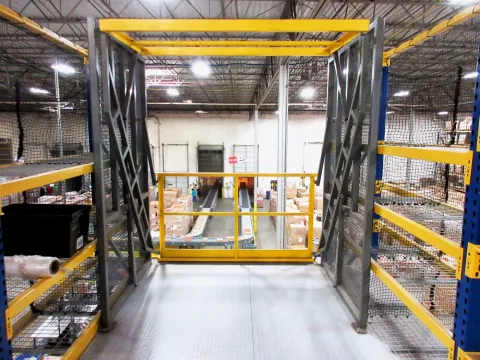

A pallet-drop gate that keeps the edge guarded while it is loaded: raise one side and the other comes down, so there is always a rail between the platform and the drop. The frame is cut to width on site, from 10 ft down to 3 ft, which suits openings that aren’t a standard size. It takes pallets up to 6′-1″ high and 7′-1″ deep.

• Action: One side closes as the other opens
• Interior width: Cut to fit on site, 109-1/8″ down to 25-1/8″ (outside 120″ to 36″)
• Pallet clearance: 7′-1″ deep × 6′-1″ max pallet height
• Footprint: Outside width 120″ to 36″ × 84-1/2″ D × 85-7/16″ H

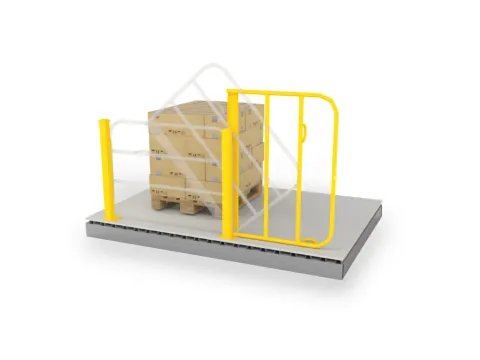

A pallet gate that rotates up into a vertical cradle, for openings with little floor space either side, and you need overhead room equal to the gate width. It stays hinged to its centre post throughout, so it cannot be dropped over the edge. Closed, it gives a 42″ rail with toe board.

• Openings: 4 ft to 8 ft (custom sizes available)
• Vertical clearance: Equal to the gate width
• Height: 42″ rail with toe board
• Construction: 1-1/2″ dia. steel tube; 3″ × 3″ posts on 6″ × 6″ base plates

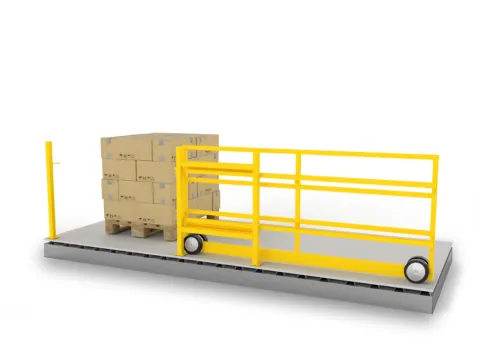

A trackless slide gate that rolls along the rail line on silent polyurethane wheels, leaving the deck clear and working where headroom is limited. The person opening it stays behind the gate and rail for the whole slide, and the gate latches when closed. Plan for clear rail-line space of twice the opening plus 36″.

• Openings: 4 ft to 8 ft (custom sizes available)
• Clearance along rail: 2 × opening + 36″ (132″ for 4 ft, up to 228″ for 8 ft)
• Height: 42″ rail with toe board
• Construction: 1-1/2″ square steel tube, trackless on polyurethane wheels

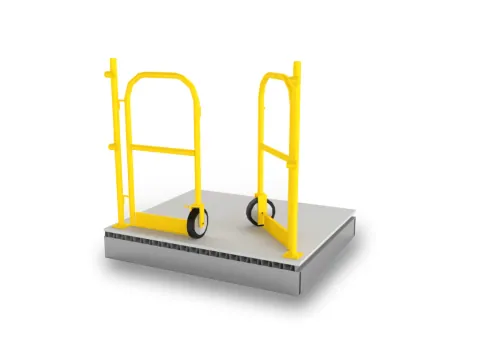

A single or bi-parting swing gate that rolls on an 8″ wheel, letting it float over the floor as it opens, which suits openings with little headroom. Singles latch to the opposite post; doubles close with a cane bolt and latch. Spring-closing is an option.

• Single gate: 3 ft to 6 ft
• Double (bi-parting): 3 ft to 12 ft
• Height: 42″ to match railings, with toe board
• Construction: 1-1/2″ dia. steel tube on 8″ wheel(s)

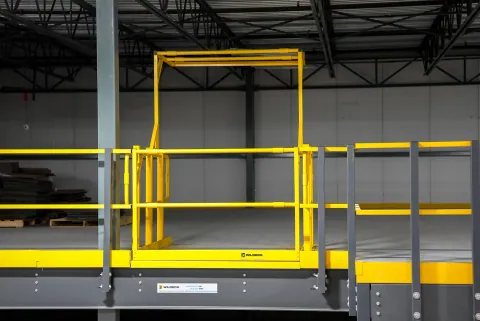

A true safety gate for pick modules and mezzanines: raise one side and the other closes, so the ledge is never open. The arms pivot at more than one point and swing up outside the side panels, which leaves room for taller pallets than a pivot gate. It bolts to most makers’ rack uprights or stands alone on the deck, with expanded-metal sides and a built-in kickplate.

• Action: One side closes as the other opens
• Pallet clearance: 54″ deep × 86″ high (standard models)
• Widths: 4 ft to 12 ft clear; single or double-wide pallet
• Mounting: Rack-mounted (most makers’ uprights) or freestanding on the deck

Spring-loaded steel fingers that a gravity-fed pallet pushes open on its way in, and that close again once the pallet is picked out. The standard set fits a 96″ bay of 40″ × 48″ pallets, either bolted to the rack uprights or on its own posts. JiffyRail can fill wider bays or a walkway between roller lanes.

• Fits: Common 96″ rack bays, 40″ × 48″ pallets (custom finger lengths)
• Mounting: Rack uprights (2 bolts per finger, holes 12″ on centre) or freestanding posts
• Height: 42″ top rail (per the manufacturer drawing)
• Strength: Meets OSHA guardrail strength when closed (manufacturer-stated)

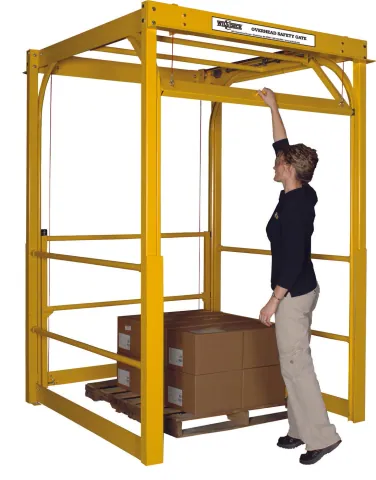

A safety gate on a 65″ × 65″ footprint, for tall pallet loads where floor space is tight. One side is closed whenever the other is open. Coated cables keep it smooth and quiet, a spring assist slows the gate’s descent to protect feet, and track guarding takes the knocks from loading.

• Action: One side closes as the other opens
• Pallet clearance: 57-1/2″ W × 60″ D × 82″ H
• Footprint: 65″ W × 65″ D × 98″ H
• Operation: Spring-assisted descent, coated cables, guarded track

Two 5′ × 5′ pallet bays side by side with linked sliding gates: while the forklift loads one bay from below, staff on the mezzanine unload the other, and the gates swap over together. It is built for high-cycle drop zones where loading shouldn’t wait on unloading. Three-rail construction that mounts to any type of flooring.

• Action: Inner and outer gates slide together, alternating two bays
• Load opening: 5′ W × 5′ D per bay
• Footprint: 13′-8″ L × 5′-5″ W × 42″ H
• Construction: Three-rail; meets OSHA, IBC, BOCA and UBC requirements (manufacturer-stated)

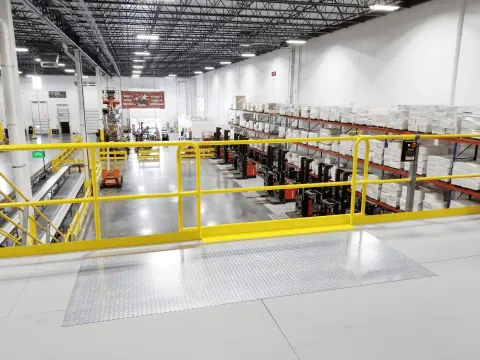

A side-mounted slide gate for a mezzanine pallet opening that takes up very little deck space, 6′-0″ clear as standard on a 14′-9″ footprint, with 8′-0″ available. It ships with the EdgeAlert alarm, which flashes and sounds while the gate is open. A powered version runs from a remote, a fixed control button or a hanging pendant.

• Clear opening: 6′-0″ standard, up to 8′-0″
• Footprint: 14′-9″ wide (6′ standard)
• Mounting: Side of mezzanine
• Standards: Meets industry requirements (manufacturer-stated)

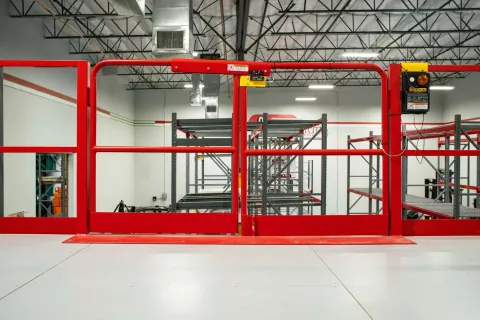

A bi-parting swing gate for a mezzanine pallet opening, 6′-0″ clear as standard and up to 8′-0″, held shut with a slide lock and barrel bolt and supplied with the EdgeAlert open-gate alarm. It can be built 2-rail, 3-rail or mesh to match the rail already on the platform. Optional spring hinges swing the leaves shut after use.

• Clear opening: 6′-0″ standard, up to 8′-0″
• Height: 42″ to match standard mezzanine rail
• Infill: 2-rail, 3-rail or mesh
• Standards: Meets industry requirements (manufacturer-stated)

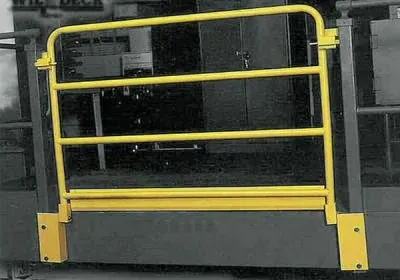

A lightweight removable gate for a 72″ mezzanine pallet opening. Spring latches release it and it tilts inward, toward the platform, so nobody has to lean over the edge to lift it out. The integral kick plate stops loose items going over the edge when it’s in place.

• Usable opening: 72″ wide
• Size: 6′-3″ W × 42″ H
• Action: Tilts inward for removal; spring-loaded latches
• Mounting: Side-mounted

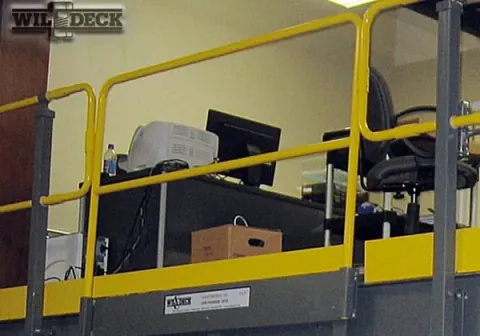

The simplest way to close a 6′-0″ mezzanine pallet opening: a light tubular gate that drops into pockets on the side of the deck and lifts straight out for loading. Set several side by side for a wider opening. Each gate has an integral kick plate.

• Clear opening: 6′-0″ per gate; gang side by side for wider
• Mounting: Side-mounted pockets (standard), deck-mounted optional
• Rails: 2-rail or 3-rail
• Standards: Meets applicable codes and safety standards (manufacturer-stated)

Spring-loaded steel gate panels that open as the forklift drops the pallet through and close again behind it, so nobody has to open them by hand at the edge. They are common in pallet-flow and pick-module drop zones. Made to suit the bay: single or double pallet, 2 or 3 rails, and rack-mounted or freestanding.

• Action: Spring-loaded, self-closing as loads pass
• Horizontal clearance: 6 ft to 10 ft required
• Configurations: Single or dual pallet; 2- or 3-rail
• Mounting: Freestanding or rack-mounted

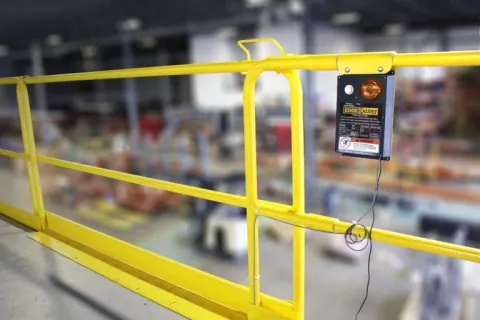

An alarm for mezzanine gates that leave the edge open while they are open. A coded magnetic sensor detects the open gate, and the unit sounds a horn and flashes amber LEDs on the front and back, so it can be seen from the deck and from the floor below. A snooze button gives two minutes for loading, and a self-check shows a fault if a sensor or wire fails.

• Signal: Amber LEDs front and back + horn (3 levels: 75 / 83 / 90 dB at 24″)
• Sensor: Dual-channel coded magnetic sensor, self-monitoring with fault signal
• Power: Plug-in supply (included) and/or 4 × D-cell batteries
• Enclosure: 6-3/8″ W × 10-1/2″ H × 2-3/4″ D; mounts on 1-1/2″ or 1-5/8″ OD pipe

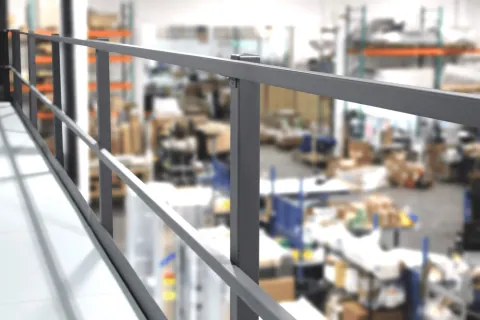

A modular steel guard rail for mezzanine and platform edges: square-tube rails on 2-1/2″ HSS uprights, bolted to the outside of the framing so no deck space is lost. It comes 2- to 5-rail, in square or round tube, with a 14-gauge kick plate and optional expanded-metal or picket infill. Laid out to suit your platform.

• Rails: 14 ga 1-1/2″ × 1-1/2″ square tube (round tube optional), 2- to 5-rail
• Uprights: 2-1/2″ × 2-1/2″ × 1/8″ HSS
• Mounting: Side-mounted to framing with 1/2″ A325 bolts; surface mount optional
• Kick plate: 14 gauge

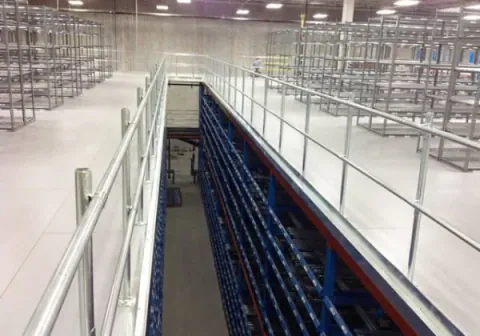

Zinc-plated pipe rail that goes up without welding or threading: the tee and cross fittings come pre-welded to the posts, and rails slide through and tighten in place. Layouts are designed to your floor plan, mounted on top of a platform, on its side, or on rack uprights. It is used on platforms, pick modules, walkways and loading docks, indoors or out.

• Rail: 1-1/2″ dia. steel tube
• Posts: 1-5/8″ dia. high-strength tube, fittings pre-welded
• Base plate: 4″ × 4″ standard
• Toe board: 4″

A self-closing swing gate that adjusts on site to fit the opening actually present, rather than the one on the drawing — which is why it is the usual retrofit choice for existing handrail and guardrail. Five adjustment ranges span roughly 18″ to 48″. At 22″ high it closes a walkthrough gap in an existing rail run rather than acting as the rail itself.

• Height: 22″
• Adjustment ranges: 19–29″ · 18–28″ · 28–38″ · 27–37″ · 38–48″
• Action: Self-closing
• Mounts to: Handrail or guardrail

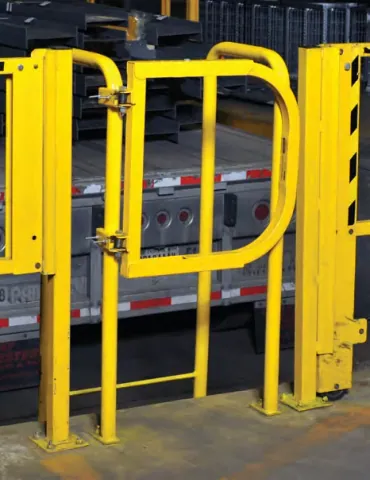

A self-closing gate for the top of an access ladder (dock, roof, mezzanine or maintenance) so the ladder opening is never left open. It mounts to pipe rails up to 2″ diameter and is reversible for left or right hinging. Two adjustable sizes cover openings from 16″ to 40″, measured out-to-out across the ladder rails.

• Fits openings: 16″–26″ or 27″–40″ (measured out-to-out)
• Hinges: Self-closing, spring-loaded
• Handing: Reversible, left or right
• Mounts to: Pipe rails up to 2″ diameter; hardware included
