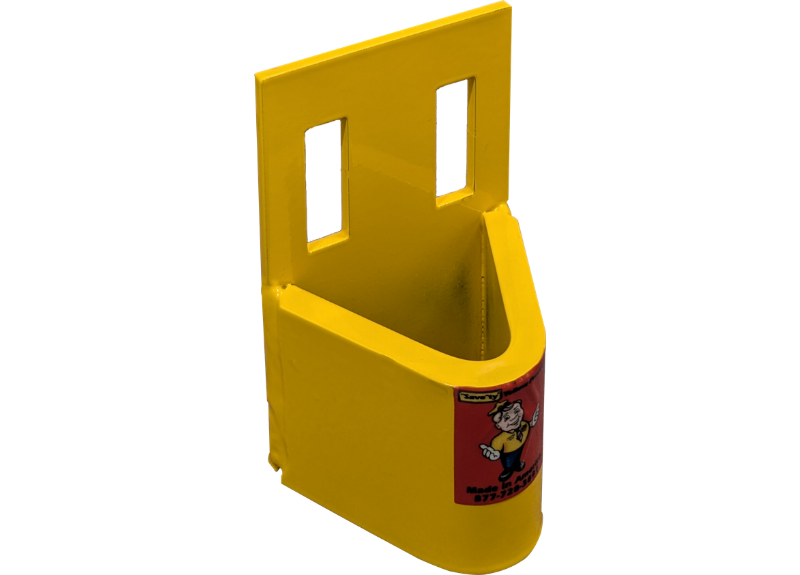

Economy Outrigger Post Protector
A 5″-high outrigger guard in heavy 3/8″ steel that bolts straight to the rack face and needs no floor anchoring at all. Skipping the concrete work makes it the fastest option to retrofit across a large number of bays, and the only one that can be moved later without leaving anchor holes in the slab. The trade-off is that impact loads transfer into the upright rather than the floor.
Technical Specifications
Related products
The manufacturer's most popular post protector for reach-truck applications, shielding rack uprights from forklift impacts. The 4″-high V-nose is built from 5/16″-thick steel to absorb outrigger impact and mounts above the footplate with a 3/4″-diameter floor anchor.
- Height: 4″ high (fits under low beam levels)
- Construction: 5/16″-thick steel
- Fits: 3″-wide rack columns (others available)
- Mounting: 3/4″-dia. floor anchor (sold separately)
A floor-mounted pallet rack column guard that protects the bottom portion of the frame where most outrigger and forklift damage occurs. Built from 3/16″-thick steel and available in 12″, 18″ or 24″ heights to suit different exposure levels.
- Mount: Floor-mounted
- Construction: 3/16″-thick steel
- Footplate: 6″ × 7-3/4″ with (4) 5/8″-dia. anchor holes
- Heights: 12″ · 18″ · 24″
A floor-mounted steel upright protector that shields the base of the rack frame where forklift and pallet-jack strikes concentrate. Built from heavy 5-gauge steel with a V-face and anchored to the slab on a four-hole plate. Available in 12″, 18″ and 24″ heights across a range of column widths, powder-coated safety yellow.
- Mount: Floor-mounted · (4) 1/2″-dia. wedge anchors
- Construction: 5-gauge steel, V-face
- Heights: 12″ · 18″ · 24″
- Fits: 4.5″–8.5″ inside width (all uprights & baseplates)
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
