Hand Rail

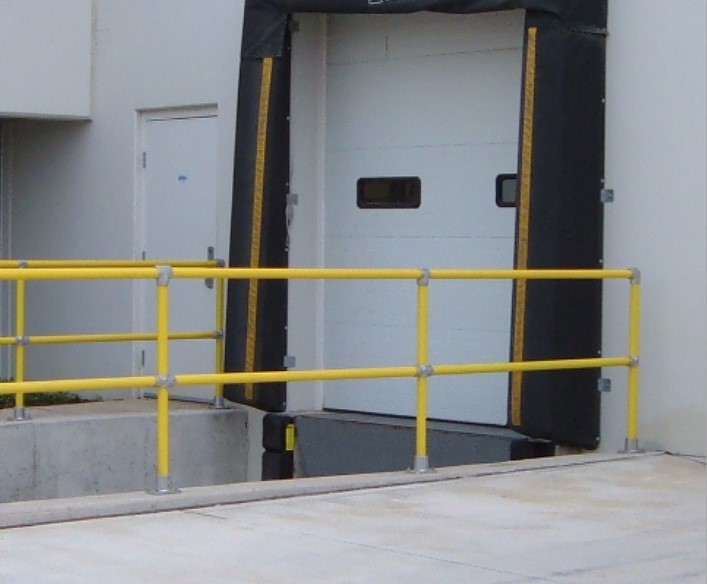

Modular steel handrail that guards stair sides, platform and mezzanine edges, and open floor holes with a 42″ top rail, mid rail, and optional toe board to meet OSHA 1910.29. Interchangeable end, corner, center, and base fittings slot onto standard pipe lengths and can be field-cut for an exact fit. Powder-coated high-visibility yellow · anchors down fast for permanent or reconfigurable runs.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Rail sections are field-cut to fit, so these are the stock lengths to order against rather than an exact run. Posts, and the end, corner, centre and base fittings, slot onto 1.66″ O.D. pipe and are quoted with the layout — send us the run and we will work them out.
| Type | Rail Length | Length | Price | Qty | |
|---|---|---|---|---|---|
| Rail section | 4 ft | — | Quote | ||
| Rail section | 6 ft | — | Quote | ||
| Rail section | 8 ft | — | Quote | ||
| Toe board (optional) | — | 48″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
