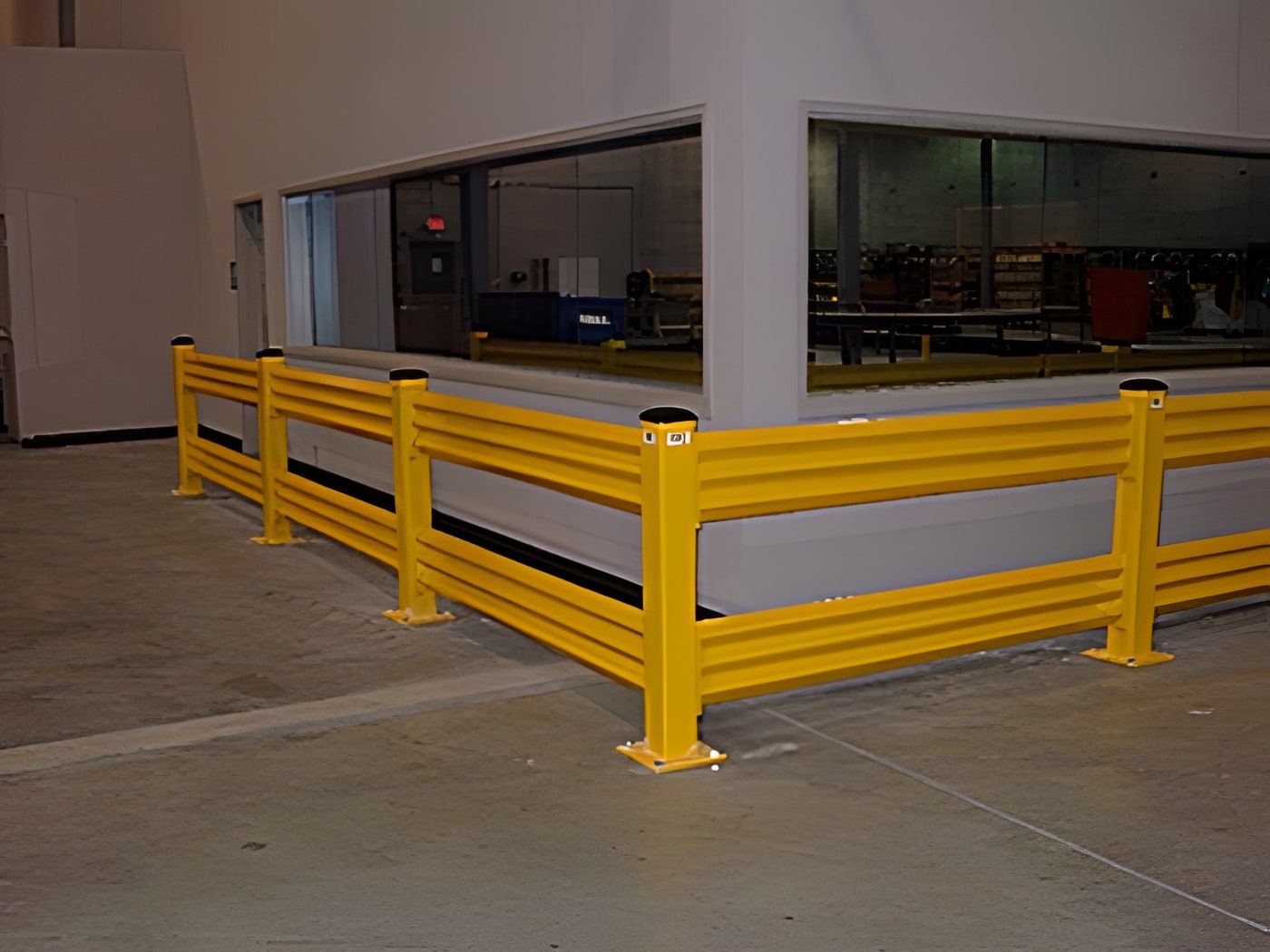

Pedestrian Safety Rail
The Stand Guard rail specified for separating people from truck traffic — the same drop-in ribbed rail sold here as Lite, Standard and Heavy Duty, chosen by the duty the aisle actually sees. Ribbed rails lift out of the posts for fast repairs with no loose hardware, and the 42″ top rail meets OSHA fall-protection height. Floor-anchored for indoor or outdoor use · powder-coated safety yellow. Pick the tier on impact rating: 5,000 lbs at 5 mph for pallet-truck aisles, 10,000 for mixed traffic, 12,000 where a loaded counterbalance truck can reach the barrier at speed.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
This is the same drop-in ribbed rail sold here as Lite, Standard and Heavy Duty guardrail — the duty tier sets the impact rating (5,000 / 10,000 / 12,000 lbs at 5 mph) and the post, not the rail. Rail lengths are on post centres; lite-duty rails start at 4 ft rather than 2 ft. Tell us the run and the traffic and we will pick the tier with you.
| Type | Rail Length | Height | Price | Qty | |
|---|---|---|---|---|---|
| Rail | 2 ft | — | Quote | ||
| Rail | 3 ft | — | Quote | ||
| Rail | 4 ft | — | Quote | ||
| Rail | 5 ft | — | Quote | ||
| Rail | 6 ft | — | Quote | ||
| Rail | 7 ft | — | Quote | ||
| Rail | 8 ft | — | Quote | ||
| Rail | 9 ft | — | Quote | ||
| Rail | 10 ft | — | Quote | ||
| Post, 4″ (lite / standard) | — | 18″ | Quote | ||
| Post, 4″ (lite / standard) | — | 26″ | Quote | ||
| Post, 4″ (lite / standard) | — | 42″ | Quote | ||
| Post, 5″ (heavy duty) | — | 18″ | Quote | ||
| Post, 5″ (heavy duty) | — | 42″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
