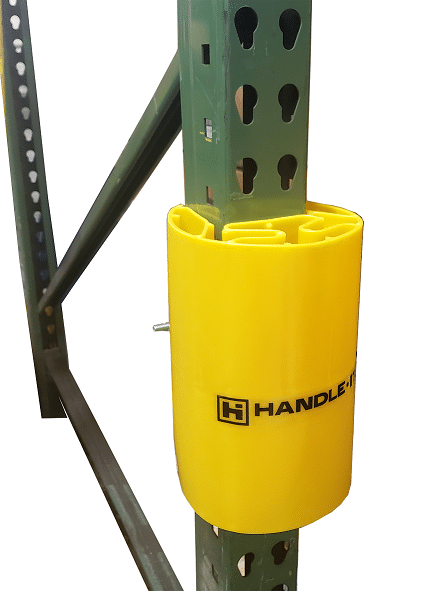

HDPE Post Upright Rack Protector
A molded high-density-polyethylene guard that snaps onto the upright, for bays where a steel guard is more than the traffic warrants. The color runs through the plastic, so there is no paint to flake or chip, and a backside bolt tightens it to the column to stop it sliding. Stands 9″ tall to fit 3″×3″ posts in safety yellow.
Technical Specifications
Related products
A column protection guard with a patented hybrid design of rubber elastomers and steel, combining the impact absorption of rubber with the durability of steel. The manufacturer's own frontal-impact data claims the elastic compound and U-shaped steel insert cut peak column stress by as much as 72%, and the 12″-tall guard installs with no hardware over the footplate to protect both front and side impacts.
- Size: 12″ tall × 5-1/2″ wide (5″ tall version available)
- Design: Hybrid rubber elastomer + U-shaped steel insert
- Performance: Up to 72% lower peak column stress in frontal impact (manufacturer-stated)
- Fits: Roll-formed or structural columns, 3″ wide and up to 3″ deep
The manufacturer's most popular post protector for reach-truck applications, shielding rack uprights from forklift impacts. The 4″-high V-nose is built from 5/16″-thick steel to absorb outrigger impact and mounts above the footplate with a 3/4″-diameter floor anchor.
- Height: 4″ high (fits under low beam levels)
- Construction: 5/16″-thick steel
- Fits: 3″-wide rack columns (others available)
- Mounting: 3/4″-dia. floor anchor (sold separately)
A floor-mounted pallet rack column guard that protects the bottom portion of the frame where most outrigger and forklift damage occurs. Built from 3/16″-thick steel and available in 12″, 18″ or 24″ heights to suit different exposure levels.
- Mount: Floor-mounted
- Construction: 3/16″-thick steel
- Footplate: 6″ × 7-3/4″ with (4) 5/8″-dia. anchor holes
- Heights: 12″ · 18″ · 24″
