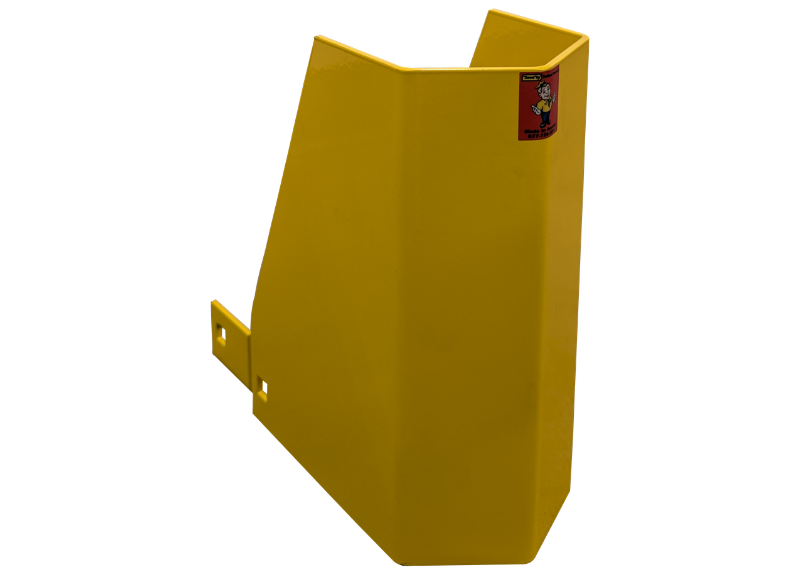

Hidden Anchor Post Protector
A 12″-high, 9″-deep guard that anchors both in front of and behind the upright, leaving no baseplate projecting into the aisle. Because nothing protrudes past the frame line, it avoids the trip hazard and pallet-jack snag that a conventional footplate creates in a busy pick aisle. Built from 3/16″ steel with a 5″ clear opening.
Technical Specifications
Related products
The manufacturer's most popular post protector for reach-truck applications, shielding rack uprights from forklift impacts. The 4″-high V-nose is built from 5/16″-thick steel to absorb outrigger impact and mounts above the footplate with a 3/4″-diameter floor anchor.
- Height: 4″ high (fits under low beam levels)
- Construction: 5/16″-thick steel
- Fits: 3″-wide rack columns (others available)
- Mounting: 3/4″-dia. floor anchor (sold separately)
A floor-mounted pallet rack column guard that protects the bottom portion of the frame where most outrigger and forklift damage occurs. Built from 3/16″-thick steel and available in 12″, 18″ or 24″ heights to suit different exposure levels.
- Mount: Floor-mounted
- Construction: 3/16″-thick steel
- Footplate: 6″ × 7-3/4″ with (4) 5/8″-dia. anchor holes
- Heights: 12″ · 18″ · 24″
A floor-mounted steel upright protector that shields the base of the rack frame where forklift and pallet-jack strikes concentrate. Built from heavy 5-gauge steel with a V-face and anchored to the slab on a four-hole plate. Available in 12″, 18″ and 24″ heights across a range of column widths, powder-coated safety yellow.
- Mount: Floor-mounted · (4) 1/2″-dia. wedge anchors
- Construction: 5-gauge steel, V-face
- Heights: 12″ · 18″ · 24″
- Fits: 4.5″–8.5″ inside width (all uprights & baseplates)
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
