JiffyRail Platform Guard Rail
Zinc-plated pipe rail that goes up without welding or threading: the tee and cross fittings come pre-welded to the posts, and rails slide through and tighten in place. Layouts are designed to your floor plan, mounted on top of a platform, on its side, or on rack uprights. It is used on platforms, pick modules, walkways and loading docks, indoors or out.

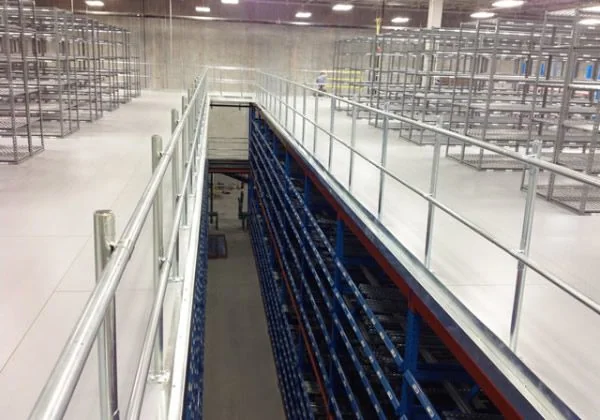

JiffyRail Mezzanine Platform Guard Rail Installation
Technical Specifications
Related products
A modular steel guard rail for mezzanine and platform edges: square-tube rails on 2-1/2″ HSS uprights, bolted to the outside of the framing so no deck space is lost. It comes 2- to 5-rail, in square or round tube, with a 14-gauge kick plate and optional expanded-metal or picket infill. Laid out to suit your platform.
- Rails: 14 ga 1-1/2″ × 1-1/2″ square tube (round tube optional), 2- to 5-rail
- Uprights: 2-1/2″ × 2-1/2″ × 1/8″ HSS
- Mounting: Side-mounted to framing with 1/2″ A325 bolts; surface mount optional
- Kick plate: 14 gauge
A self-closing pallet gate built from six independent spring-loaded arms on integrated casters, so a strike damages one arm rather than the whole gate — and that arm is replaced individually. The arms close behind the load automatically, keeping a barrier at the edge whether the pallet is in place or not. Widths of 4, 6 and 8 ft at 42″ high, with clearances of 48″, 72″ and 96″ for roll-formed and structural rack.
- Height: 42″
- Widths: 4 ft · 6 ft · 8 ft
- Clearances: 48″ · 72″ · 96″
- Arms: 6 independent spring-loaded arms, individually replaceable
An all-welded tubular steel gate that pivots so one side is always closed: as the loading side opens, the edge side closes, and the worker is never exposed to the drop. The manufacturer cites OSHA fall-protection requirements for elevated work surfaces (29 CFR 1910.28 / 1910.29). Standing 79.5″ high and 66″ deep, in single-pallet (63″ W) and double-pallet (120″ W) versions with clear openings from 55″ to 120″.
- Height: 79.5″ · Depth 66″
- Single pallet: 63″ wide
- Double pallet: 120″ wide
- Clear openings: 55″ · 60″ · 72″ · 96″ · 108″ · 120″
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
