Pivot Safety Gate

A self-closing pallet gate built from six independent spring-loaded arms on integrated casters, so a strike damages one arm rather than the whole gate — and that arm is replaced individually. The arms close behind the load automatically, keeping a barrier at the edge whether the pallet is in place or not. Widths of 4, 6 and 8 ft at 42″ high, with clearances of 48″, 72″ and 96″ for roll-formed and structural rack.

• Height: 42″
• Widths: 4 ft · 6 ft · 8 ft
• Clearances: 48″ · 72″ · 96″
• Arms: 6 independent spring-loaded arms, individually replaceable

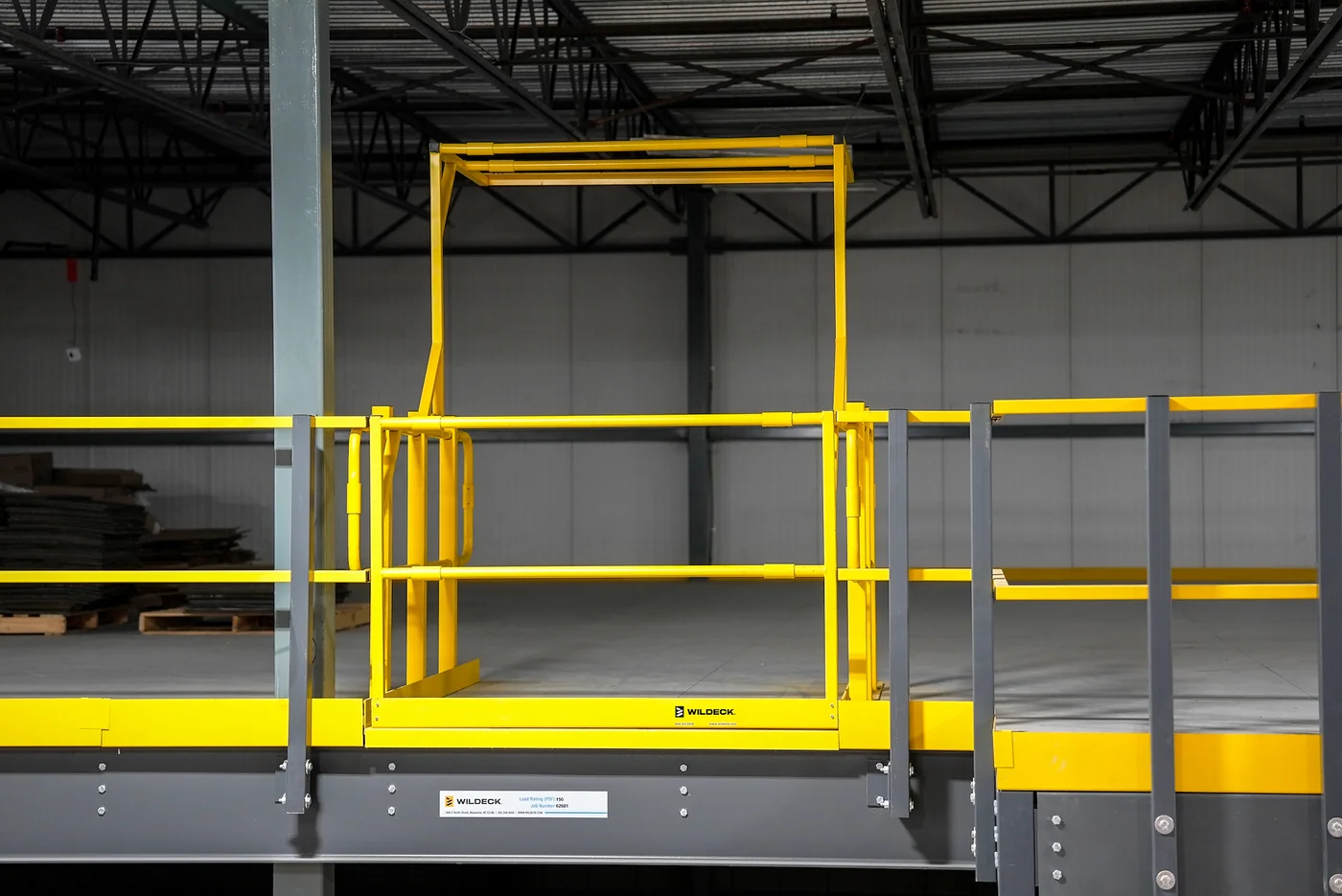

An all-welded tubular steel gate that pivots so one side is always closed: as the loading side opens, the edge side closes, and the worker is never exposed to the drop. The manufacturer cites OSHA fall-protection requirements for elevated work surfaces (29 CFR 1910.28 / 1910.29). Standing 79.5″ high and 66″ deep, in single-pallet (63″ W) and double-pallet (120″ W) versions with clear openings from 55″ to 120″.

• Height: 79.5″ · Depth 66″
• Single pallet: 63″ wide
• Double pallet: 120″ wide
• Clear openings: 55″ · 60″ · 72″ · 96″ · 108″ · 120″

A pallet gate that rotates up into a vertical cradle, for openings with little floor space either side, and you need overhead room equal to the gate width. It stays hinged to its centre post throughout, so it cannot be dropped over the edge. Closed, it gives a 42″ rail with toe board.

• Openings: 4 ft to 8 ft (custom sizes available)
• Vertical clearance: Equal to the gate width
• Height: 42″ rail with toe board
• Construction: 1-1/2″ dia. steel tube; 3″ × 3″ posts on 6″ × 6″ base plates
