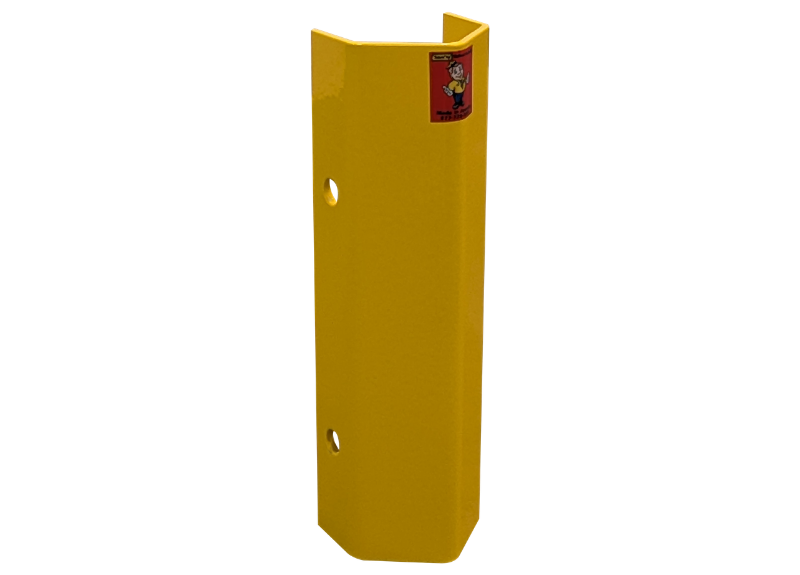

Side Mount Post Protector
A post protector that bolts to the sides of the upright rather than the floor, so it can be fitted at any beam level instead of only at the base. Formed from 3/16″ steel in 12″ and 24″ heights, it suits bays where a floor-anchored guard would foul pallet placement or where damage is occurring above the first beam. Clearances cover standard 3-1/8″ and 4.1″ columns plus a Mecalux-specific 3.25″ option.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
| Height | Price | Qty | |
|---|---|---|---|
| 12″ | Quote | ||
| 24″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
