Steel Guard Rail
A bolted steel industrial guard rail that protects machinery, walkways, in-plant offices, personnel and inventory from forklift damage. Four-way posts are punched on all sides to build any barrier shape, and the system is powder coated safety yellow for maximum visibility.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts

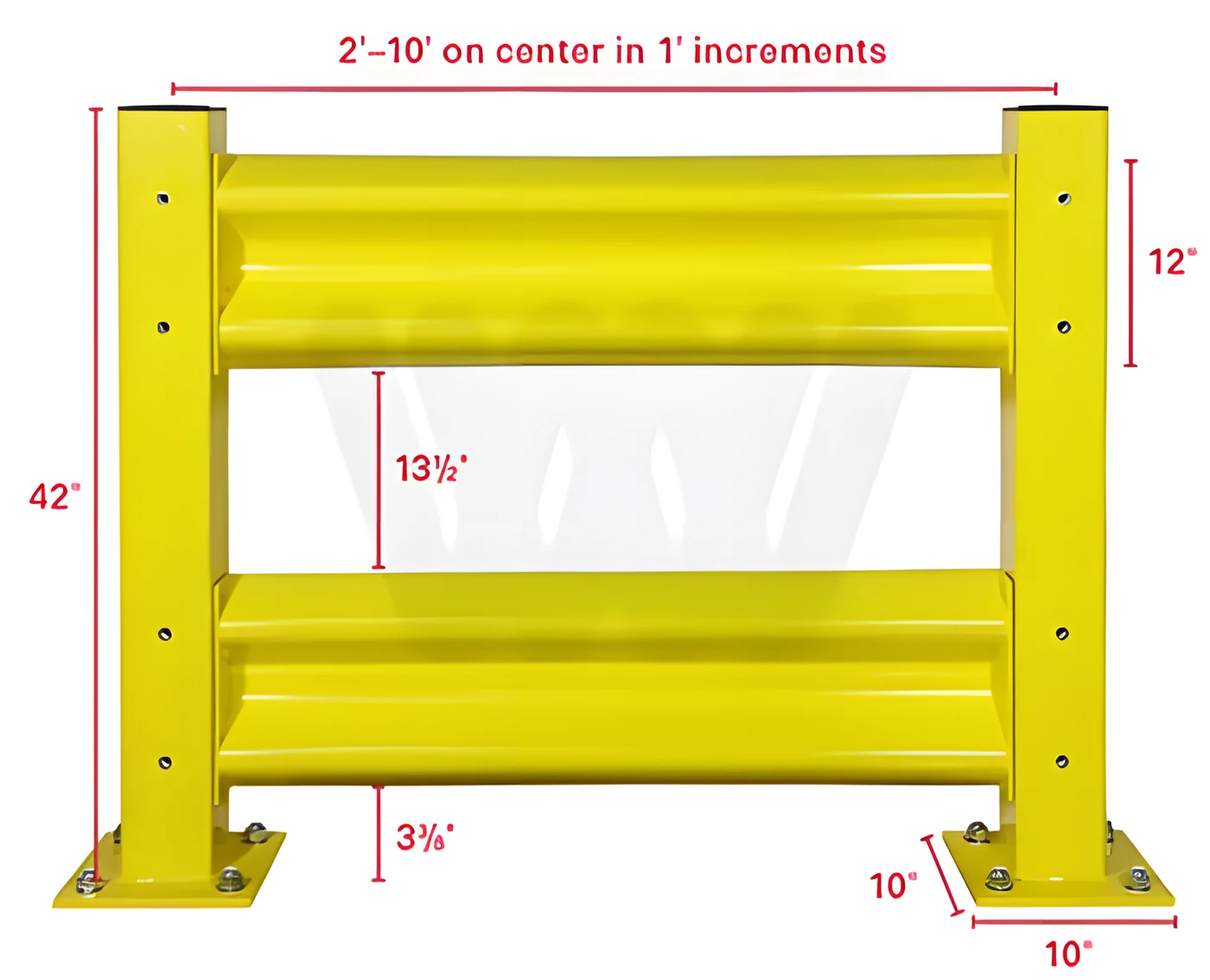

Rails and posts are ordered separately — both are in the table. Rail lengths are on post centres. The four-way post is punched on all sides, so the same post serves corners, ends, tees and inline runs; it sits on a 10″ × 10″ × 1/2″ footplate. A straight run needs one more post than rails.
| Type | Rail Length | Height | Price | Qty | |
|---|---|---|---|---|---|
| Rail | 2 ft | — | Quote | ||
| Rail | 3 ft | — | Quote | ||
| Rail | 4 ft | — | Quote | ||
| Rail | 5 ft | — | Quote | ||
| Rail | 6 ft | — | Quote | ||
| Rail | 7 ft | — | Quote | ||
| Rail | 8 ft | — | Quote | ||
| Rail | 9 ft | — | Quote | ||
| Rail | 10 ft | — | Quote | ||
| Four-way post | — | 18″ | Quote | ||
| Four-way post | — | 42″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
Related products
Heavy structural-steel angle rail that bolts flat to the floor to keep forklifts and AGVs on line down aisles and guide them safely into dock approaches, past walls, and along equipment runs. All-welded gussets and radiused entry curves deflect wheel contact and shield rack ends and structural legs from over-steer. Surface-mounted on regular anchor centers with no concrete work · powder-coated safety yellow.
- Rail: 5″-tall structural steel angle (also 3″×4″ / 4″×4″)
- Material: 5/16″-thick steel · ~8.4 lb/ft
- Standard lengths: 9.5 ft and 10 ft sections, coupled for continuous runs
- Install: Floor-anchored, holes on ~24″ centers; entry guide curves
A low barrier that mounts flush to the floor and stands 12″ tall, so forks and pushed product cannot slide under or through it. Use it as a wall guard, around conveyors and machinery, or as a pallet stop where a full-height guard rail is more than the job needs.
- Height: 12″
- Mounting: Flush to the floor
- Use as: Wall guard · conveyor and machine guard · pallet stop
The lightest tier of the drop-in guardrail range, rated by the manufacturer at 5,000 lbs at 5 mph. Built from 14-gauge steel on 4″ × 4″ posts with 8″ × 8″ × 1/2″ base plates, it is sized for electric pallet trucks, powered stackers, manual jacks and push carts rather than counterbalance forklifts. Rails drop into welded post sleeves and lift out again, so a damaged section is swapped without loose hardware.
- Impact rating: 5,000 lbs at 5 mph (manufacturer-stated)
- Rail: 14-gauge ribbed steel, 4 ft–10 ft in 1 ft increments
- Post: 4″ × 4″, 42″ high
- Base plate: 8″ × 8″ × 1/2″
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
