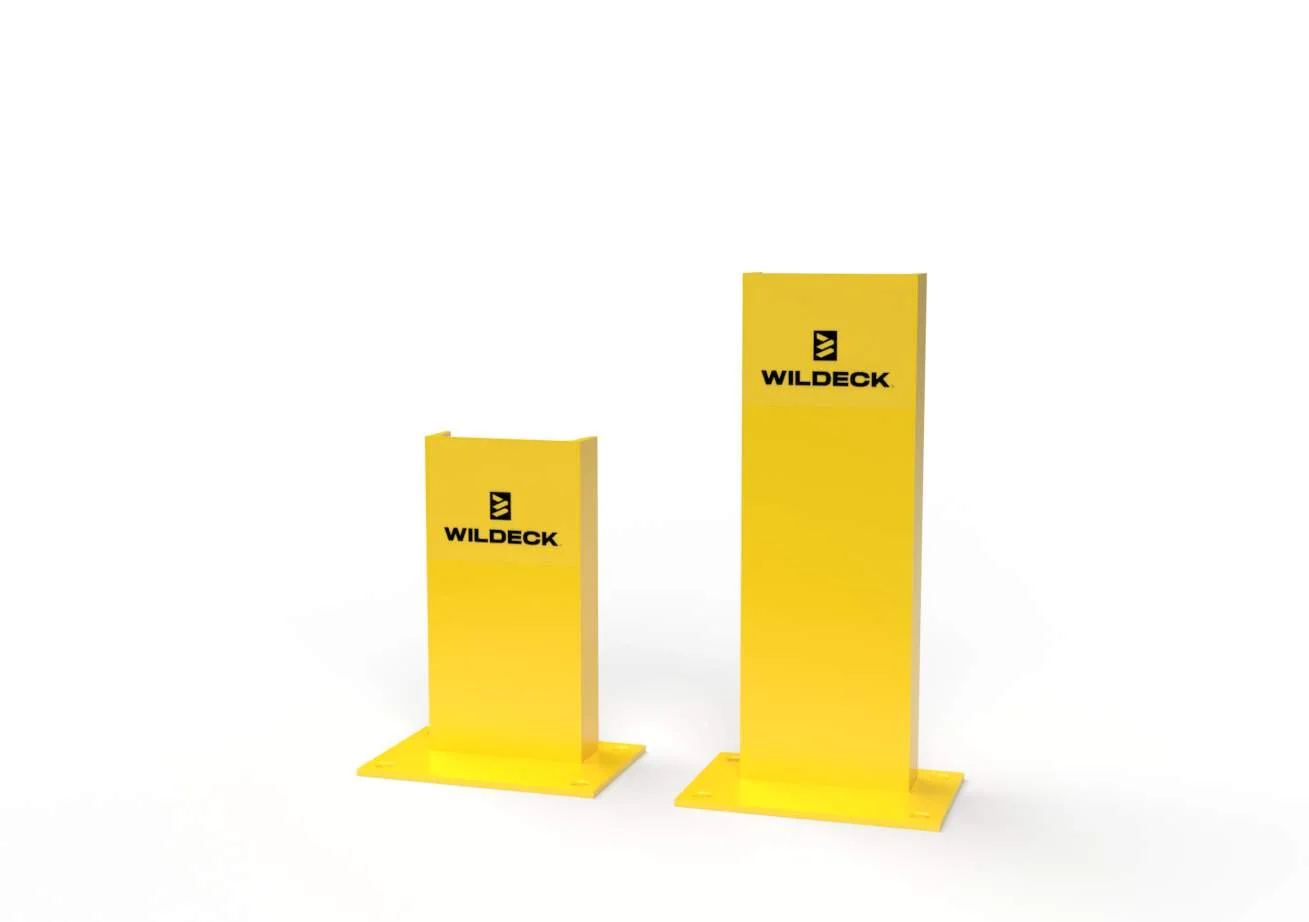

Upright Rack Protectors
A structural steel channel on a four-hole base plate that sits in front of an in-aisle rack upright and takes the forklift, hand-truck or cart strike instead. Made for 3″ and 4″ uprights in 12″, 18″, 24″ and 36″ heights. The manufacturer recommends its optional flush-head anchors so the bolt heads don't catch truck tires.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Choose the upright width first, then the height of the zone you need covered. Anchors are separate: the manufacturer's flush-mount anchors come in packs of 4 (with or without a setting tool) or 50.
| Fits Column Width | Height | Price | Qty | |
|---|---|---|---|---|
| 3″ | 12″ | Quote | ||
| 3″ | 18″ | Quote | ||
| 3″ | 24″ | Quote | ||
| 3″ | 36″ | Quote | ||
| 4″ | 12″ | Quote | ||
| 4″ | 18″ | Quote | ||
| 4″ | 24″ | Quote | ||
| 4″ | 36″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
Related products
The manufacturer's most popular post protector for reach-truck applications, shielding rack uprights from forklift impacts. The 4″-high V-nose is built from 5/16″-thick steel to absorb outrigger impact and mounts above the footplate with a 3/4″-diameter floor anchor.
- Height: 4″ high (fits under low beam levels)
- Construction: 5/16″-thick steel
- Fits: 3″-wide rack columns (others available)
- Mounting: 3/4″-dia. floor anchor (sold separately)
A floor-mounted pallet rack column guard that protects the bottom portion of the frame where most outrigger and forklift damage occurs. Built from 3/16″-thick steel and available in 12″, 18″ or 24″ heights to suit different exposure levels.
- Mount: Floor-mounted
- Construction: 3/16″-thick steel
- Footplate: 6″ × 7-3/4″ with (4) 5/8″-dia. anchor holes
- Heights: 12″ · 18″ · 24″
A floor-mounted steel upright protector that shields the base of the rack frame where forklift and pallet-jack strikes concentrate. Built from heavy 5-gauge steel with a V-face and anchored to the slab on a four-hole plate. Available in 12″, 18″ and 24″ heights across a range of column widths, powder-coated safety yellow.
- Mount: Floor-mounted · (4) 1/2″-dia. wedge anchors
- Construction: 5-gauge steel, V-face
- Heights: 12″ · 18″ · 24″
- Fits: 4.5″–8.5″ inside width (all uprights & baseplates)
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
