Wilgard MT End-of-Aisle Rack Protector

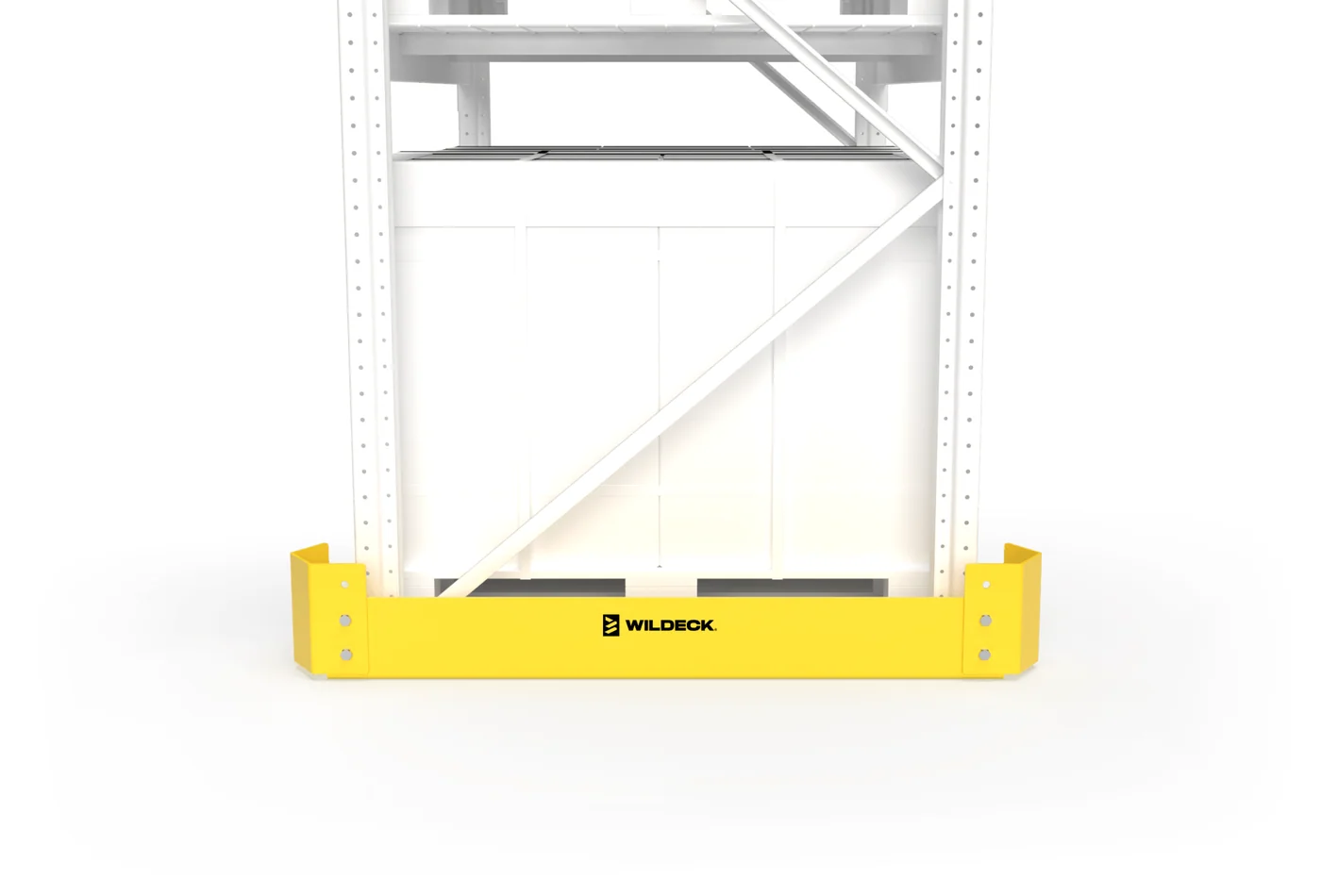

A bolt-together end-of-aisle protector: a 1/4″ steel floor angle with an 8″ protector head on one or both ends, sized for 42″ or 48″ rack bays. Because the heads bolt on rather than being welded, the same angle makes a left, right or double-head unit, and heads and angles are sold separately as replacement parts. It is the medium-duty, lower-cost option to the XT, built in Wisconsin and shipped with anchors.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Width is the rack bay the kit is made for, not its overall length: the heads wrap the uprights, so a 42″ double-head kit is about 48″ end to end. Use left and right single-head kits on back-to-back rows. Heads and angles are also sold on their own for repairs.
| Type | Width | Height | Price | Qty | |
|---|---|---|---|---|---|
| Double-head kit (WRPMTBT42-DOS) | 42″ | — | Quote | ||
| Left-head kit (WRPMTBT42-LOS) | 42″ | — | Quote | ||
| Right-head kit (WRPMTBT42-ROS) | 42″ | — | Quote | ||
| Double-head kit (WRPMTBT48-DOS) | 48″ | — | Quote | ||
| Left-head kit (WRPMTBT48-LOS) | 48″ | — | Quote | ||
| Right-head kit (WRPMTBT48-ROS) | 48″ | — | Quote | ||
| Spare floor angle (WRPMTBT42-EX) | 42″ | — | Quote | ||
| Spare floor angle (WRPMTBT48-EX) | 48″ | — | Quote | ||
| Spare protector head (WG71F) | — | 8″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
Related products
A heavy end-of-aisle rack protector for severe environments and high-traffic intersecting aisles, protecting the entire depth of the upright where most damage occurs. Built with 5/16″-thick construction on a pre-punched angle base and available in right, left or double-end designs.
- Height: 12″ tall
- Construction: 5/16″-thick steel
- Base: 5″ × 3″ × 7/16″-thick steel angle, pre-punched
- Mounting: 3/4″-dia. anchors (sold separately)
A 5 mm steel guard that wraps the exposed corner of an end-of-row upright, doorway or wall corner to take the brunt of forklift strikes. Floor-mounted on an 8″ × 8″ base plate with three 1/2″ wedge anchors, it leaves a 6″ × 6″ clearance around the column. Available in 12″, 18″, 24″ and 42″ heights, powder-coated safety yellow.
- Mount: Floor-mounted · (3) 1/2″-dia. wedge anchors
- Construction: 5 mm (1/5″) thick steel
- Heights: 12″ · 18″ · 24″ · 42″
- Base plate: 8″ × 8″ (6″ × 6″ inside clearance)
A floor-mounted guard that runs the depth of the end frame and curves outward into the aisle, taking the hit before a truck reaches the upright. Standard duty is an 8″ upright on 5″ × 3″ angle in 1/4″ steel; heavy duty steps up to a 12″ upright on 6″ × 4″ angle in 1/2″ steel for intersecting aisles and high-traffic ends. Ordered left, right or double-sided in 42″ and 48″ lengths.
- Lengths: 42″ · 48″
- Configurations: Left · Right · Double
- Standard duty: 8″ upright · 5″ × 3″ angle · 1/4″ steel
- Heavy duty: 12″ upright · 6″ × 4″ angle · 1/2″ steel
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
