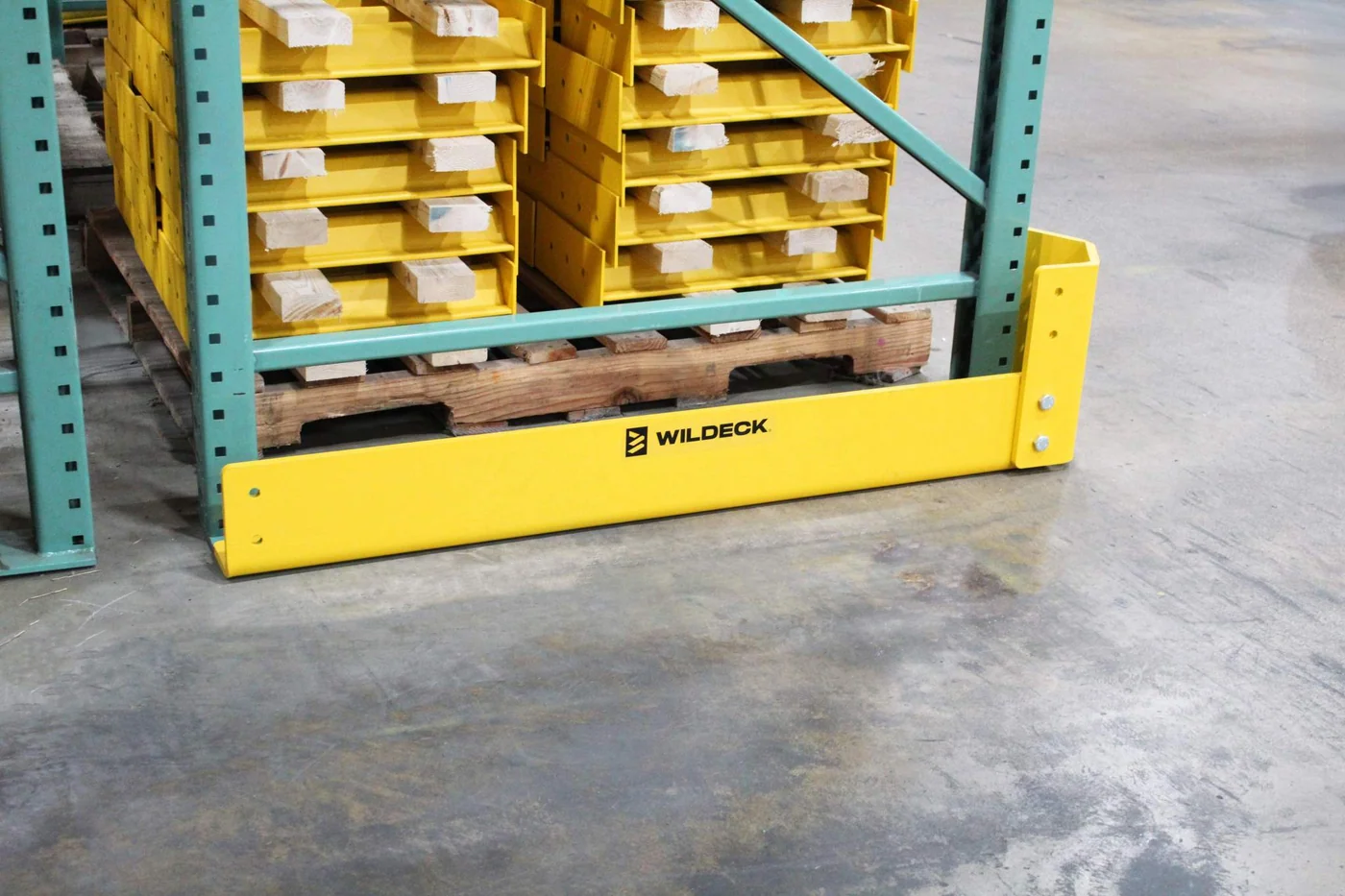

Wilgard XT End-of-Aisle Rack Protector
The heavy version of the Wilgard bolt-together end-of-aisle protector: 1/2″-thick structural steel throughout, with a 12″ head on a 4″ × 6″ floor angle, for high-traffic row ends. Bolt the head to either end, or both, for left, right or double-head protection on 42″ or 48″ bays; heads and angles are also sold separately as replacement parts. Built in Wisconsin and shipped with anchors.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Width is the rack bay the kit is made for, not its overall length: a 42″ double-head kit is about 49″ end to end. Use left and right single-head kits on back-to-back rows. Heads and angles are also sold on their own for repairs.
| Type | Width | Height | Price | Qty | |
|---|---|---|---|---|---|
| Double-head kit (WRPXTBT42-DOS) | 42″ | — | Quote | ||
| Left-head kit (WRPXTBT42-LOS) | 42″ | — | Quote | ||
| Right-head kit (WRPXTBT42-ROS) | 42″ | — | Quote | ||
| Double-head kit (WRPXTBT48-DOS) | 48″ | — | Quote | ||
| Left-head kit (WRPXTBT48-LOS) | 48″ | — | Quote | ||
| Right-head kit (WRPXTBT48-ROS) | 48″ | — | Quote | ||
| Spare floor angle (WRPXTBT42-EX) | 42″ | — | Quote | ||
| Spare floor angle (WRPXTBT48-EX) | 48″ | — | Quote | ||
| Spare protector head (WG70F) | — | 12″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
