Wire Mesh Partitions

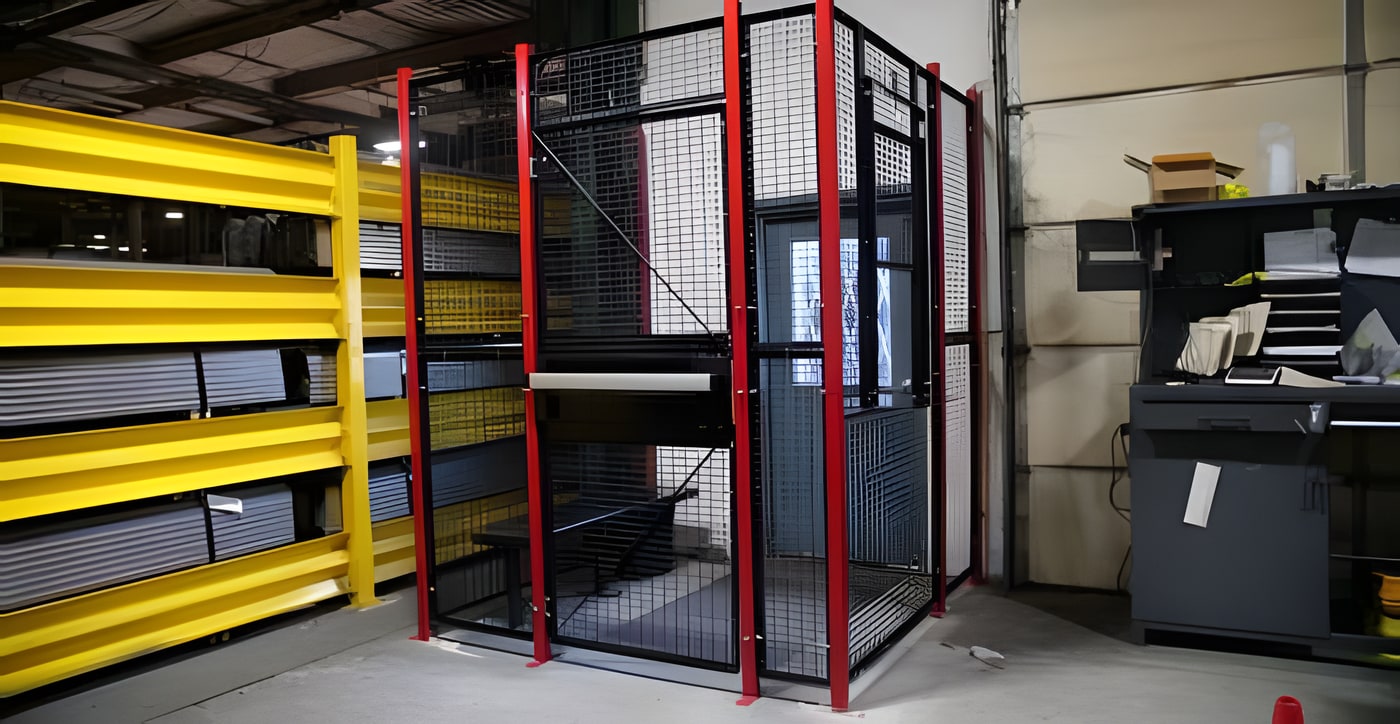

Floor-to-ceiling wire partition walls that divide open warehouse space into secured rooms, tool cribs, and controlled-access areas such as DEA and pharmacy cages. Panels of 10-gauge, 2″ × 1″ woven mesh weld into 1-1/4″ steel angle and bolt to 2″ square, 14-gauge posts, building any run or corner in one-foot increments. Panels ship 4′ and 5′ high and stack to 8′ or 10′ walls, with matching hinged and sliding doors.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
These are our primary supplier's twenty standard panels; the alternate supplier's panels are sized differently and are quoted to your run. Panels stack — a 4′ over a 4′ gives an 8′ wall, a 5′ over a 5′ gives 10′. Order the panels you need and we will work out posts, doors and hardware with you.
| Type | Rail Length | Price | Qty | |
|---|---|---|---|---|
| Panel, 4′ high | 1 ft | Quote | ||
| Panel, 5′ high | 1 ft | Quote | ||
| Panel, 4′ high | 2 ft | Quote | ||
| Panel, 5′ high | 2 ft | Quote | ||
| Panel, 4′ high | 3 ft | Quote | ||
| Panel, 5′ high | 3 ft | Quote | ||
| Panel, 4′ high | 4 ft | Quote | ||
| Panel, 5′ high | 4 ft | Quote | ||
| Panel, 4′ high | 5 ft | Quote | ||
| Panel, 5′ high | 5 ft | Quote | ||
| Panel, 4′ high | 6 ft | Quote | ||
| Panel, 5′ high | 6 ft | Quote | ||
| Panel, 4′ high | 7 ft | Quote | ||
| Panel, 5′ high | 7 ft | Quote | ||
| Panel, 4′ high | 8 ft | Quote | ||
| Panel, 5′ high | 8 ft | Quote | ||
| Panel, 4′ high | 9 ft | Quote | ||
| Panel, 5′ high | 9 ft | Quote | ||
| Panel, 4′ high | 10 ft | Quote | ||
| Panel, 5′ high | 10 ft | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
