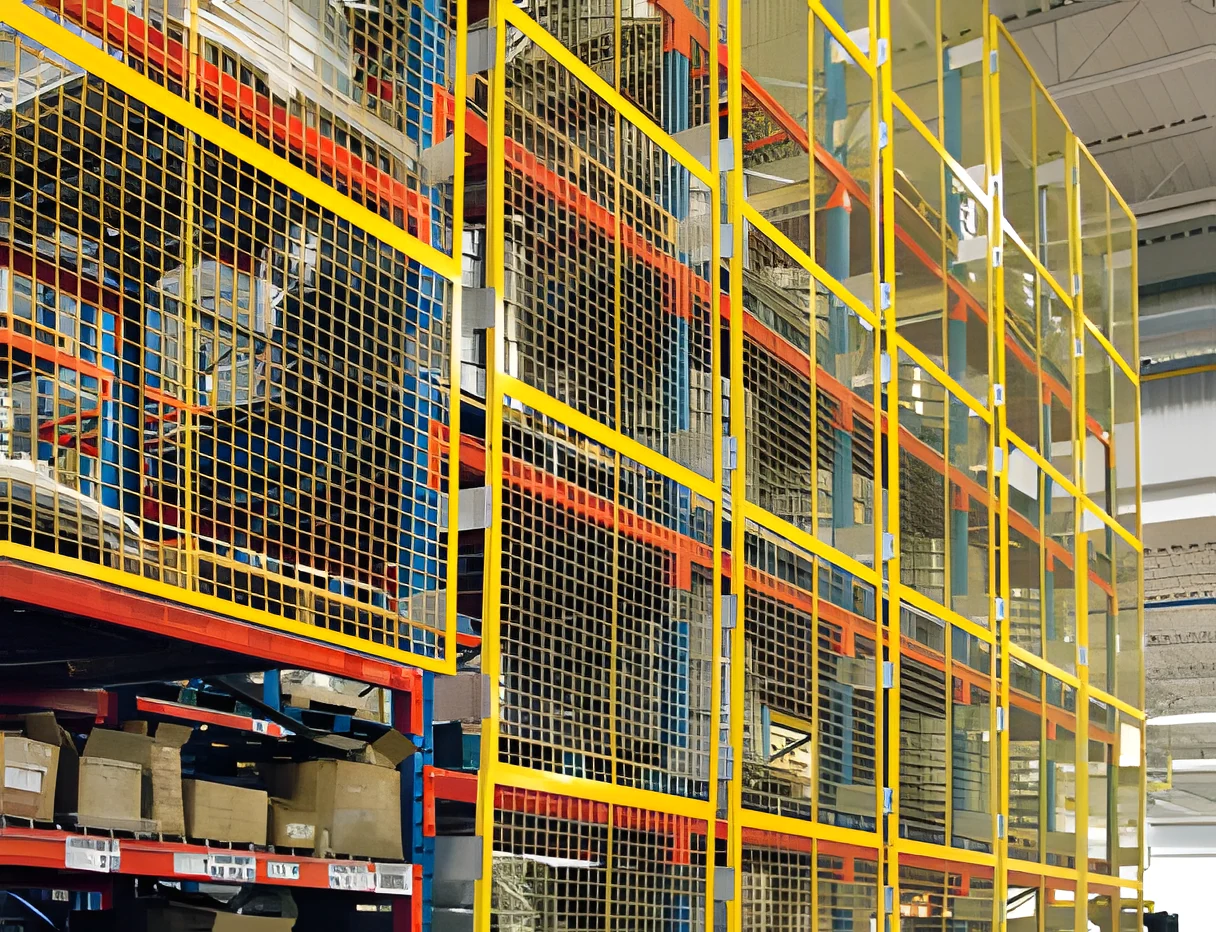

Wire Mesh Rack Guards
All-welded panels of 2″ × 2″ × 10 GA mesh in a 1-1/4″ × 1-1/4″ × 12 GA angle frame, fixed to the back or ends of a bay as a rigid alternative to netting. Where a net stretches and needs periodic inspection for cuts and broken webbing, a welded panel either is intact or is visibly damaged, which is why it is often specified over pick faces and pedestrian routes. Flush, offset and special-angle brackets cover pallet overhang and panels extending above the top beam.
Technical Specifications
Related products
Welded-wire back-guard panels that bolt to the rear uprights of standard pallet rack to stop product push-through into aisles and protect pedestrians below — the secure-storage duty OSHA 1910.176(b) puts on you. Built from 10-gauge steel wire welded into 2″ × 2″ mesh on a steel angle frame, panels stack to any height and start at the floor or any level where protection is required. Stocked in 1-ft width increments in 4′ and 5′ heights, with flush or offset mounting for overhanging loads.
- Type: Welded-wire back-guard panel
- Material: 10-ga wire · 2″ × 2″ mesh · steel angle frame
- Function: Stops product push-through into aisles / protects pedestrians
- Mounting: Bolts to rear uprights · flush or offset for overhang
Warehouse safety netting for pallet rack: woven mesh that spans the back or ends of a bay to catch product and debris before it falls into aisles or onto pedestrians, which is the secure-storage duty OSHA 1910.176(b) puts on you. It hooks to standard teardrop or slotted uprights and keeps the longitudinal flue space clear for sprinklers. Standard bay sizes stock from 8′ to 13′ wide, with custom and offset versions for overhanging loads.
- Type: Woven-mesh rack guard / debris net
- Function: Catches falling product/debris off the back or ends of a bay
- Mounting: Hooks to standard teardrop or slotted uprights
- Sizing: Standard bay widths, with custom and offset versions
Heavy 2″ polyester webbing straps that span the back or side of a bay as a rear stop, keeping palletized and shrink-wrapped loads from pushing through into the flue space or falling into aisles — a tool-free alternative to a backstop beam, and one way of meeting the secure-storage duty OSHA 1910.176(b) puts on you. They mount flush to standard rear uprights with teardrop, slotted, structural, or J-hook hardware and remove for access in seconds. Standard lengths fit 4–13 ft bays, with custom sizes available.
- Type: Polyester webbing rear/side-stop strap
- Material: 2″ polyester webbing · ~2,400 lb assembly burst strength
- Function: Rear stop against pallet push-through into flue or aisle
- Mounting: Flush to rear uprights · teardrop, slotted, structural or J-hook
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
