Flue Space Divider

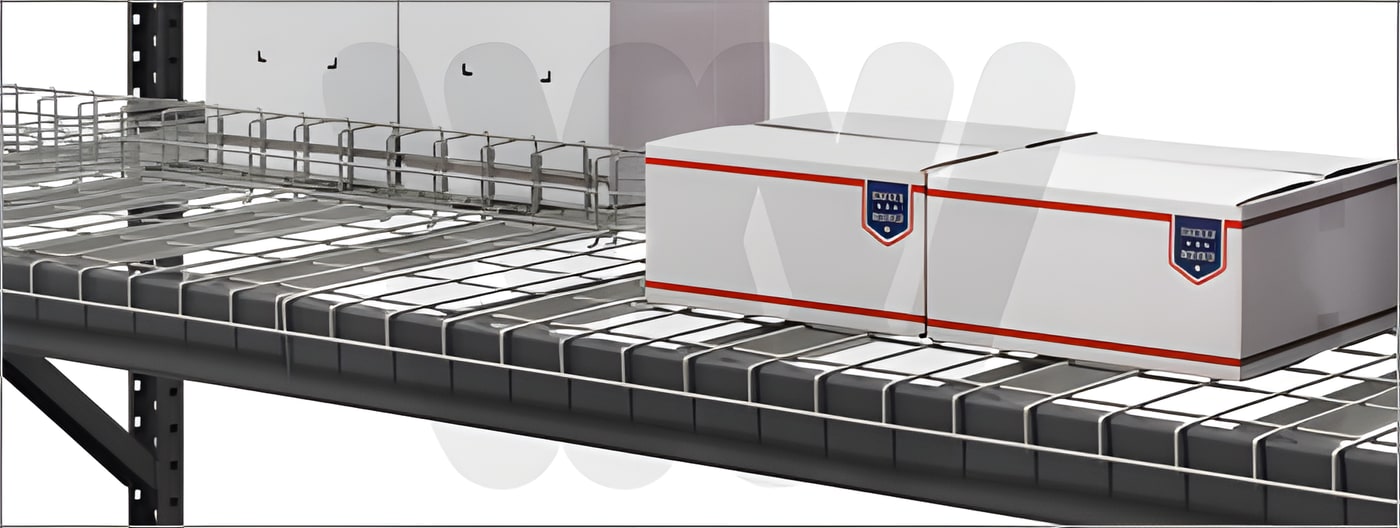

A wire mesh divider that stands up from a wire deck along the flue line, holding the transverse flue open between hand-stacked loads the way a flue keeper does at the post, and splitting the deck down the center so it can be picked from both aisles. Adds to new or existing wire mesh decking; custom sizes available.
Technical Specifications
Related products
A patented longitudinal flue space divider that maintains consistent flue spacing and prevents pallet push-through.
- Sizes: 12″ · 18″ · 24″
- Install: Tek screws included
The single-stop version of Flue Guard™. It mounts on one pallet rack beam instead of spanning a back-to-back pair, and stops pallets before they can be pushed through into the flue space. Stocked with a 3″ base flange in standard gray powder coat.
- Configuration: Single stop, mounts on one beam
- Stock size: 3″ base flange
The original transverse flue space keeper, designed to keep boxes from encroaching into the transverse flue space so sprinkler water can penetrate the pallet rack. The brackets also act as pallet safety stops at various elevations and install quickly on all major rack brands (US Patent #7,857,152).
- Standard size: 42″ × 3″
- Flue space: 3″ on each side of the post (6″ total)
- Members: Heavy-duty tube for frames up to 48″ (custom available)
- Function: Pallet safety stop at pallet or product levels
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
