Pallet Drop Zone Gate

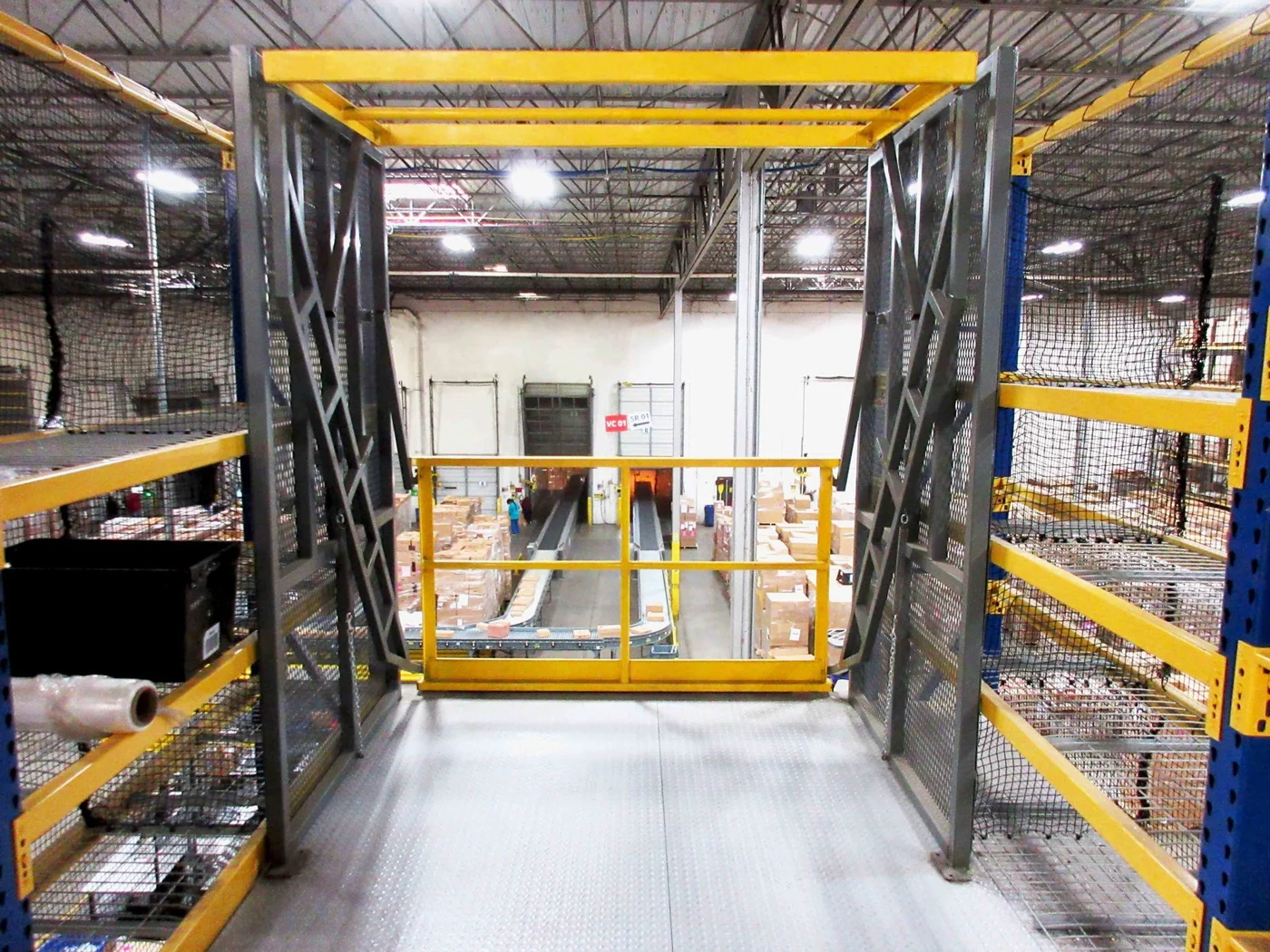

A true safety gate for pick modules and mezzanines: raise one side and the other closes, so the ledge is never open. The arms pivot at more than one point and swing up outside the side panels, which leaves room for taller pallets than a pivot gate. It bolts to most makers’ rack uprights or stands alone on the deck, with expanded-metal sides and a built-in kickplate.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Order by clear width and mounting. Every standard model clears a pallet 54″ deep and 86″ high. The arms swing above and outside the panels, and the maker sizes the swing space per model, so send us the bay dimensions with the request.
| Type | Clear Opening | Price | Qty | |
|---|---|---|---|---|
| Rack-mounted | 4 ft | Quote | ||
| Rack-mounted | 5 ft | Quote | ||
| Rack-mounted | 6 ft | Quote | ||
| Rack-mounted | 7 ft | Quote | ||
| Rack-mounted | 8 ft | Quote | ||
| Rack-mounted | 9 ft | Quote | ||
| Rack-mounted | 10 ft | Quote | ||
| Rack-mounted | 11 ft | Quote | ||
| Rack-mounted | 12 ft | Quote | ||
| Freestanding | 4 ft | Quote | ||
| Freestanding | 5 ft | Quote | ||
| Freestanding | 6 ft | Quote | ||
| Freestanding | 7 ft | Quote | ||
| Freestanding | 8 ft | Quote | ||
| Freestanding | 9 ft | Quote | ||
| Freestanding | 10 ft | Quote | ||
| Freestanding | 11 ft | Quote | ||
| Freestanding | 12 ft | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
Related products
A self-closing pallet gate built from six independent spring-loaded arms on integrated casters, so a strike damages one arm rather than the whole gate — and that arm is replaced individually. The arms close behind the load automatically, keeping a barrier at the edge whether the pallet is in place or not. Widths of 4, 6 and 8 ft at 42″ high, with clearances of 48″, 72″ and 96″ for roll-formed and structural rack.
- Height: 42″
- Widths: 4 ft · 6 ft · 8 ft
- Clearances: 48″ · 72″ · 96″
- Arms: 6 independent spring-loaded arms, individually replaceable
An all-welded tubular steel gate that pivots so one side is always closed: as the loading side opens, the edge side closes, and the worker is never exposed to the drop. The manufacturer cites OSHA fall-protection requirements for elevated work surfaces (29 CFR 1910.28 / 1910.29). Standing 79.5″ high and 66″ deep, in single-pallet (63″ W) and double-pallet (120″ W) versions with clear openings from 55″ to 120″.
- Height: 79.5″ · Depth 66″
- Single pallet: 63″ wide
- Double pallet: 120″ wide
- Clear openings: 55″ · 60″ · 72″ · 96″ · 108″ · 120″
A pallet-drop gate that keeps the edge guarded while it is loaded: raise one side and the other comes down, so there is always a rail between the platform and the drop. The frame is cut to width on site, from 10 ft down to 3 ft, which suits openings that aren’t a standard size. It takes pallets up to 6′-1″ high and 7′-1″ deep.
- Action: One side closes as the other opens
- Interior width: Cut to fit on site, 109-1/8″ down to 25-1/8″ (outside 120″ to 36″)
- Pallet clearance: 7′-1″ deep × 6′-1″ max pallet height
- Footprint: Outside width 120″ to 36″ × 84-1/2″ D × 85-7/16″ H
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
