Rotating Dock Gate

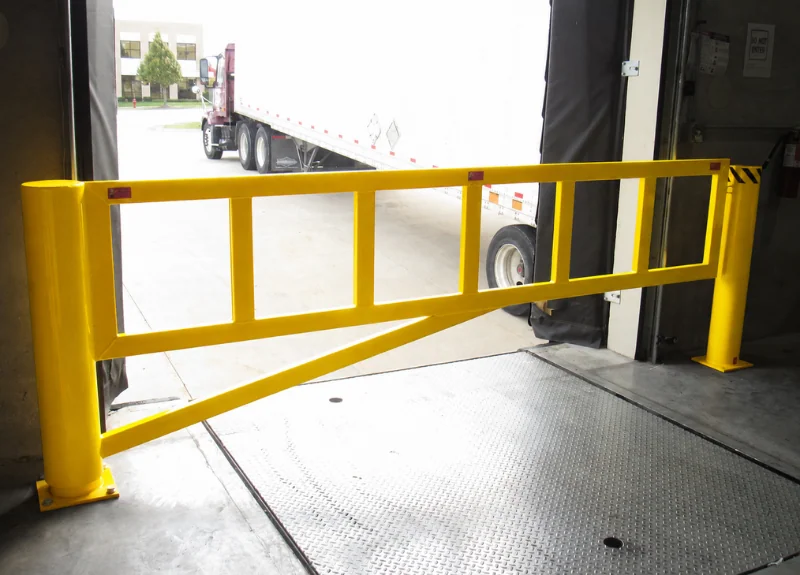

An all-welded steel gate that pivots across the dock opening when no trailer is docked, standing 42″ high so it reads as a barrier rather than a trip rail. It mounts over a 6″ × 42″ bollard, which means the bollard takes any impact instead of the gate hinge. Supplied in 5 ft to 14 ft widths in 1 ft increments, single or paired for wide openings.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Order by the clear opening the gate has to cover. Every width is 42″ high and mounts over a 6″ × 42″ bollard; wide openings can also be covered by a pair of gates rather than one long one.
| Clear Opening | Price | Qty | |
|---|---|---|---|
| 5 ft | Quote | ||
| 6 ft | Quote | ||
| 7 ft | Quote | ||
| 8 ft | Quote | ||
| 9 ft | Quote | ||
| 10 ft | Quote | ||
| 11 ft | Quote | ||
| 12 ft | Quote | ||
| 13 ft | Quote | ||
| 14 ft | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
