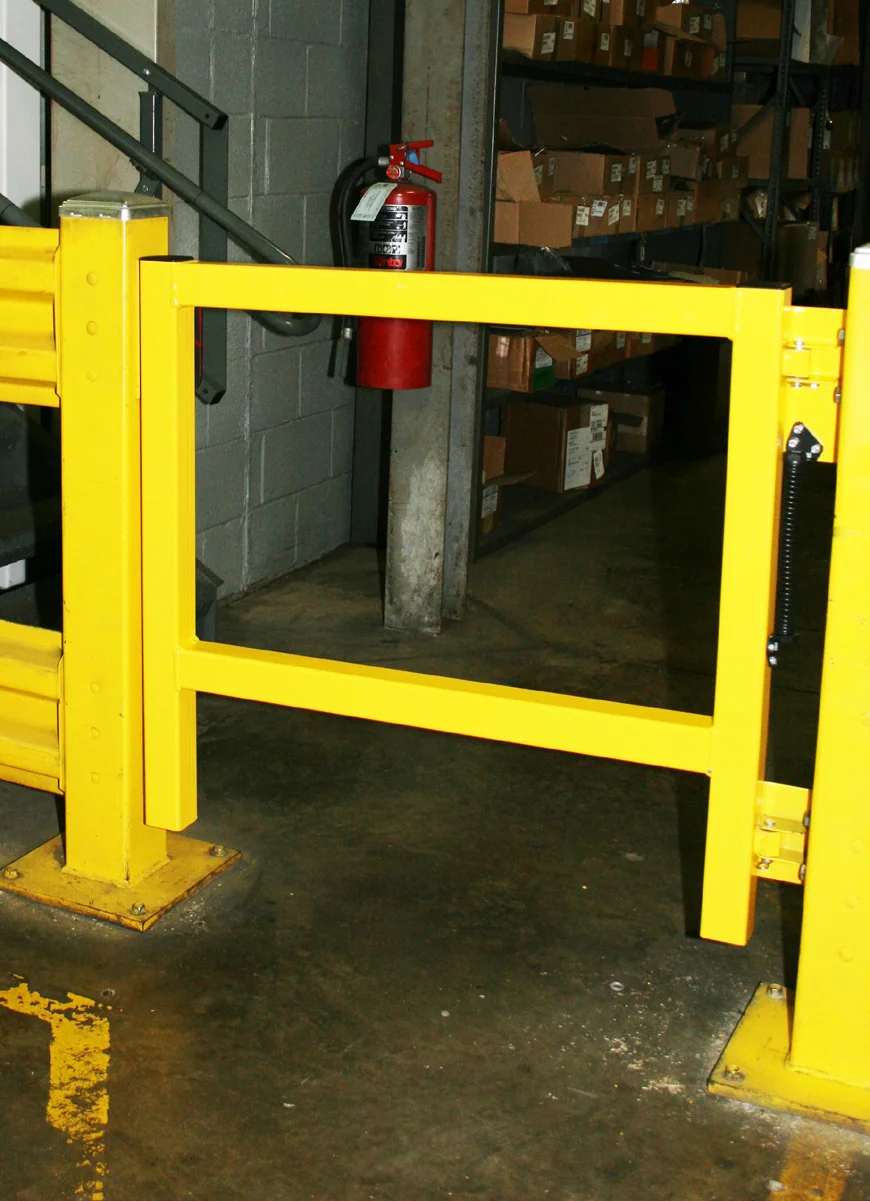

SaferGate Pedestrian Crossing Gate

A bolted steel industrial guard rail that protects machinery, walkways, in-plant offices, personnel and inventory from forklift damage. Four-way posts are punched on all sides to build any barrier shape, and the system is powder coated safety yellow for maximum visibility.

• Post: 4-3/4″ × 4-3/4″ × 3/16″-thick, 42″ or 18″ high
• Footplate: 10″ × 10″ × 1/2″-thick with (4) 7/8″-dia. anchor holes
• Rail: 12″ high × 1/8″-thick, double-ribbed; 2′–10′ on post centers
• Impact rating: 12,000 lbs. at 4 mph

Heavy structural-steel angle rail that bolts flat to the floor to keep forklifts and AGVs on line down aisles and guide them safely into dock approaches, past walls, and along equipment runs. All-welded gussets and radiused entry curves deflect wheel contact and shield rack ends and structural legs from over-steer. Surface-mounted on regular anchor centers with no concrete work · powder-coated safety yellow.

• Rail: 5″-tall structural steel angle (also 3″×4″ / 4″×4″)
• Material: 5/16″-thick steel · ~8.4 lb/ft
• Standard lengths: 9.5 ft and 10 ft sections, coupled for continuous runs
• Install: Floor-anchored, holes on ~24″ centers; entry guide curves

A low barrier that mounts flush to the floor and stands 12″ tall, so forks and pushed product cannot slide under or through it. Use it as a wall guard, around conveyors and machinery, or as a pallet stop where a full-height guard rail is more than the job needs.

• Height: 12″
• Mounting: Flush to the floor
• Use as: Wall guard · conveyor and machine guard · pallet stop
