Standard Duty Guardrail

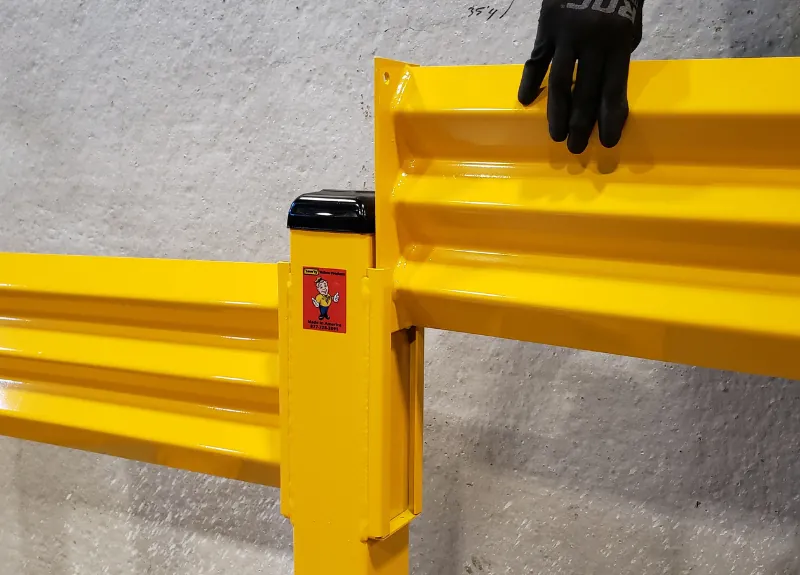

The workhorse tier, rated by the manufacturer at 10,000 lbs at 5 mph, in 10-gauge steel on 4″ × 4″ posts with 10″ × 10″ × 1/2″ base plates. Post heights of 18″, 26″ and 42″ cover everything from low equipment guarding to a full-height barrier at OSHA rail height. All-welded drop-in sleeves mean no brackets or bolts between rail and post.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Rails and posts are ordered separately — both are in the table. Rail lengths are centre-to-centre of posts; every post sits on a 10″ × 10″ × 1/2″ base plate, and "double" posts are the 42″ two-rail versions. A straight run needs one more post than rails; corners, ends and tees are counted on top.
| Type | Rail Length | Height | Price | Qty | |
|---|---|---|---|---|---|
| Rail | 2 ft | — | Quote | ||
| Rail | 3 ft | — | Quote | ||
| Rail | 4 ft | — | Quote | ||
| Rail | 5 ft | — | Quote | ||
| Rail | 6 ft | — | Quote | ||
| Rail | 7 ft | — | Quote | ||
| Rail | 8 ft | — | Quote | ||
| Rail | 9 ft | — | Quote | ||
| Rail | 10 ft | — | Quote | ||
| Corner post | — | 18″ | Quote | ||
| Corner post | — | 26″ | Quote | ||
| Corner post, double | — | 42″ | Quote | ||
| End post | — | 18″ | Quote | ||
| End post | — | 26″ | Quote | ||
| End post, double | — | 42″ | Quote | ||
| End post, double offset | — | 42″ | Quote | ||
| Inline post | — | 18″ | Quote | ||
| Inline post | — | 26″ | Quote | ||
| Inline post, double | — | 42″ | Quote | ||
| Tee post, double | — | 42″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
Related products
A bolted steel industrial guard rail that protects machinery, walkways, in-plant offices, personnel and inventory from forklift damage. Four-way posts are punched on all sides to build any barrier shape, and the system is powder coated safety yellow for maximum visibility.
- Post: 4-3/4″ × 4-3/4″ × 3/16″-thick, 42″ or 18″ high
- Footplate: 10″ × 10″ × 1/2″-thick with (4) 7/8″-dia. anchor holes
- Rail: 12″ high × 1/8″-thick, double-ribbed; 2′–10′ on post centers
- Impact rating: 12,000 lbs. at 4 mph
Heavy structural-steel angle rail that bolts flat to the floor to keep forklifts and AGVs on line down aisles and guide them safely into dock approaches, past walls, and along equipment runs. All-welded gussets and radiused entry curves deflect wheel contact and shield rack ends and structural legs from over-steer. Surface-mounted on regular anchor centers with no concrete work · powder-coated safety yellow.
- Rail: 5″-tall structural steel angle (also 3″×4″ / 4″×4″)
- Material: 5/16″-thick steel · ~8.4 lb/ft
- Standard lengths: 9.5 ft and 10 ft sections, coupled for continuous runs
- Install: Floor-anchored, holes on ~24″ centers; entry guide curves
A low barrier that mounts flush to the floor and stands 12″ tall, so forks and pushed product cannot slide under or through it. Use it as a wall guard, around conveyors and machinery, or as a pallet stop where a full-height guard rail is more than the job needs.
- Height: 12″
- Mounting: Flush to the floor
- Use as: Wall guard · conveyor and machine guard · pallet stop
