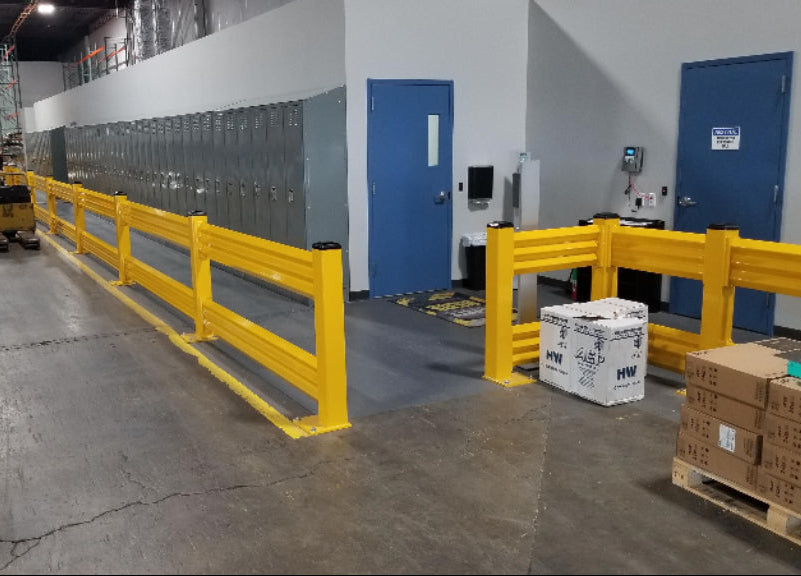

Heavy Duty Guardrail
The heaviest tier, rated by the manufacturer at 12,000 lbs at 5 mph, stepping up to 5″ square posts on 10″ × 10″ × 5/8″ base plates. Specified where a loaded counterbalance truck could reach the barrier at speed — main drive aisles, switchgear and transformer rooms, and the approach to occupied in-plant offices. Rails remain 10-gauge and interchange with the standard tier.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Rails and posts are ordered separately — both are in the table. The ribbed rails are the same ones used on the standard line; the 12,000 lb rating comes from the 5″ post on its 10″ × 10″ × 5/8″ base plate. "Double" posts are the 42″ two-rail versions. No tee post is published for this line.
| Type | Rail Length | Height | Price | Qty | |
|---|---|---|---|---|---|
| Rail | 2 ft | — | Quote | ||
| Rail | 3 ft | — | Quote | ||
| Rail | 4 ft | — | Quote | ||
| Rail | 5 ft | — | Quote | ||
| Rail | 6 ft | — | Quote | ||
| Rail | 7 ft | — | Quote | ||
| Rail | 8 ft | — | Quote | ||
| Rail | 9 ft | — | Quote | ||
| Rail | 10 ft | — | Quote | ||
| Corner post | — | 18″ | Quote | ||
| Corner post, double | — | 42″ | Quote | ||
| End post | — | 18″ | Quote | ||
| End post, double | — | 42″ | Quote | ||
| Inline post | — | 18″ | Quote | ||
| Inline post, double | — | 42″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
