Structural Heavy-Duty Guardrail

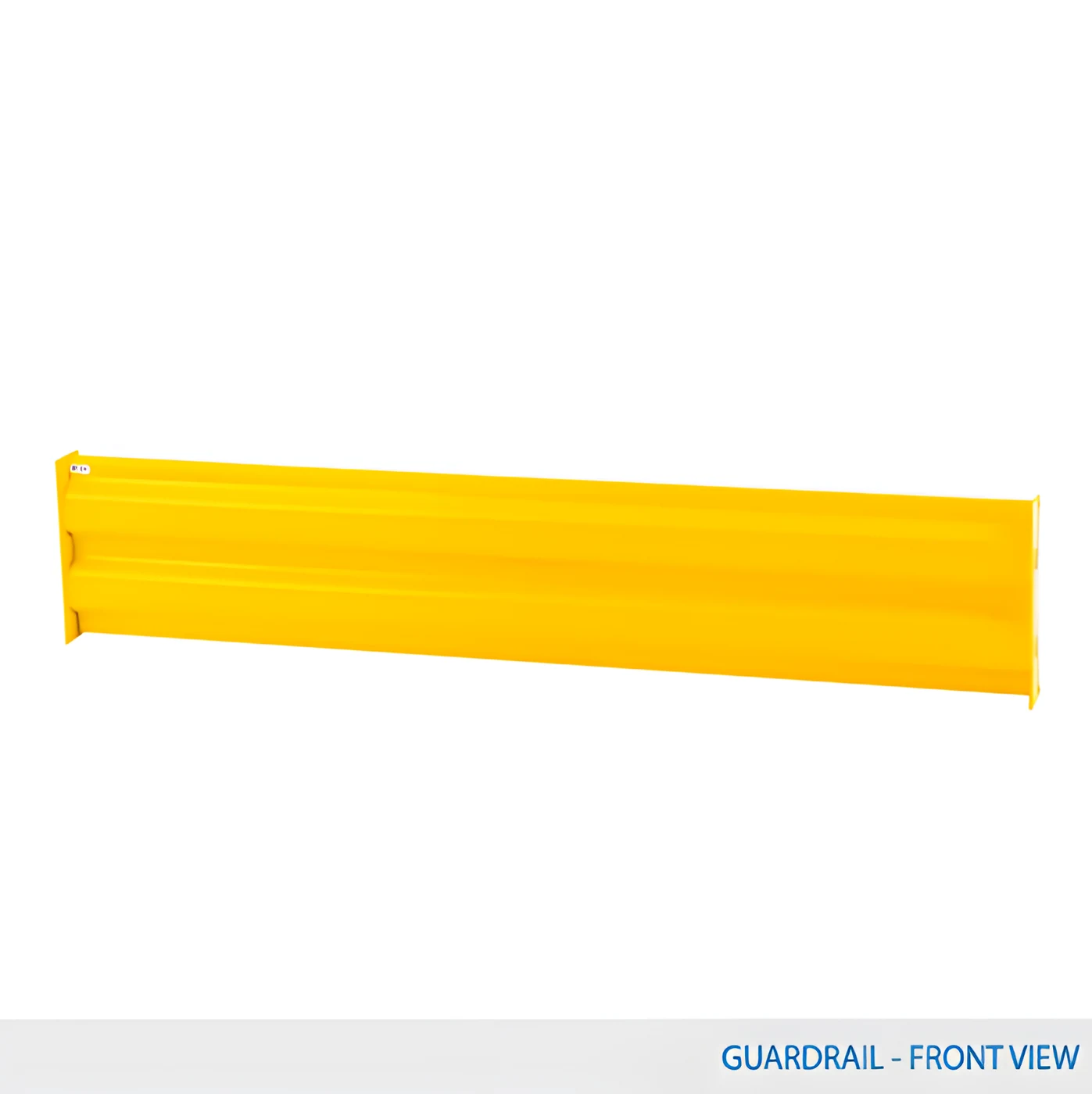

A bolted structural guardrail in 13-gauge roll-formed steel to ASTM A1011 Grade 45, rated by the manufacturer at 10,000 lbs at 4 mph when properly installed. Unlike the drop-in systems it bolts rail to post through twin 12.5″ × 3″ mounting plates, which makes the joint itself load-bearing rather than relying on a sleeve. Rails span 12″ to 108″ centre-to-centre; double-rail columns are 44″ high on 10″ × 10″ × 1/2″ base plates.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Rails and columns are ordered separately — both are in the table. Rail spans are centre-to-centre of columns, published by the maker in 12″ steps from 12″ to 108″. Columns sit on 10″ × 10″ × 1/2″ base plates and bolt to the rail through twin 12.5″ × 3″ plates.
| Type | Rail Length | Height | Price | Qty | |
|---|---|---|---|---|---|
| Rail | 1 ft | — | Quote | ||
| Rail | 2 ft | — | Quote | ||
| Rail | 3 ft | — | Quote | ||
| Rail | 4 ft | — | Quote | ||
| Rail | 5 ft | — | Quote | ||
| Rail | 6 ft | — | Quote | ||
| Rail | 7 ft | — | Quote | ||
| Rail | 8 ft | — | Quote | ||
| Rail | 9 ft | — | Quote | ||
| Column, single rail | — | 18″ | Quote | ||
| Column, double rail | — | 44″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
Related products
A bolted steel industrial guard rail that protects machinery, walkways, in-plant offices, personnel and inventory from forklift damage. Four-way posts are punched on all sides to build any barrier shape, and the system is powder coated safety yellow for maximum visibility.
- Post: 4-3/4″ × 4-3/4″ × 3/16″-thick, 42″ or 18″ high
- Footplate: 10″ × 10″ × 1/2″-thick with (4) 7/8″-dia. anchor holes
- Rail: 12″ high × 1/8″-thick, double-ribbed; 2′–10′ on post centers
- Impact rating: 12,000 lbs. at 4 mph
Heavy structural-steel angle rail that bolts flat to the floor to keep forklifts and AGVs on line down aisles and guide them safely into dock approaches, past walls, and along equipment runs. All-welded gussets and radiused entry curves deflect wheel contact and shield rack ends and structural legs from over-steer. Surface-mounted on regular anchor centers with no concrete work · powder-coated safety yellow.
- Rail: 5″-tall structural steel angle (also 3″×4″ / 4″×4″)
- Material: 5/16″-thick steel · ~8.4 lb/ft
- Standard lengths: 9.5 ft and 10 ft sections, coupled for continuous runs
- Install: Floor-anchored, holes on ~24″ centers; entry guide curves
A low barrier that mounts flush to the floor and stands 12″ tall, so forks and pushed product cannot slide under or through it. Use it as a wall guard, around conveyors and machinery, or as a pallet stop where a full-height guard rail is more than the job needs.
- Height: 12″
- Mounting: Flush to the floor
- Use as: Wall guard · conveyor and machine guard · pallet stop
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
