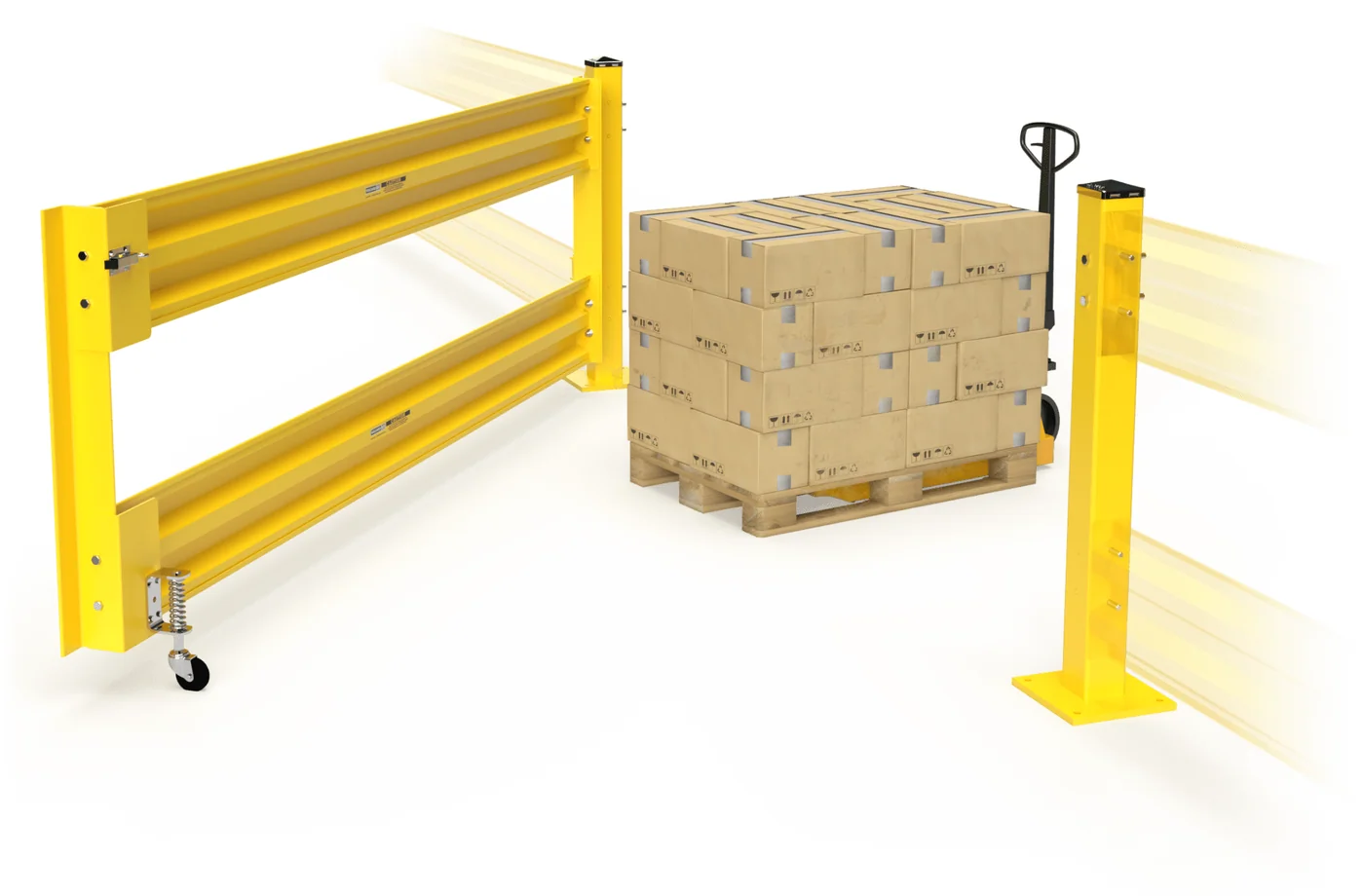

Wilgard MT Guard Rail Gate
A pass-through gate built from Wilgard MT guard rail, giving a run of rail a forklift or walk-through access point that matches the rest of it, on a new run or an existing MT system. The gate rides on a spring-loaded caster and latches shut when not in use. The maker says the gate has been tested to its 10,000 lb "industry standard" impact rating.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
A gate needs the gate kit, two rails and two 44″ columns. Gate rails are sized to the opening you need, and the maker supplies the matching lengths, so tell us the clear opening rather than picking a rail length.
| Type | Rail Length | Height | Price | Qty | |
|---|---|---|---|---|---|
| Gate kit (needs 2 rails + 2 columns) | — | — | Quote | ||
| Double-rail column | — | 44″ | Quote | ||
| Gate rail | 2 ft | — | Quote | ||
| Gate rail | 3 ft | — | Quote | ||
| Gate rail | 4 ft | — | Quote | ||
| Gate rail | 5 ft | — | Quote | ||
| Gate rail | 6 ft | — | Quote | ||
| Gate rail | 7 ft | — | Quote | ||
| Gate rail | 8 ft | — | Quote | ||
| Gate rail | 9 ft | — | Quote | ||
| Gate rail | 10 ft | — | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
Related products
A bolted steel industrial guard rail that protects machinery, walkways, in-plant offices, personnel and inventory from forklift damage. Four-way posts are punched on all sides to build any barrier shape, and the system is powder coated safety yellow for maximum visibility.
- Post: 4-3/4″ × 4-3/4″ × 3/16″-thick, 42″ or 18″ high
- Footplate: 10″ × 10″ × 1/2″-thick with (4) 7/8″-dia. anchor holes
- Rail: 12″ high × 1/8″-thick, double-ribbed; 2′–10′ on post centers
- Impact rating: 12,000 lbs. at 4 mph
Heavy structural-steel angle rail that bolts flat to the floor to keep forklifts and AGVs on line down aisles and guide them safely into dock approaches, past walls, and along equipment runs. All-welded gussets and radiused entry curves deflect wheel contact and shield rack ends and structural legs from over-steer. Surface-mounted on regular anchor centers with no concrete work · powder-coated safety yellow.
- Rail: 5″-tall structural steel angle (also 3″×4″ / 4″×4″)
- Material: 5/16″-thick steel · ~8.4 lb/ft
- Standard lengths: 9.5 ft and 10 ft sections, coupled for continuous runs
- Install: Floor-anchored, holes on ~24″ centers; entry guide curves
A low barrier that mounts flush to the floor and stands 12″ tall, so forks and pushed product cannot slide under or through it. Use it as a wall guard, around conveyors and machinery, or as a pallet stop where a full-height guard rail is more than the job needs.
- Height: 12″
- Mounting: Flush to the floor
- Use as: Wall guard · conveyor and machine guard · pallet stop
Let our engineers spec it.
Send a rack drawing or a photo. We'll return a per-bay layout with quantities, install notes, and a detailed quote.
