Wilgard MT Guard Rail

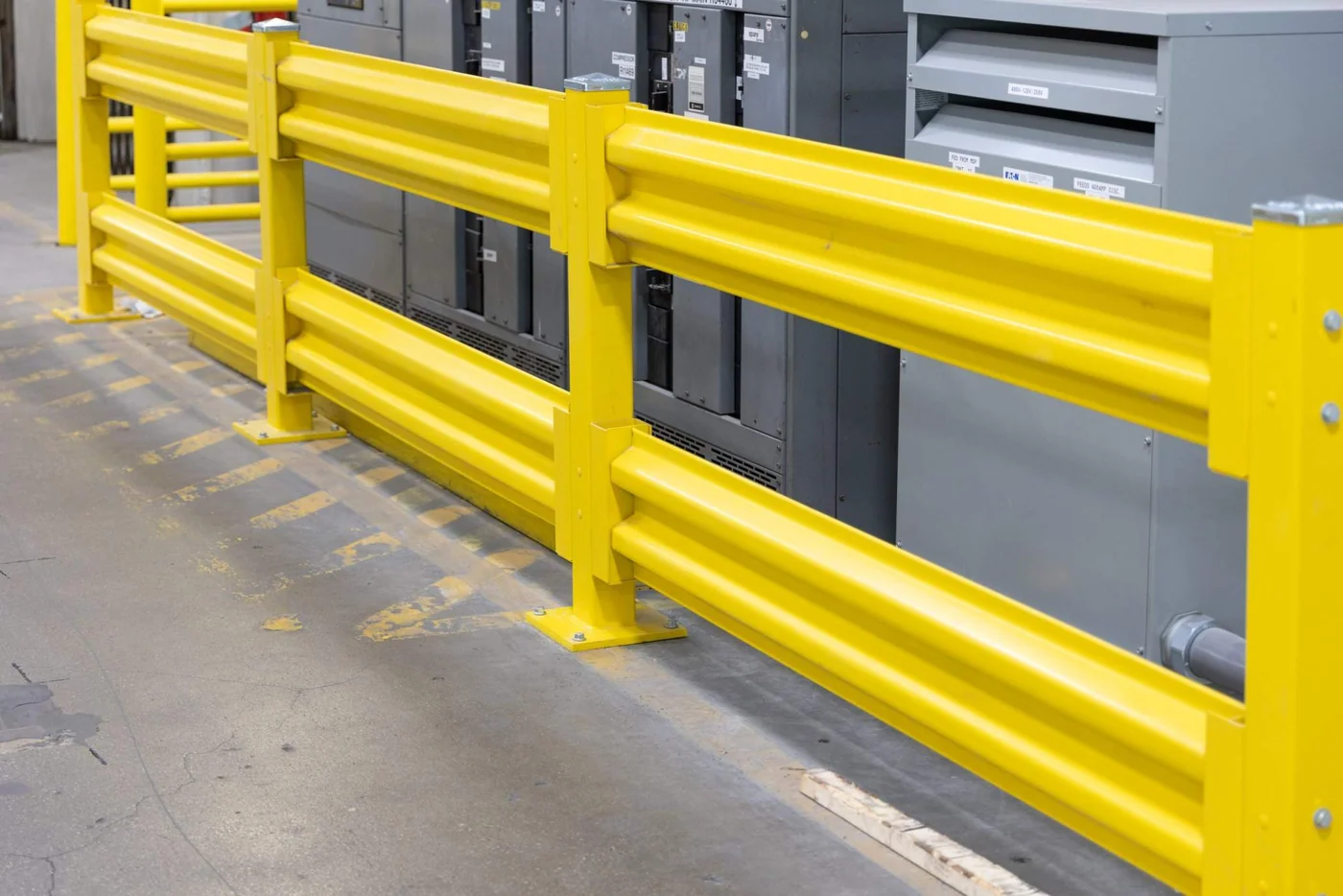

The mid-tier Wilgard bolted steel guard rail for warehouse and DC aisles, rated by its maker at 10,000 lbs at 4 mph on a 10 ft rail. A 4″ × 4″ tube column on a 10″ × 10″ × 5/8″ base plate carries 12″ corrugated 12-gauge rails in single, double or triple runs, and every rail and column ships with its own hardware and wedge anchors. Lift-out rails use the same column, so a section can come out for equipment access.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Rails and columns are ordered separately, and each comes with its own hardware and anchors. Rail length is the column centre-to-centre spacing; a straight run needs one more column than rails. Lift-out is available for all rail lengths (the table lists the maker’s stock lift-out rails); each lift-out section adds 2-3/4″. Triple-rail runs are bolted only.
| Type | Rail Length | Height | Price | Qty | |
|---|---|---|---|---|---|
| Rail, bolted (WM2) | 2 ft | — | Quote | ||
| Rail, bolted (WM3) | 3 ft | — | Quote | ||
| Rail, bolted (WM4) | 4 ft | — | Quote | ||
| Rail, bolted (WM5) | 5 ft | — | Quote | ||
| Rail, bolted (WM6) | 6 ft | — | Quote | ||
| Rail, bolted (WM7) | 7 ft | — | Quote | ||
| Rail, bolted (WM8) | 8 ft | — | Quote | ||
| Rail, bolted (WM9) | 9 ft | — | Quote | ||
| Rail, bolted (WM10) | 10 ft | — | Quote | ||
| Rail, lift-out (WM4L) | 4 ft | — | Quote | ||
| Rail, lift-out (WM6L) | 6 ft | — | Quote | ||
| Rail, lift-out (WM8L) | 8 ft | — | Quote | ||
| Rail, lift-out (WM10L) | 10 ft | — | Quote | ||
| Column, single rail (WCM18) | — | 18″ | Quote | ||
| Column, double rail (WCM44) | — | 44″ | Quote | ||
| Column, triple rail (WCTM44) | — | 44″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
