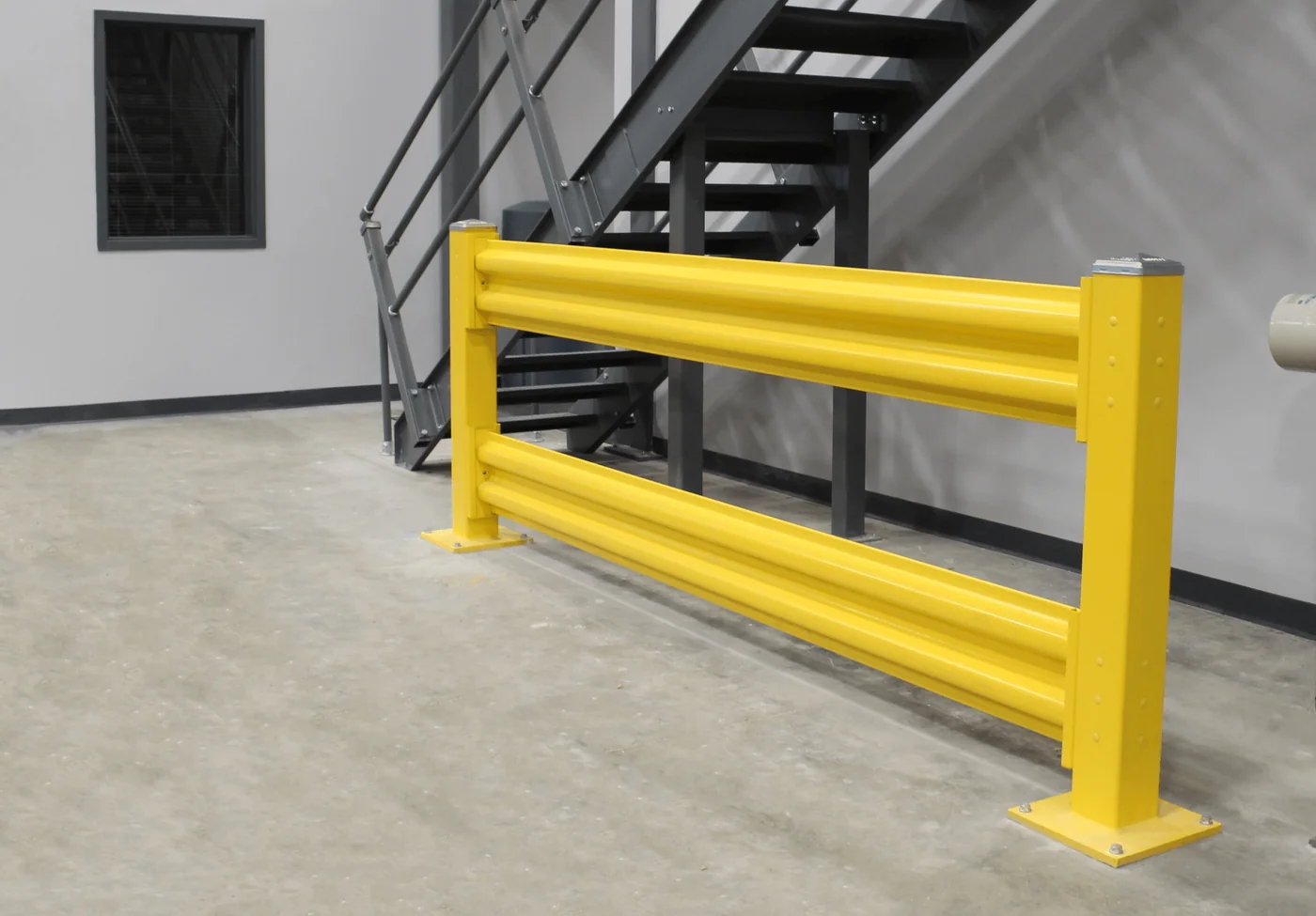

Wilgard XT Guard Rail
The heaviest Wilgard guard rail, rated by its maker at 13,000 lbs at 4 mph on a 10 ft rail, with a 10″ safe zone behind it. Compared with MT it steps up to 5″ × 5″ columns, 12″ × 12″ × 3/4″ base plates and 11-gauge rails. Single, double or triple runs, bolted or lift-out, with hardware and anchors included.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Wilgard guards highlight reel
Technical Specifications
Available Sizes & Parts
Rails and columns are ordered separately, and each comes with its own hardware and anchors. Rail length is the column centre-to-centre spacing; a straight run needs one more column than rails. Lift-out is available for all rail lengths (the table lists the maker’s stock lift-out rails); each lift-out section adds 1″. Triple-rail runs are bolted only.
| Type | Rail Length | Height | Price | Qty | |
|---|---|---|---|---|---|
| Rail, bolted (WG2) | 2 ft | — | Quote | ||
| Rail, bolted (WG3) | 3 ft | — | Quote | ||
| Rail, bolted (WG4) | 4 ft | — | Quote | ||
| Rail, bolted (WG5) | 5 ft | — | Quote | ||
| Rail, bolted (WG6) | 6 ft | — | Quote | ||
| Rail, bolted (WG7) | 7 ft | — | Quote | ||
| Rail, bolted (WG8) | 8 ft | — | Quote | ||
| Rail, bolted (WG9) | 9 ft | — | Quote | ||
| Rail, bolted (WG10) | 10 ft | — | Quote | ||
| Rail, lift-out (WG4L) | 4 ft | — | Quote | ||
| Rail, lift-out (WG6L) | 6 ft | — | Quote | ||
| Rail, lift-out (WG8L) | 8 ft | — | Quote | ||
| Rail, lift-out (WG10L) | 10 ft | — | Quote | ||
| Column, single rail (WC18) | — | 18″ | Quote | ||
| Column, double rail (WC44) | — | 44″ | Quote | ||
| Column, triple rail (WCT44) | — | 44″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
