EdgeGard Straight Dock Gate
A counterbalanced straight rail that lifts up out of the way of a standard dock door and drops back down to close it off. Closed, the top rail sits 42″ off the floor and its maker rates it for 200 lbs of top-rail pressure. It comes in 8 ft and 10 ft clear widths. Because the rail lifts straight up, check the headroom: the 10 ft gate needs about 167″ when raised.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.

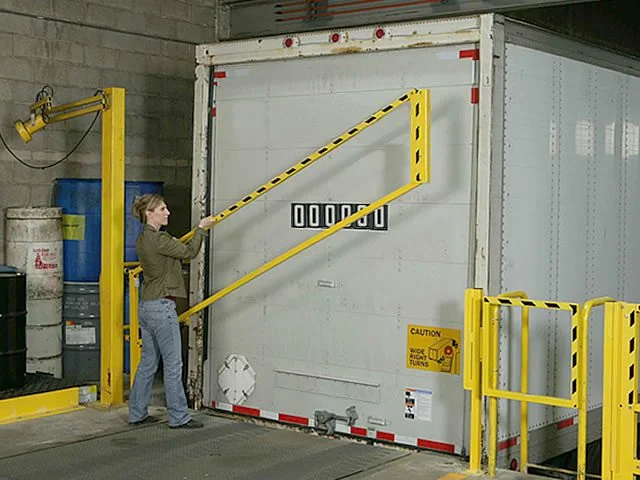

EdgeGard straight-rail dock gate
Technical Specifications
Available Sizes & Parts
Order by the clear opening, and check the headroom first: the raised gate needs 143″ (8 ft) or 167″ (10 ft). If that won't fit under the door, look at the folding gate. Other sizes on request.
| Clear Opening | Price | Qty | |
|---|---|---|---|
| 8 ft | Quote | ||
| 10 ft | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
Related products
An all-welded steel gate that pivots across the dock opening when no trailer is docked, standing 42″ high so it reads as a barrier rather than a trip rail. It mounts over a 6″ × 42″ bollard, which means the bollard takes any impact instead of the gate hinge. Supplied in 5 ft to 14 ft widths in 1 ft increments, single or paired for wide openings.
- Height: 42″ (OSHA guardrail height)
- Widths: 5 ft to 14 ft in 1 ft increments
- Construction: All-welded steel
- Mounting: Over a 6″ × 42″ bollard
The heaviest barrier in the dock range, rated by the manufacturer at 30,000 lbs at 4 mph — an order of magnitude above interior guardrail, because a loaded truck reversing at a dock edge carries far more energy than an aisle strike. Built on 5″ steel posts with 12″ × 12″ × 5/8″ offset base plates and 1″ pins, with a sliding locking plate and no pinch points. Clearances of 8, 10 and 12 ft.
- Impact rating: 30,000 lbs at 4 mph (manufacturer-stated)
- Height: 42″
- Posts: 5″ steel on 12″ × 12″ × 5/8″ offset base plates
- Clearances: 8 ft · 10 ft · 12 ft
A vertical-lift barrier that rises straight up rather than swinging, for openings where there is no floor space for a gate arc. Air assist takes the weight so it can be raised one-handed, and aluminium rails keep the moving section light while the carbon steel posts carry the load. The 42″ top rail meets OSHA guardrail height when lowered.
- Action: Vertical lift, air-assisted
- Posts: Carbon steel, 4.5″ × 2″
- Rails: Aluminium, 1.5″
- Top rail: 42″ (OSHA guardrail height)
