ProDeck50

A patented punched steel deck that drops onto step beams flush, with no waterfall edge to block labeling or bar codes on the beam face. Repeating corrugations give uniform strength across the shelf while the punched openings let sprinkler water, air and light pass to lower levels. The manufacturer holds an FM Approvals certificate for Punch Deck under Class 6914, which tests a deck as equivalent to 70% open area for sprinkler design.

• Open surface area: 50% open for common rack sizes; FM-tested as equal to 70%
• Construction: Punched corrugated steel panels, overlapped at joints · galvanized
• Load capacity: 250 lbs./sq. ft. (Model 301 at 36″) down to 50 lbs./sq. ft. at 72″
• Load basis: UDL · span/180 max deflection · 24 KSI max steel stress

A solid corrugated steel deck with a 1-1/2″ box-rib profile that sits flush with the beam top for a smooth, seamless surface product slides on and off cleanly. Stronger than wood and less costly than both wood and wire, it spans front-to-back in one piece for long or heavy hand-stack loads. Galvanized or painted, sized to fit any standard rack.

• Construction: Solid corrugated steel · 1-1/2″ box rib (B deck)
• Gauge: 18, 20 or 22 gauge
• Load capacity: Up to 666 lbs./sq. ft. (UDL), 18 ga at 36″ depth
• Load basis: UDL at 20,000 PSI steel stress; no deflection limit published

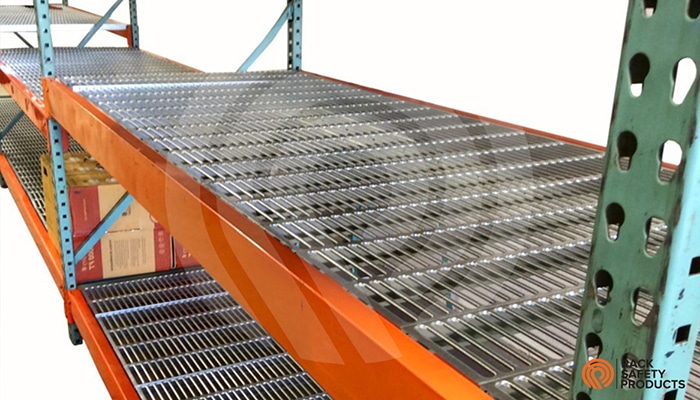

Waterfall wire mesh decking with a flared channel, the flared end is welded to the wire for a clean, snag-free fit. Drops onto rack beams with no hardware, lets light and sprinkler water through, and far outperforms wood for strength and fire-code compliance.

• Mesh pattern: 2-1/2″ × 4″ × 6 ga.
• Mesh options: 1″ × 4″ and 2″ × 4″ also available
• Support channel: 14 or 16 ga.
• Fits: Most pallet rack beams
