Punched Decking

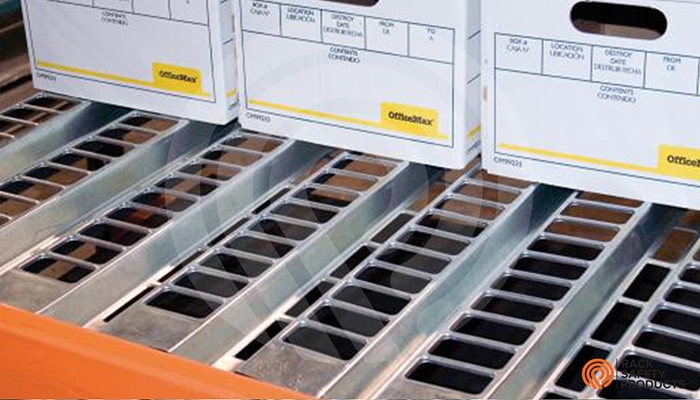

A patented punched steel deck that drops onto step beams flush, with no waterfall edge to block labeling or bar codes on the beam face. Repeating corrugations give uniform strength across the shelf while the punched openings let sprinkler water, air and light pass to lower levels. The manufacturer holds an FM Approvals certificate for Punch Deck under Class 6914, which tests a deck as equivalent to 70% open area for sprinkler design.
Set the quantity on each size you need in the table below and add it to your cart. When you're done, request a quote for everything at once, no pricing until we confirm your specs.
Technical Specifications
Available Sizes & Parts
Pick the rack depth. Panels come 30″ and 36″ wide and are combined to cover your shelf, so width is confirmed with your quote, and the model (101, 201 or 301) is selected against your load at that depth.
| Depth | Price | Qty | |
|---|---|---|---|
| 36″ | Quote | ||
| 42″ | Quote | ||
| 48″ | Quote | ||
| 50″ | Quote | ||
| 54″ | Quote | ||
| 60″ | Quote | ||
| 66″ | Quote | ||
| 72″ | Quote |
Sizes shown are industry-standard. Exact part numbers and pricing are confirmed with your engineered quote.
